Wilwood Red Dynapro 6 Front Brake Package with Drilled 12.19-Inch Rotors and Aluminum Hubs for Listed C-Body Drum Spindles

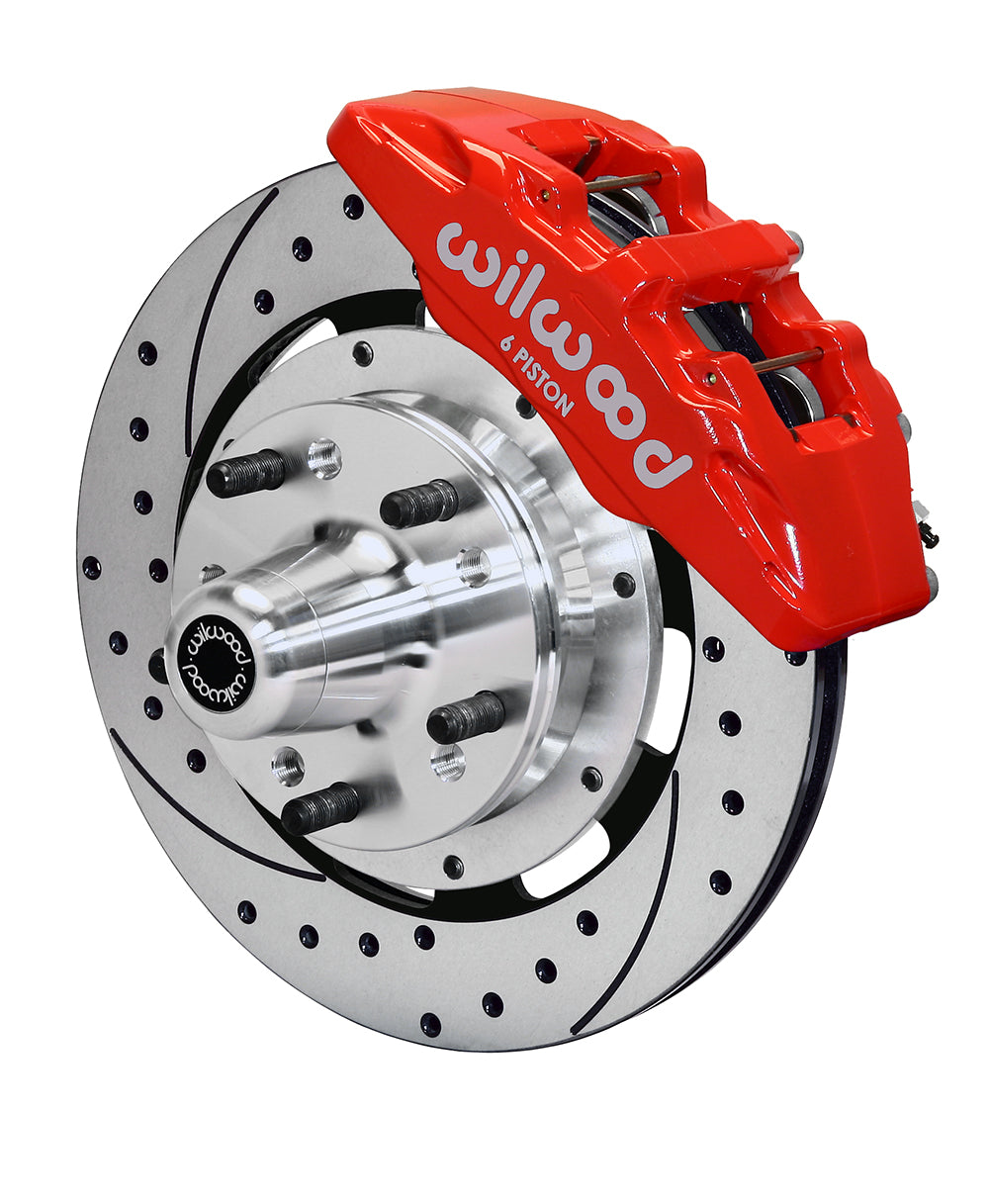

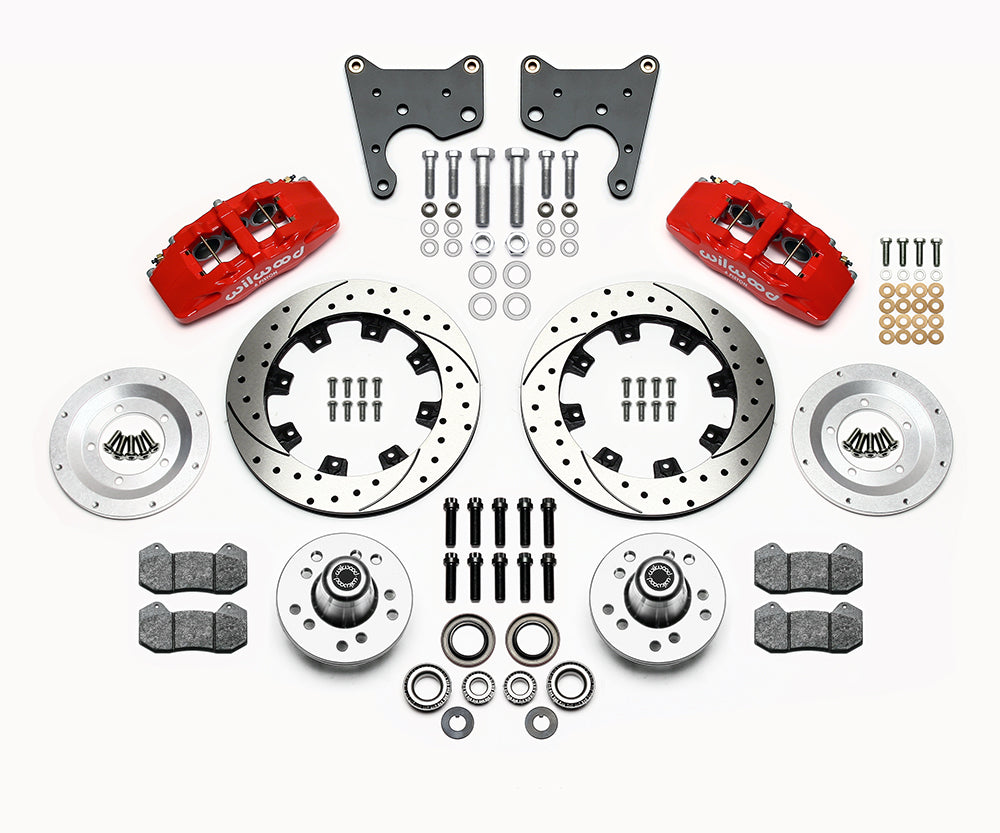

Red six-piston Dynapro calipers clamp SRP rotor rings in this C-body front assembly. The supplied hubs carry the wheel bearings and five-lug interfaces, while rotor adapter plates attach the iron discs without using separate hats. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc braking systems and components for street-performance, motorsport and specialized use. Its calipers, rotors, master cylinders, valves, fittings and brake lines are chosen around the hydraulic, mounting and balance needs of a complete system.

Technical Details

• Manufacturer part number — 140-15198-DR.
• Stated OE wheel-hub offset — +.04 in; verify the documented spindle and reference geometry.
• Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.
• Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor construction and friction surface — Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
• Caliper color, finish and hydraulic inlet — Red; Red Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle — 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Nominal minimum wheel diameter — 15 in; 381 mm; verify full spoke and barrel clearance using the kit drawing.
• Mechanical package contents — separate hubs included; mounting hardware included: Yes; spindles included: No.
• Flexline specification — Line kit included (manufacturer): None; Front line-kit reference: 220-8307.
• Rotor dimensions — outside diameter 12.19 in; 309.63 mm; thickness 0.81 in; 20.57 mm.
• Service caliper assembly — Dynapro 6; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Lug mounting.
• Supplied pad compound — BP-10.
• Wheel-stud thread — 1/2-20.
• Rotor attachment — separate rotor adapter plates and aluminum wheel hubs; no separate rotor hats.

Fitment & Compatibility

Verify exact model and year before comparing the original drum spindle with DS1134. Account for the stated outward hub offset and select the correct wheel bolt circle. The nominal 15-inch wheel minimum is subject to barrel/spoke clearance; hoses are a separate purchase.

Listed model families are 300, New Yorker, Newport, Town & Country, Monaco, Polara, Fury, Fury II, Fury III, VIP, Fury I, Gran Fury; the individual year and brake/spindle conditions remain decisive. Use the fitment table below to confirm year, model, trim and brake or suspension options.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
