Wilwood Drilled Front Disc and Hub Conversion with Black Dynapro Six-Piston Calipers, Specified Mopar C-Body Drum Spindles

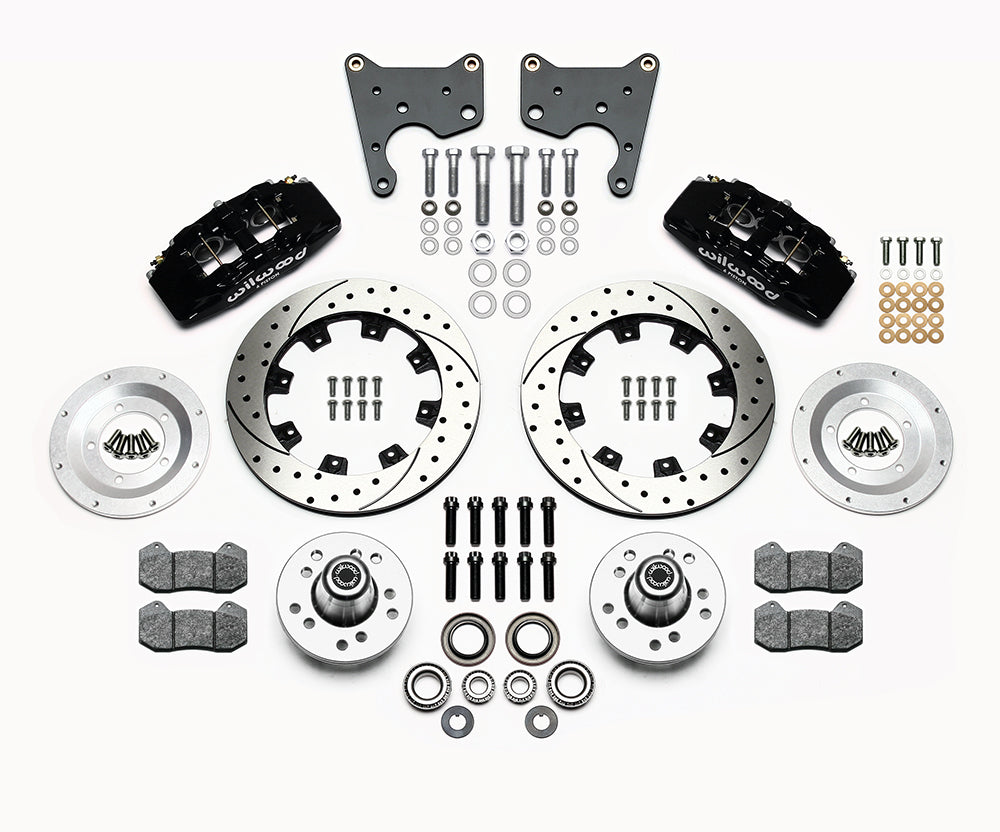

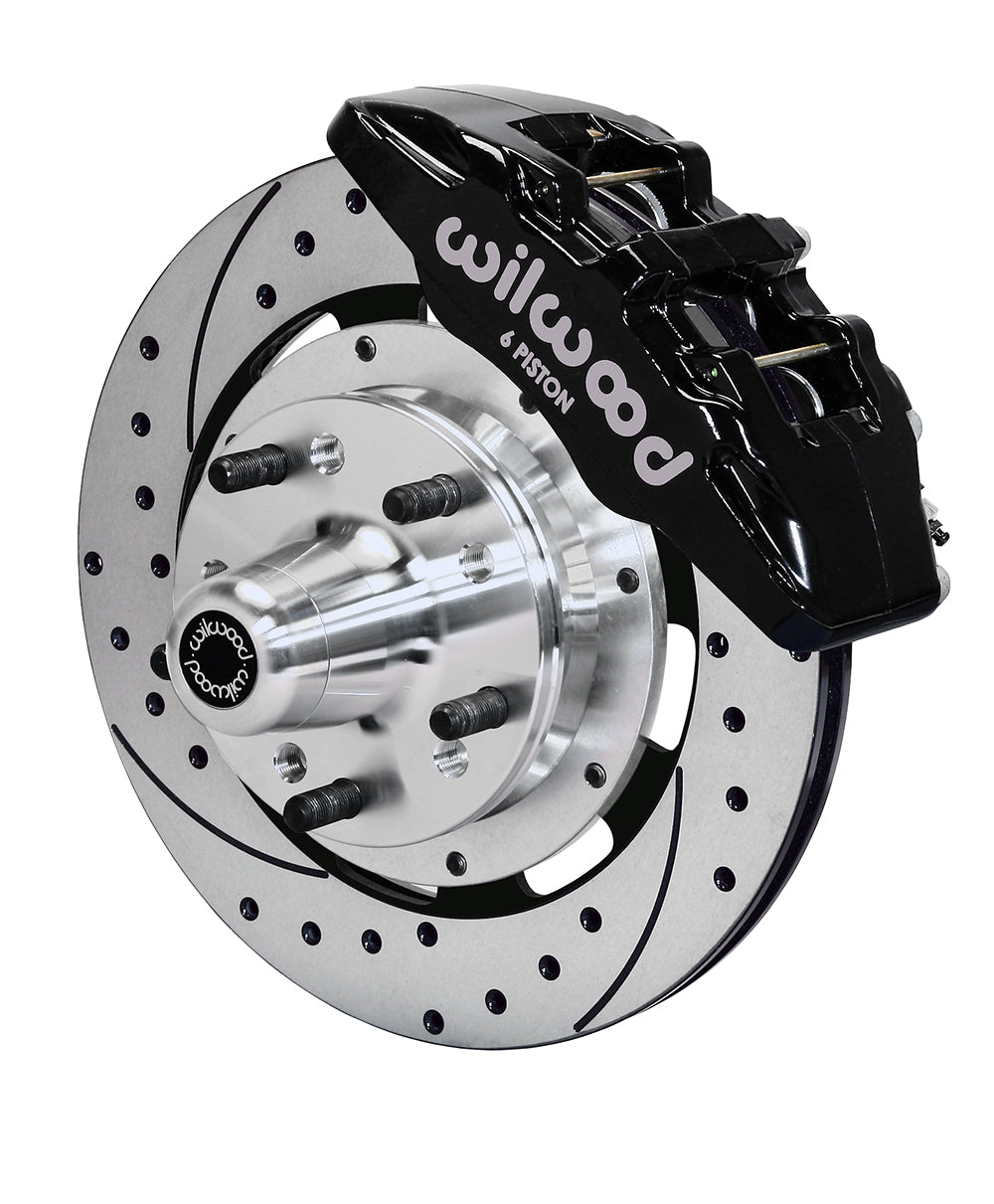

The black SRP package pairs six-piston calipers with drilled-and-slotted 12.19-inch rotor rings. Aluminum hubs and separate rotor adapter plates are included, as are BP-10 pads and the mounting hardware for the documented front spindle. Founded in 1977 by Bill Wood, Wilwood Engineering is now based in Camarillo, California, where its work centers on disc brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized installations; selecting these parts requires considering the complete braking system.

Technical Details

• Manufacturer part number — 140-15198-D.
• Wheel-stud thread — 1/2-20.
• Wheel bolt circle — 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Supplied pad compound — BP-10.
• Caliper color, finish and hydraulic inlet — Black; Black Powder Coat; inlet 1/8-27 NPT.
• Service caliper assembly — Dynapro 6; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Lug mounting.
• Rotor construction and friction surface — Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
• Rotor dimensions — outside diameter 12.19 in; 309.63 mm; thickness 0.81 in; 20.57 mm.
• Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Flexline specification — Line kit included (manufacturer): None; Front line-kit reference: 220-8307.
• Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.
• Mechanical package contents — separate hubs included; mounting hardware included: Yes; spindles included: No.
• Stated OE wheel-hub offset — +.04 in; verify the documented spindle and reference geometry.
• Rotor attachment — separate rotor adapter plates and aluminum wheel hubs; no separate rotor hats.
• Nominal minimum wheel diameter — 15 in; 381 mm; verify full spoke and barrel clearance using the kit drawing.

Fitment & Compatibility

Use the specific Chrysler/Dodge/Plymouth model-year entry and original drum brake condition. Follow DS1134 for alignment and bearing assembly. Verify wheel pattern, the +0.04-inch hub shift and full nominal 15-inch wheel profile, then choose flexlines for the vehicle.

The application list names 300, New Yorker, Newport, Town & Country, Monaco, Polara, Fury, Fury II, Fury III, VIP, Fury I, Gran Fury. Verify the particular year and suspension/brake option for each model. Use the fitment table below to confirm year, model, trim and brake or suspension options.

For a fitment check, give PMB Performance the vehicle details and the actual brake and suspension hardware. Our team has over 20 years of experience working through parts compatibility.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
