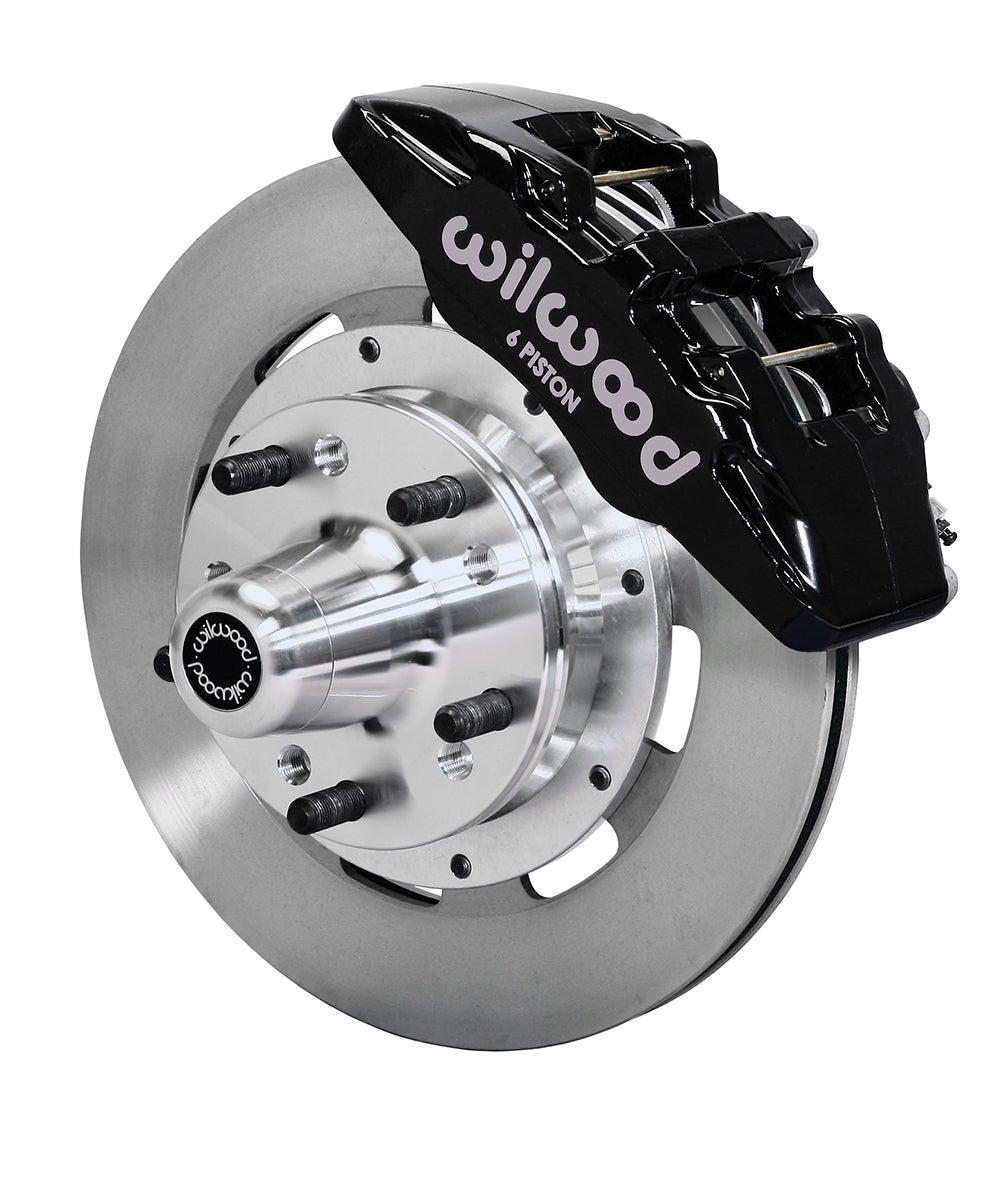

Wilwood Dynapro 6 Front Disc Kit for C-Body Drum Spindles, Selected Chrysler/Dodge/Plymouth 1965–1972, Black Calipers and Plain Rotors

Six-piston Dynapro calipers distinguish this front conversion from the four-piston C-body packages. Plain 12.19-inch iron rings, aluminum hubs and rotor adapter plates provide the specified spindle and wheel interfaces, with BP-10 pads supplied. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, with each part selected to match the complete brake system.

Technical Details

• Manufacturer part number: 140-15198.
• Wheel bolt circle: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Wheel-stud thread: 1/2-20.
• Nominal minimum wheel diameter: 15 in; 381 mm; verify full spoke and barrel clearance using the kit drawing.
• Rotor attachment: separate rotor adapter plates and aluminum wheel hubs; no separate rotor hats.
• Stated OE wheel-hub offset: +.04 in; verify the documented spindle and reference geometry.

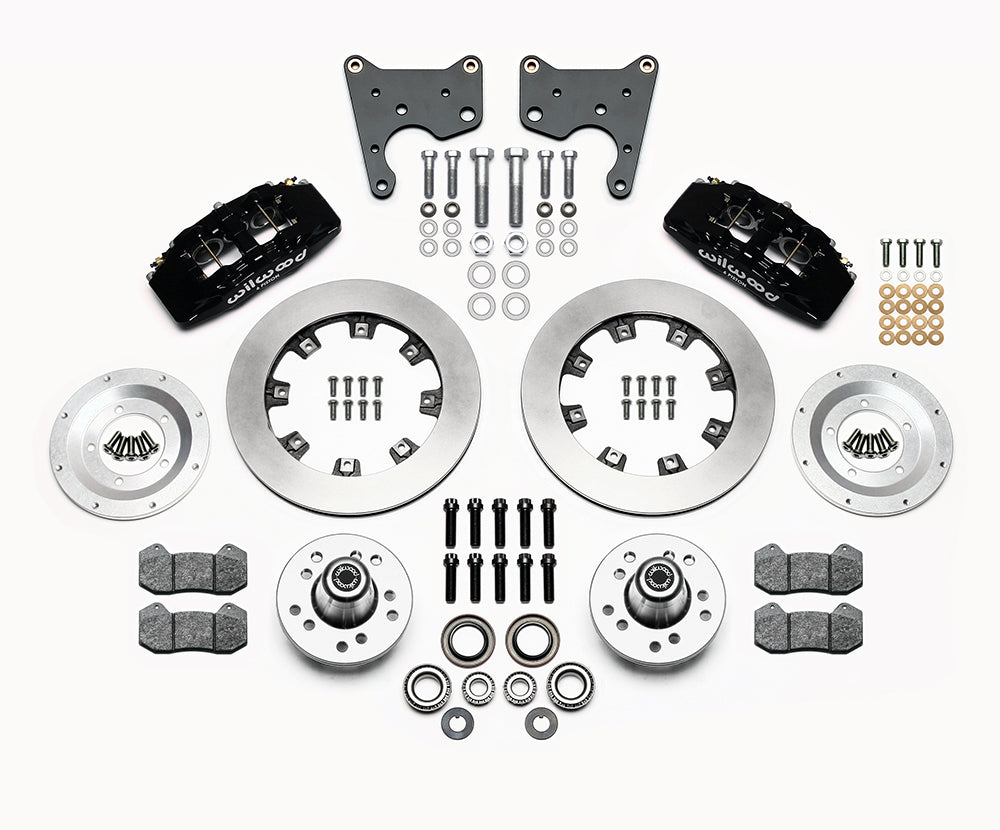

• Mechanical package contents: separate hubs included; mounting hardware included: Yes; spindles included: No.
• Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
• Flexline specification: Line kit included (manufacturer): None; Front line-kit reference: 220-8307.
• Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor dimensions: outside diameter 12.19 in; 309.63 mm; thickness 0.81 in; 20.57 mm.
• Rotor construction and friction surface: Iron; Vented; Plain Face; surface finish: Plain.
• Service caliper assembly: Dynapro 6; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Lug mounting.
• Caliper color, finish and hydraulic inlet: Black; Black Powder Coat; inlet 1/8-27 NPT.
• Supplied pad compound: BP-10.

Fitment & Compatibility

Match the factory drum spindle and individual application below. DS1134 details this six-piston layout. Check +0.04-inch outward hub position, the selected 5 x 4.50 or 5 x 4.75 wheel pattern and 15-inch wheel clearance; hydraulic lines are not included.

Models represented in the detailed applications: 300, New Yorker, Newport, Town & Country, Monaco, Polara, Fury, Fury II, Fury III, VIP, Fury I, Gran Fury. Each is subject to its individual year, trim and brake/suspension condition. Use the fitment table below to confirm year, model, trim and brake or suspension options.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
