Wilwood Front Brake Kit with Plain 12.19-Inch Rotors, Red Dynalite Calipers and Aluminum Hubs for Listed 1965–1972 C-Body Drum Spindles

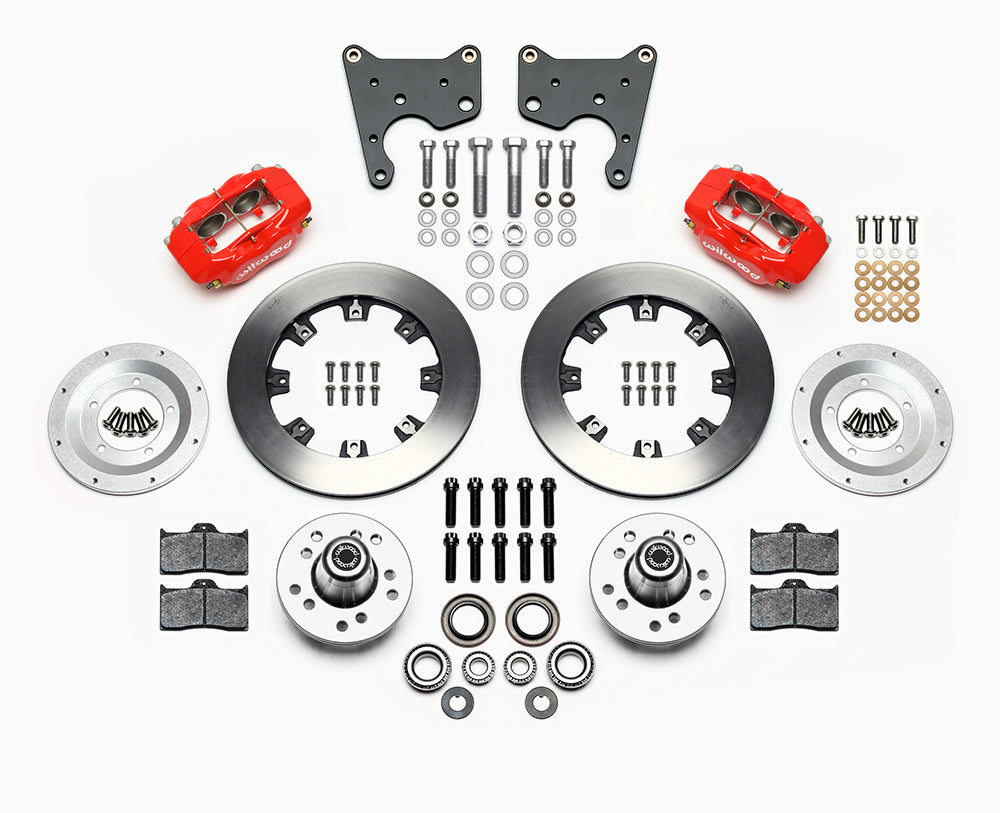

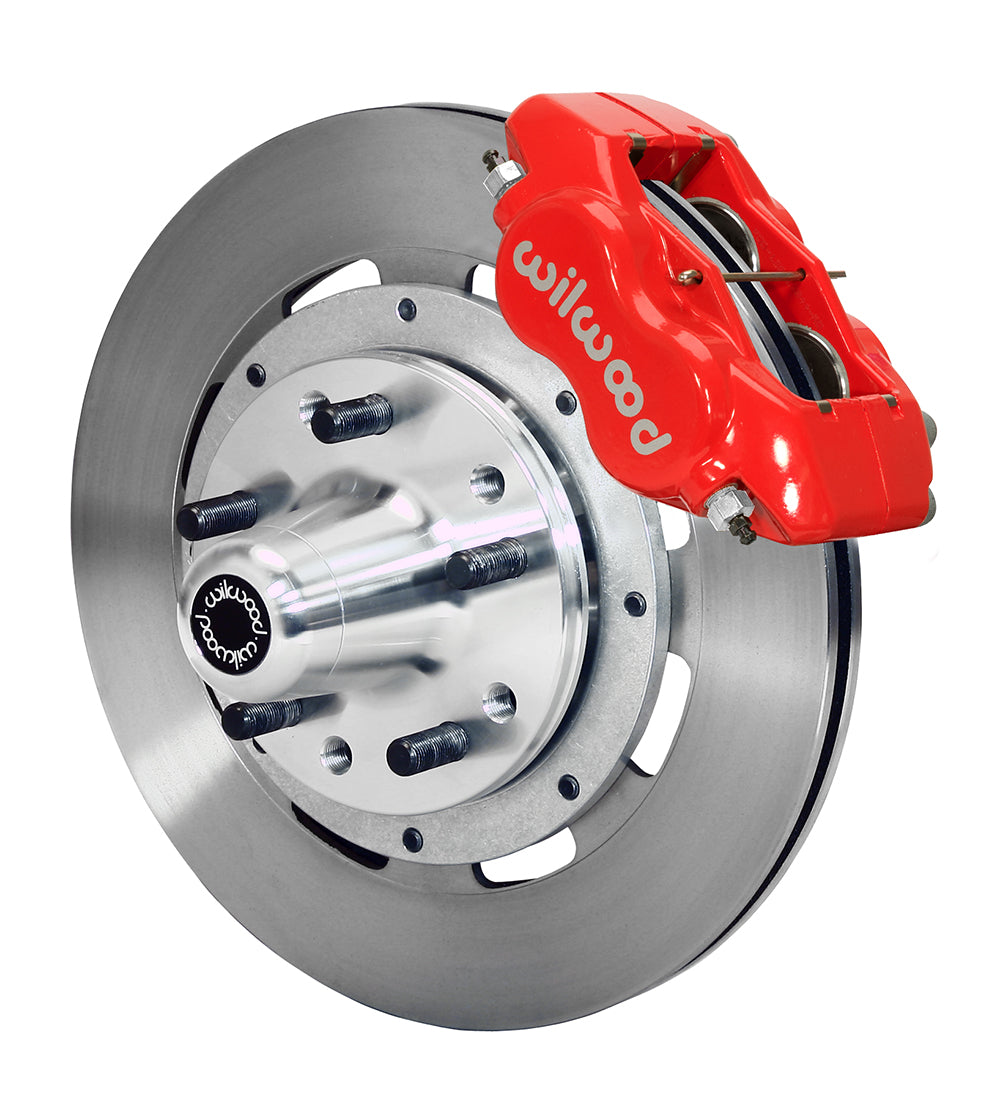

The plain vented-rotor option places red Dynalite calipers over 12.19-inch iron discs in the documented C-body layout. Supplied aluminum hubs use rotor adapter plates rather than hats, and BP-10 pads equip the service calipers. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, with each part selected to match the complete brake system.

Technical Details

• Manufacturer part number — 140-15197-R.
• Mechanical package contents — separate hubs included; mounting hardware included: Yes; spindles included: No.
• Flexline specification — Line kit included (manufacturer): None; Front line-kit reference: 220-8307.
• Rotor dimensions — outside diameter 12.19 in; 309.63 mm; thickness 0.81 in; 20.57 mm.
• Service caliper assembly — Forged Dynalite Internal; 4 pistons in each caliper; Stainless pistons; Forged Aluminium body; Lug mounting.
• Supplied pad compound — BP-10.
• Wheel-stud thread — 1/2-20.
• Rotor attachment — separate rotor adapter plates and aluminum wheel hubs; no separate rotor hats.
• Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.
• Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor construction and friction surface — Iron; Vented; Plain Face; surface finish: Plain.
• Caliper color, finish and hydraulic inlet — Red; Red Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle — 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Nominal minimum wheel diameter — 15 in; 381 mm; verify full spoke and barrel clearance using the kit drawing.
• Stated OE wheel-hub offset — +.04 in; verify the documented spindle and reference geometry.

Fitment & Compatibility

Confirm the original drum spindle and exact Chrysler/Dodge/Plymouth entry, then use DS1133 for installation. Select the correct five-lug hub pattern, measure the outward wheel-position change and compare the 15-inch wheel envelope. Provide the appropriate hydraulic hoses separately.

Listed model families are 300, New Yorker, Newport, Town & Country, Monaco, Polara, Fury, Fury II, Fury III, VIP, Fury I, Gran Fury; the individual year and brake/spindle conditions remain decisive. Use the fitment table below to confirm year, model, trim and brake or suspension options.

With more than 20 years of parts experience, PMB Performance can help review the specified brake arrangement. Include the vehicle year and details of any hub, spindle or suspension changes.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
