Wilwood Black-Caliper Front Conversion with Drilled 12.19-Inch Rotors and Hub Adapters, Specified Mopar C-Body Drum-Spindle Fitments

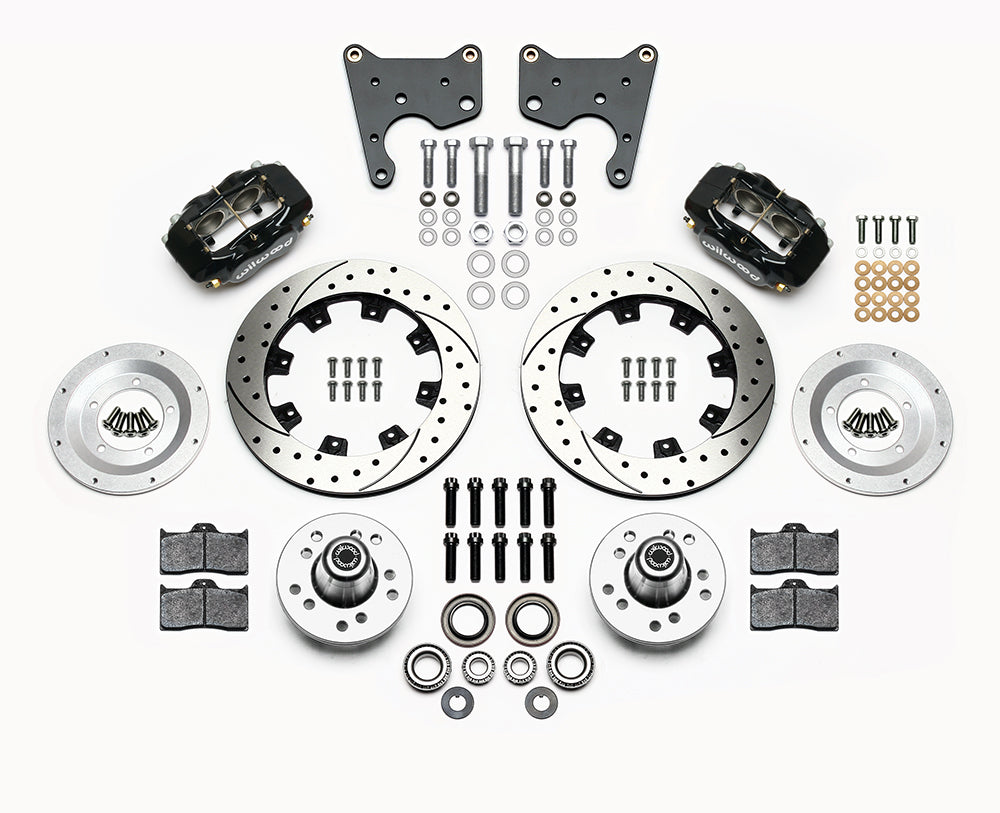

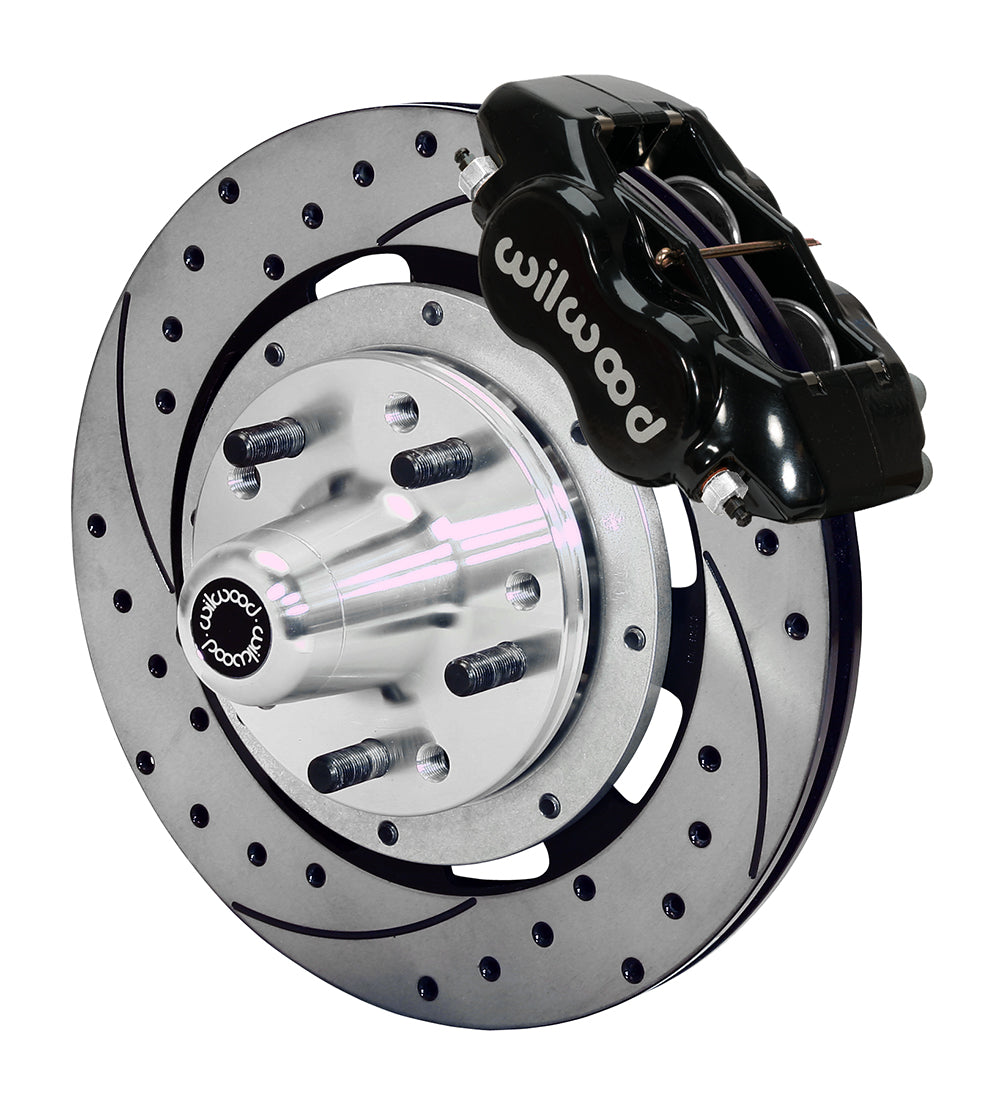

Drilled-and-slotted rotor rings join aluminum hubs through rotor adapter plates in this black front package. Dynalite four-piston calipers use stainless pistons and BP-10 pads, with the bearing and mounting parts provided for the specified drum spindle. Founded by Bill Wood in 1977, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems plus their individual components. Its work serves specialized applications, motorsport and street-performance vehicles, with a range of calipers, brake rotors, master cylinders, valves, fittings and brake lines. A compatible complete system governs the selection of each part.

Technical Details

• Manufacturer part number: 140-15197-D.
• Wheel-stud thread: 1/2-20.
• Nominal minimum wheel diameter: 15 in; 381 mm; verify full spoke and barrel clearance using the kit drawing.
• Rotor attachment: separate rotor adapter plates and aluminum wheel hubs; no separate rotor hats.
• Stated OE wheel-hub offset: +.04 in; verify the documented spindle and reference geometry.
• Mechanical package contents: separate hubs included; mounting hardware included: Yes; spindles included: No.
• Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
• Flexline specification: Line kit included (manufacturer): None; Front line-kit reference: 220-8307.
• Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor dimensions: outside diameter 12.19 in; 309.63 mm; thickness 0.81 in; 20.57 mm.
• Rotor construction and friction surface: Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
• Service caliper assembly: Forged Dynalite Internal; 4 pistons in each caliper; Stainless pistons; Forged Aluminium body; Lug mounting.
• Caliper color, finish and hydraulic inlet: Black; Black Powder Coat; inlet 1/8-27 NPT.
• Supplied pad compound: BP-10.
• Wheel bolt circle: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.

Fitment & Compatibility

Match the model, year and original brake arrangement in the applications below. Follow DS1133, allow for the stated outward hub offset and choose the appropriate wheel circle. Check barrel and spoke clearance with the 15-inch drawing before selecting separate hydraulic lines.

Models represented in the detailed applications: 300, New Yorker, Newport, Town & Country, Monaco, Polara, Fury, Fury II, Fury III, VIP, Fury I, Gran Fury. Each is subject to its individual year, trim and brake/suspension condition. Use the fitment table below to confirm year, model, trim and brake or suspension options.

With more than 20 years of parts experience, PMB Performance can help review the specified brake arrangement. Include the vehicle year and details of any hub, spindle or suspension changes.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
