Wilwood Dynalite Front Brakes for Selected 1965–1972 C-Body Drum Spindles, Black Calipers, Plain 12.19-Inch Rotors and Hubs

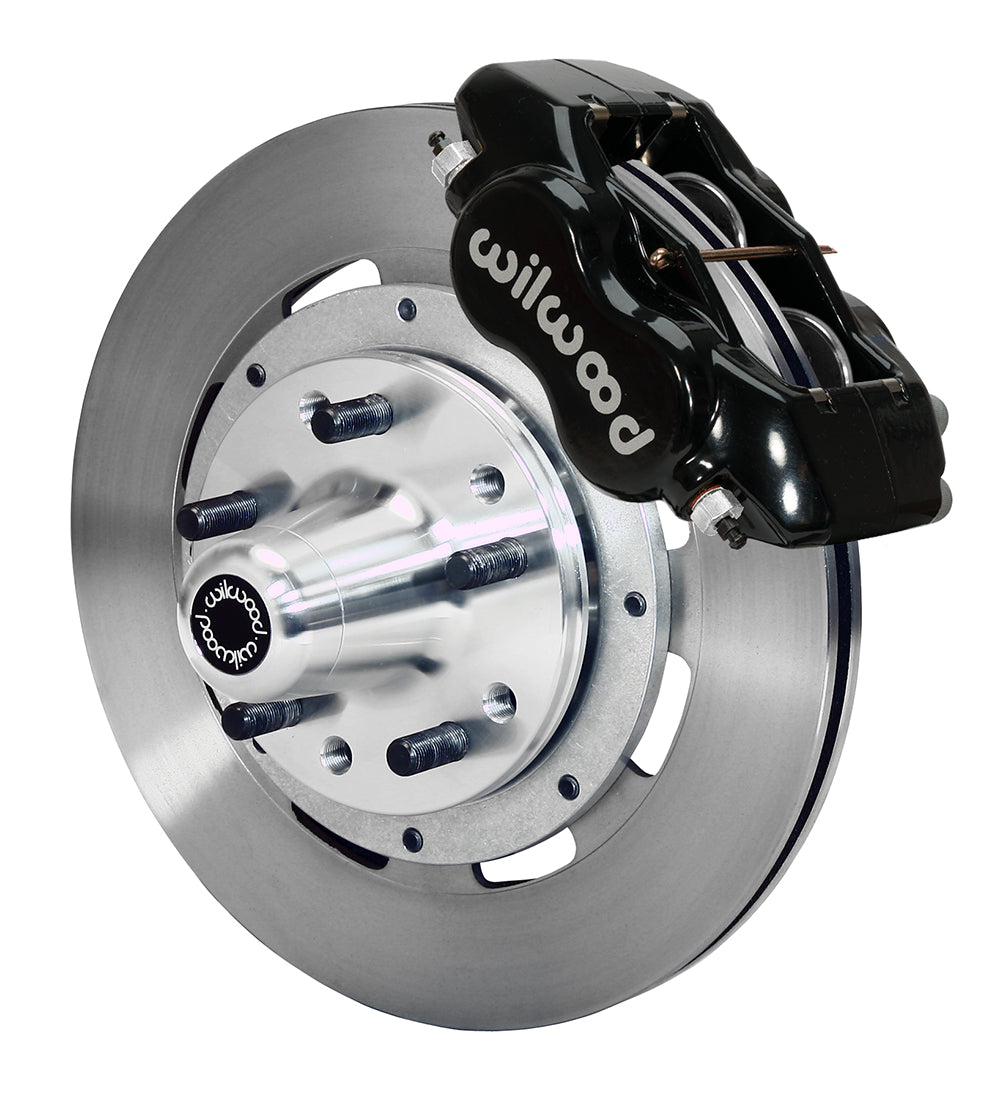

A 12.19-inch vented rotor diameter distinguishes this black Dynalite front conversion. Separate aluminum hubs and rotor adapter plates support the iron rings, while four-piston calipers and BP-10 pads provide the documented C-body service-brake configuration. Wilwood Engineering has designed and manufactured disc brake systems and components since its founding by Bill Wood in 1977. The company is based in Camarillo, California, and serves motorsport, street-performance and specialized applications. Its calipers, rotors, hydraulic master cylinders, valves, fittings and brake lines need to be matched to the complete system in which they operate.

Technical Details

• Manufacturer part number: 140-15197.
• Wheel bolt circle: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Nominal minimum wheel diameter: 15 in; 381 mm; verify full spoke and barrel clearance using the kit drawing.
• Stated OE wheel-hub offset: +.04 in; verify the documented spindle and reference geometry.
• Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
• Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor construction and friction surface: Iron; Vented; Plain Face; surface finish: Plain.
• Caliper color, finish and hydraulic inlet: Black; Black Powder Coat; inlet 1/8-27 NPT.
• Supplied pad compound: BP-10.
• Wheel-stud thread: 1/2-20.

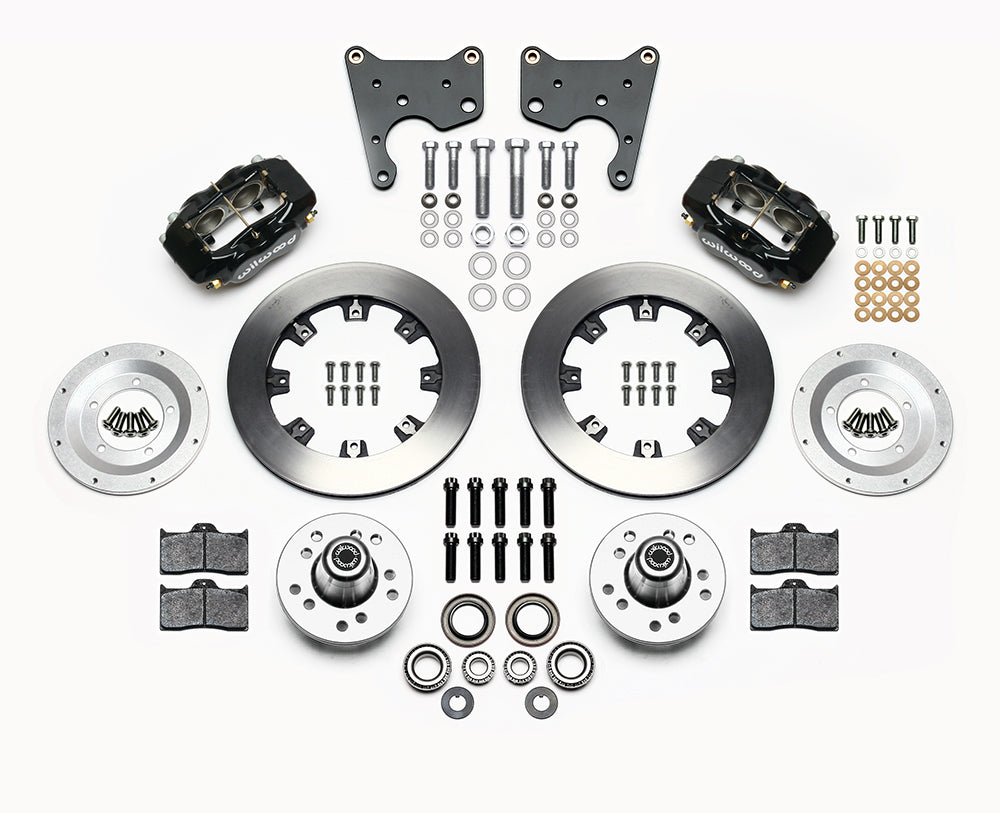

• Rotor attachment: separate rotor adapter plates and aluminum wheel hubs; no separate rotor hats.
• Mechanical package contents: separate hubs included; mounting hardware included: Yes; spindles included: No.
• Flexline specification: Line kit included (manufacturer): None; Front line-kit reference: 220-8307.
• Rotor dimensions: outside diameter 12.19 in; 309.63 mm; thickness 0.81 in; 20.57 mm.
• Service caliper assembly: Forged Dynalite Internal; 4 pistons in each caliper; Stainless pistons; Forged Aluminium body; Lug mounting.

Fitment & Compatibility

Use the exact Chrysler, Dodge or Plymouth application and retain the factory drum-spindle requirement. DS1133 details the assembly. Confirm dual-pattern hub-to-wheel selection, +0.04-inch hub position and nominal 15-inch wheel clearance; flexlines are supplied separately.

Check the application-specific restrictions for 300, New Yorker, Newport, Town & Country, Monaco, Polara, Fury, Fury II, Fury III, VIP, Fury I, Gran Fury. A shared model name does not replace the exact year and brake/suspension configuration. Use the fitment table below to confirm year, model, trim and brake or suspension options.

PMB Performance has over 20 years of experience with parts and fitment details. Contact us with the original vehicle specification and any changes to its braking or suspension system.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
