Wilwood Plain-Rotor C-Body Front Disc Conversion, Red Dynalite Calipers, Aluminum Hubs and Adapters for 1965–1972 Drum Spindles

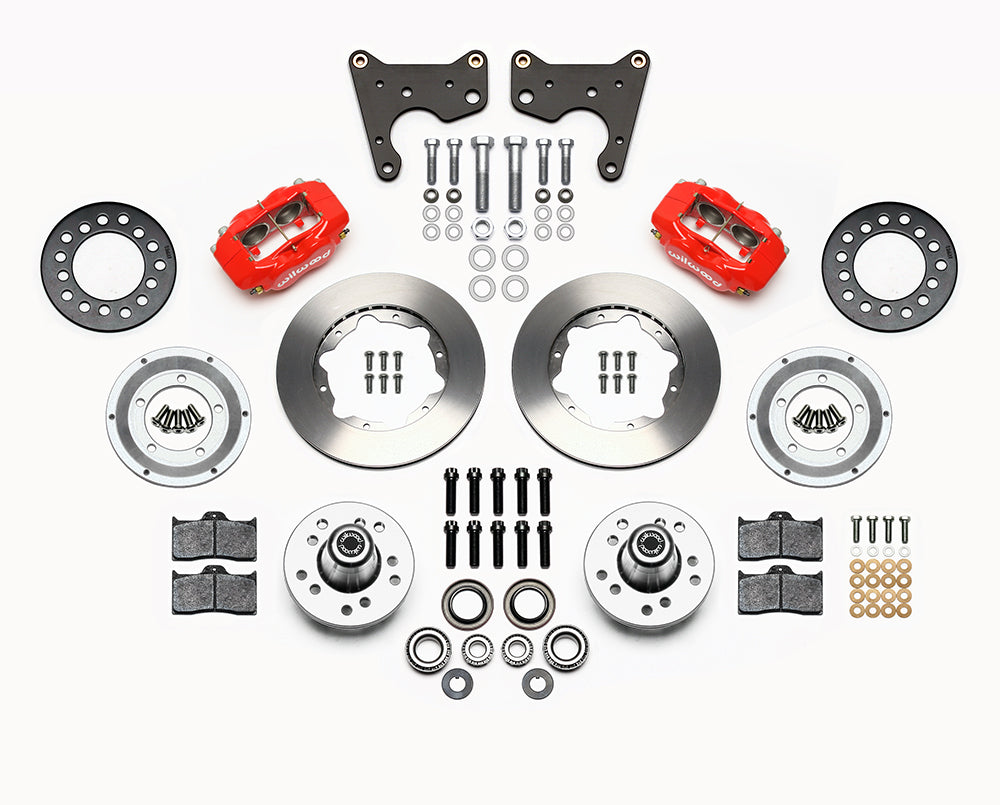

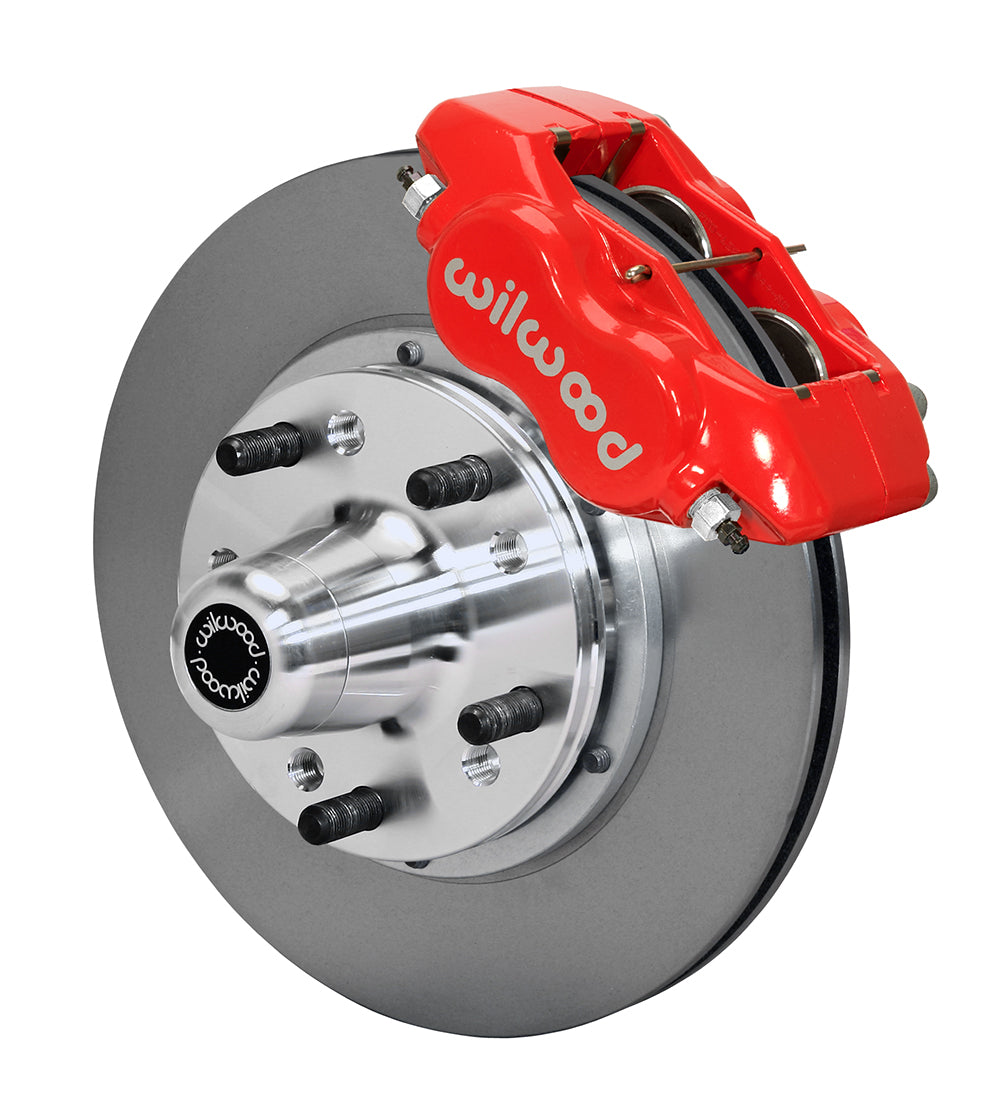

The red plain-rotor version supplies four-piston front service calipers, vented iron discs and the matched aluminum hub assemblies. Rotor adapter plates connect the 11-inch rings to the hubs, with BP-10 pads and mounting hardware included. Wilwood Engineering has designed and manufactured disc brake systems and components since its founding by Bill Wood in 1977. The company is based in Camarillo, California, and serves motorsport, street-performance and specialized applications. Its calipers, rotors, hydraulic master cylinders, valves, fittings and brake lines need to be matched to the complete system in which they operate.

Technical Details

• Manufacturer part number — 140-15196-R.
• Stated OE wheel-hub offset — +.04 in; verify the documented spindle and reference geometry.
• Rotor attachment — separate rotor adapter plates and aluminum wheel hubs; no separate rotor hats.
• Nominal minimum wheel diameter — 14 in; 355.6 mm; verify full spoke and barrel clearance using the kit drawing.
• Wheel-stud thread — 1/2-20.
• Wheel bolt circle — 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Supplied pad compound — BP-10.
• Caliper color, finish and hydraulic inlet — Red; Red Powder Coat; inlet 1/8-27 NPT.
• Service caliper assembly — Forged Dynalite Internal; 4 pistons in each caliper; Stainless pistons; Forged Aluminium body; Lug mounting.
• Rotor construction and friction surface — Iron; Vented; Plain Face; surface finish: Plain.
• Rotor dimensions — outside diameter 11.00 in; 279.4 mm; thickness 0.81 in; 20.57 mm.
• Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Flexline specification — Line kit included (manufacturer): None; Front line-kit reference: 220-8307.
• Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.
• Mechanical package contents — separate hubs included; mounting hardware included: Yes; spindles included: No.

Fitment & Compatibility

Verify the listed model's actual factory drum-spindle condition before using DS1132. Compare hub offset, the two available five-lug wheel circles and the complete wheel-clearance diagram. Hoses, master cylinder and booster are not included in this front brake kit.

The application list names 300, New Yorker, Newport, Town & Country, Monaco, Polara, Fury, Fury II, Fury III, VIP, Fury I, Gran Fury. Verify the particular year and suspension/brake option for each model. Use the fitment table below to confirm year, model, trim and brake or suspension options.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
