Wilwood Drilled 11-Inch Front Brake and Hub Package, Black Dynalite Calipers for Selected 1965–1972 Mopar C-Body Drum Spindles

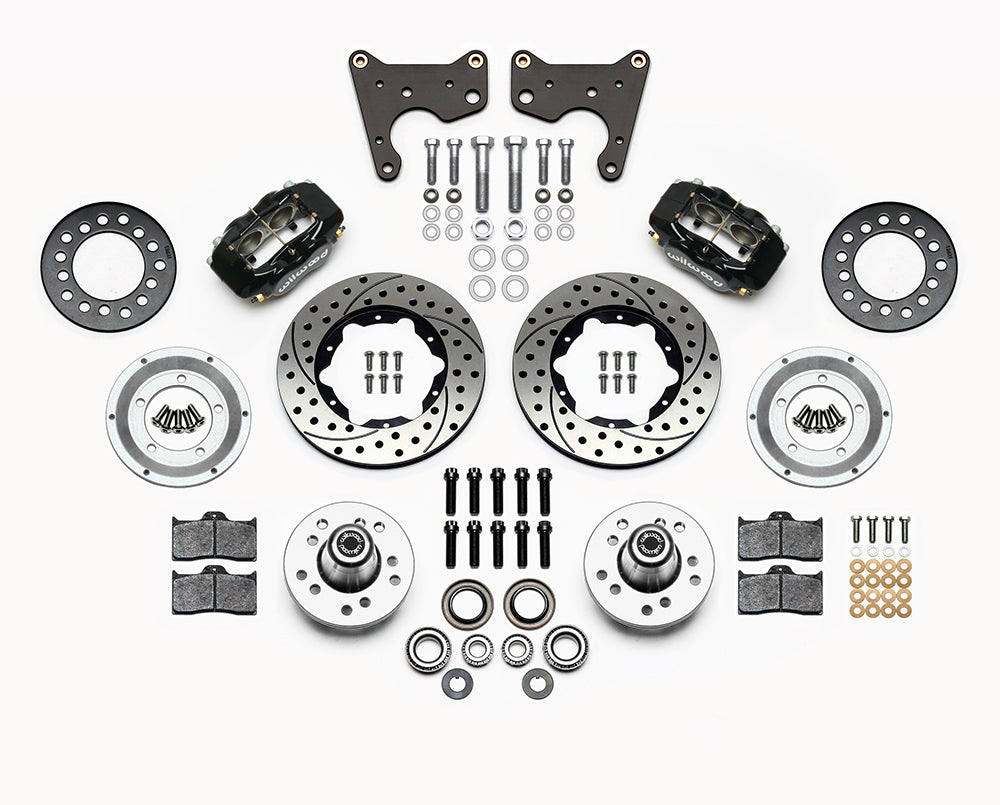

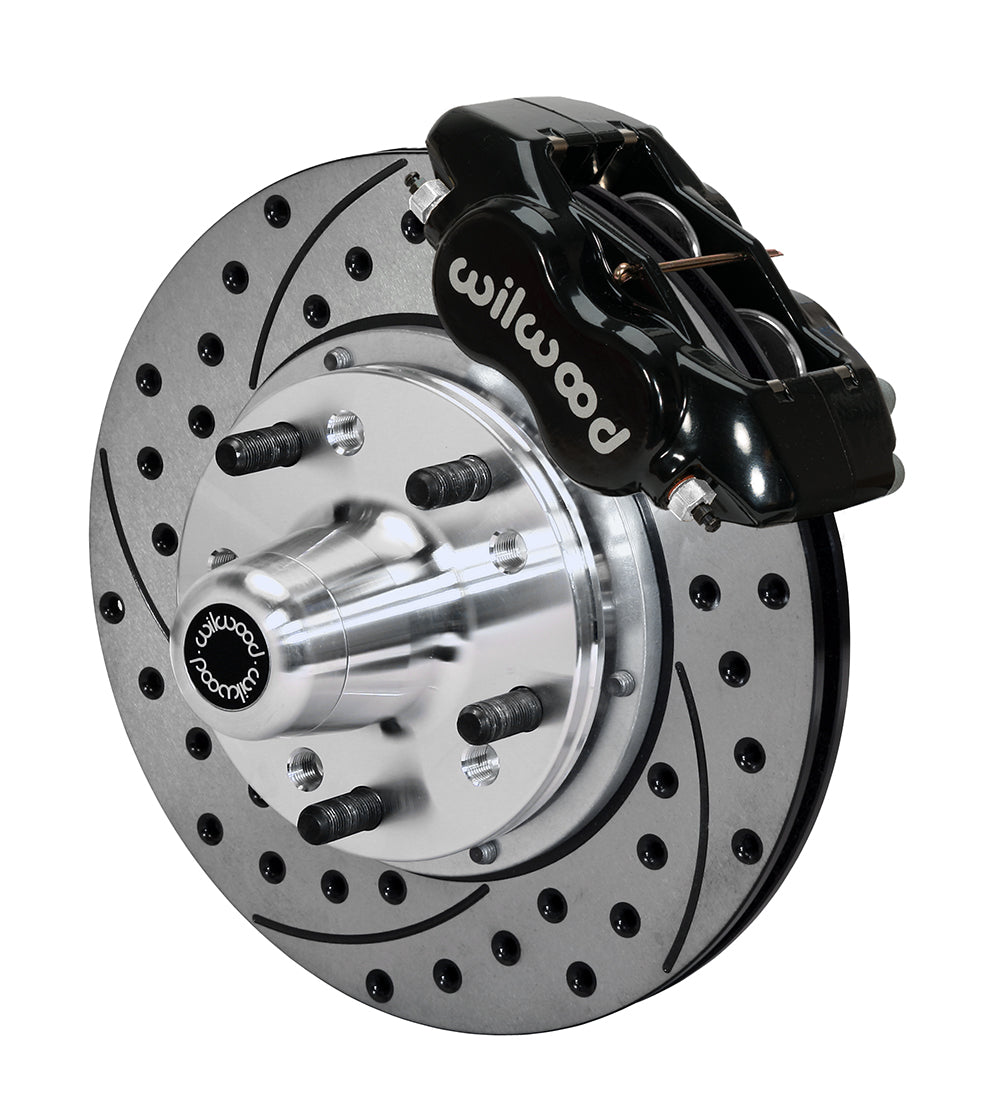

Black Dynalite calipers work with drilled-and-slotted iron rings in this compact C-body front package. The rotor mounts are adapter plates, with aluminum hubs and bearing/mounting parts supplied for the documented drum spindle. Wilwood Engineering, established by Bill Wood in 1977 and based today in Camarillo, California, manufactures and designs disc brake systems and their components. The product range covers brake rotors, calipers, valves, master cylinders, brake lines and fittings for motorsport, specialized and street-performance applications. Suitability depends on matching each component to the entire brake system.

Technical Details

• Manufacturer part number: 140-15196-D.
• Nominal minimum wheel diameter: 14 in; 355.6 mm; verify full spoke and barrel clearance using the kit drawing.
• Stated OE wheel-hub offset: +.04 in; verify the documented spindle and reference geometry.
• Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
• Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor construction and friction surface: Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
• Caliper color, finish and hydraulic inlet: Black; Black Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Wheel-stud thread: 1/2-20.
• Rotor attachment: separate rotor adapter plates and aluminum wheel hubs; no separate rotor hats.
• Mechanical package contents: separate hubs included; mounting hardware included: Yes; spindles included: No.
• Flexline specification: Line kit included (manufacturer): None; Front line-kit reference: 220-8307.
• Rotor dimensions: outside diameter 11.00 in; 279.4 mm; thickness 0.81 in; 20.57 mm.
• Service caliper assembly: Forged Dynalite Internal; 4 pistons in each caliper; Stainless pistons; Forged Aluminium body; Lug mounting.
• Supplied pad compound: BP-10.

Fitment & Compatibility

Use the individual model/year listing to verify the original drum-spindle layout. Follow DS1132, select the correct five-lug hub pattern and check wheel-face position before assembly. A nominal 14-inch wheel must still clear the full brake profile, and suitable hoses must be selected separately.

Check the application-specific restrictions for 300, New Yorker, Newport, Town & Country, Monaco, Polara, Fury, Fury II, Fury III, VIP, Fury I, Gran Fury. A shared model name does not replace the exact year and brake/suspension configuration. Use the fitment table below to confirm year, model, trim and brake or suspension options.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
