Wilwood Front Dynalite Disc Kit for Chrysler/Dodge/Plymouth C-Body Drum Spindles, 1965–1972, Black Calipers and Plain 11-Inch Rotors

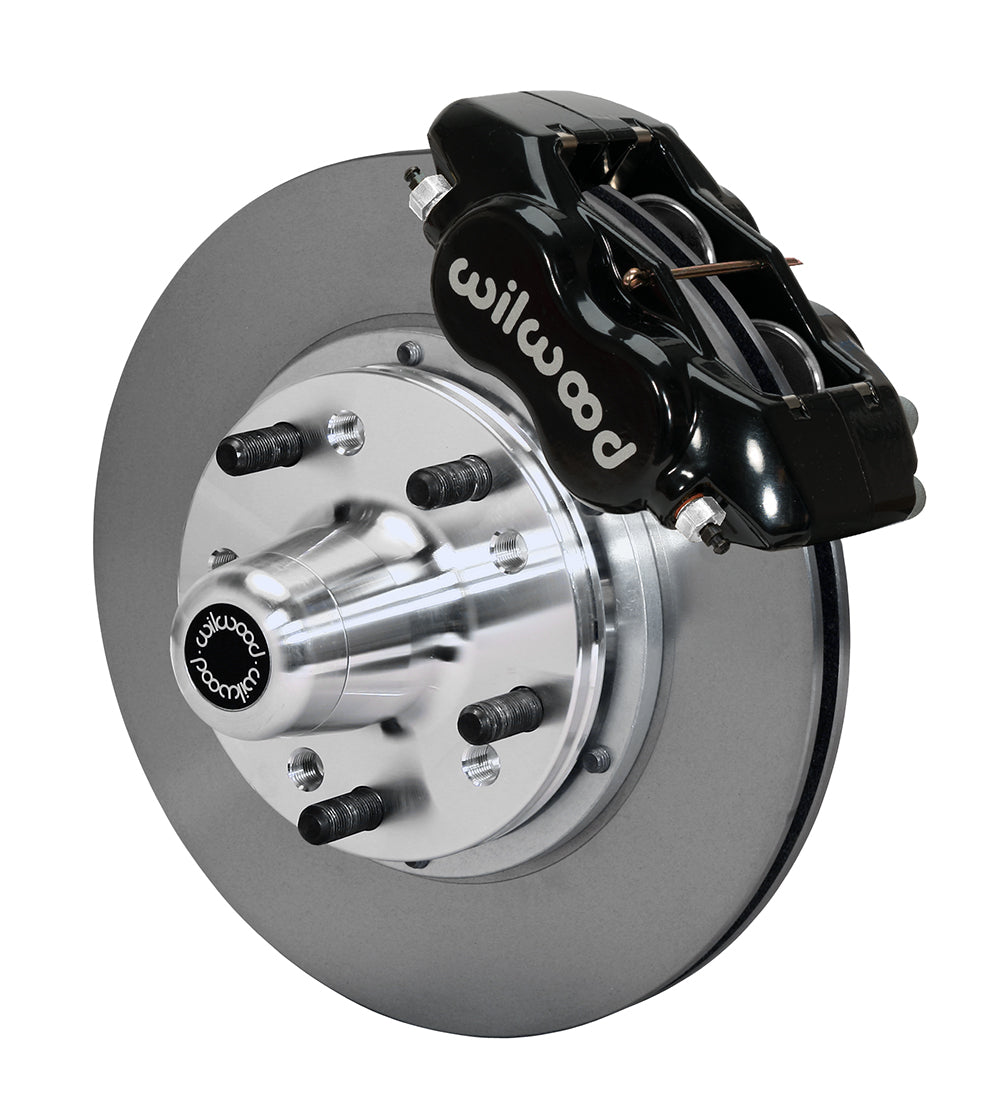

This C-body conversion attaches plain 11-inch rotor rings to aluminum hubs through separate rotor adapter plates. Black Dynalite Internal four-piston calipers use BP-10 pads for the specified original drum-spindle front suspension. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc braking systems and components for street-performance, motorsport and specialized use. Its calipers, rotors, master cylinders, valves, fittings and brake lines are chosen around the hydraulic, mounting and balance needs of a complete system.

Technical Details

• Manufacturer part number — 140-15196.
• Supplied pad compound — BP-10.
• Wheel-stud thread — 1/2-20.
• Rotor attachment — separate rotor adapter plates and aluminum wheel hubs; no separate rotor hats.

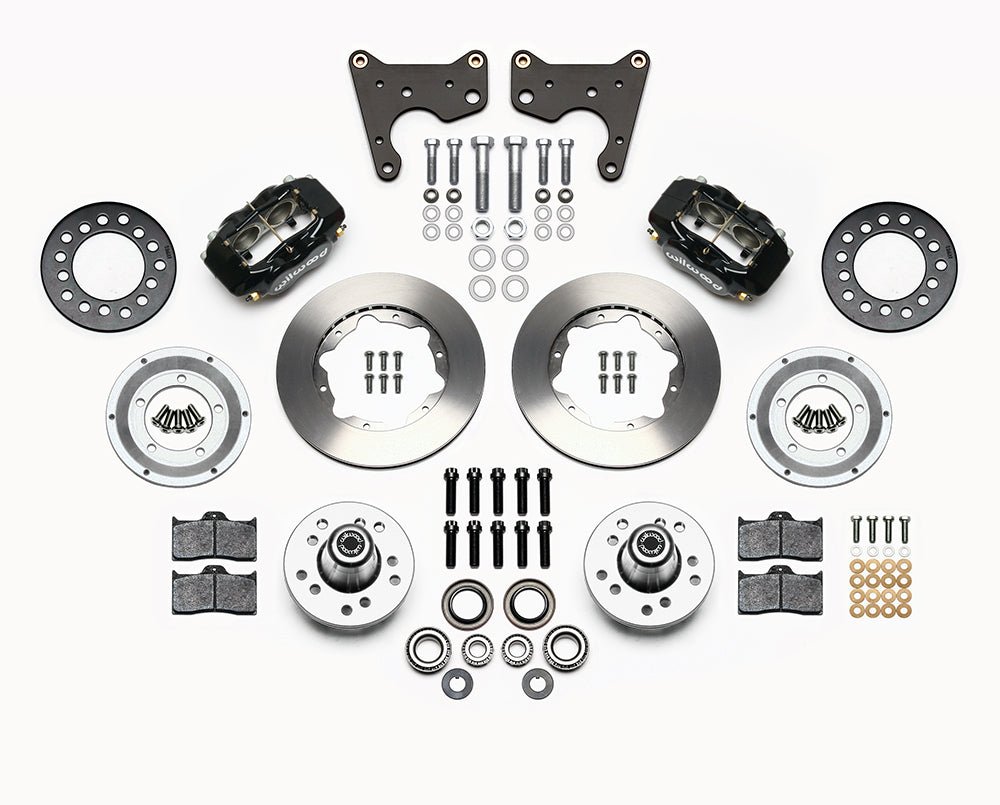

• Mechanical package contents — separate hubs included; mounting hardware included: Yes; spindles included: No.
• Flexline specification — Line kit included (manufacturer): None; Front line-kit reference: 220-8307.
• Rotor dimensions — outside diameter 11.00 in; 279.4 mm; thickness 0.81 in; 20.57 mm.
• Service caliper assembly — Forged Dynalite Internal; 4 pistons in each caliper; Stainless pistons; Forged Aluminium body; Lug mounting.
• Wheel bolt circle — 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Nominal minimum wheel diameter — 14 in; 355.6 mm; verify full spoke and barrel clearance using the kit drawing.
• Stated OE wheel-hub offset — +.04 in; verify the documented spindle and reference geometry.
• Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.
• Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor construction and friction surface — Iron; Vented; Plain Face; surface finish: Plain.
• Caliper color, finish and hydraulic inlet — Black; Black Powder Coat; inlet 1/8-27 NPT.

Fitment & Compatibility

Confirm the exact 1965–1972 Chrysler, Dodge or Plymouth model and factory drum spindle below. DS1132 is the assembly reference. Check the +0.04-inch outward hub shift, chosen 5 x 4.50 or 5 x 4.75 wheel pattern and nominal 14-inch wheel envelope. Hydraulic hoses are separate.

Listed model families are 300, New Yorker, Newport, Town & Country, Monaco, Polara, Fury, Fury II, Fury III, VIP, Fury I, Gran Fury; the individual year and brake/spindle conditions remain decisive. Use the fitment table below to confirm year, model, trim and brake or suspension options.

For a fitment check, give PMB Performance the vehicle details and the actual brake and suspension hardware. Our team has over 20 years of experience working through parts compatibility.

Check the Installation instructions for the full assembly and wheel-clearance requirements.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
