Wilwood Front Dynalite-M Disc Kit for Selected Cadillac 1957–1960 Models, Black Calipers, Integral 11.88-Inch Rotors and Hoses

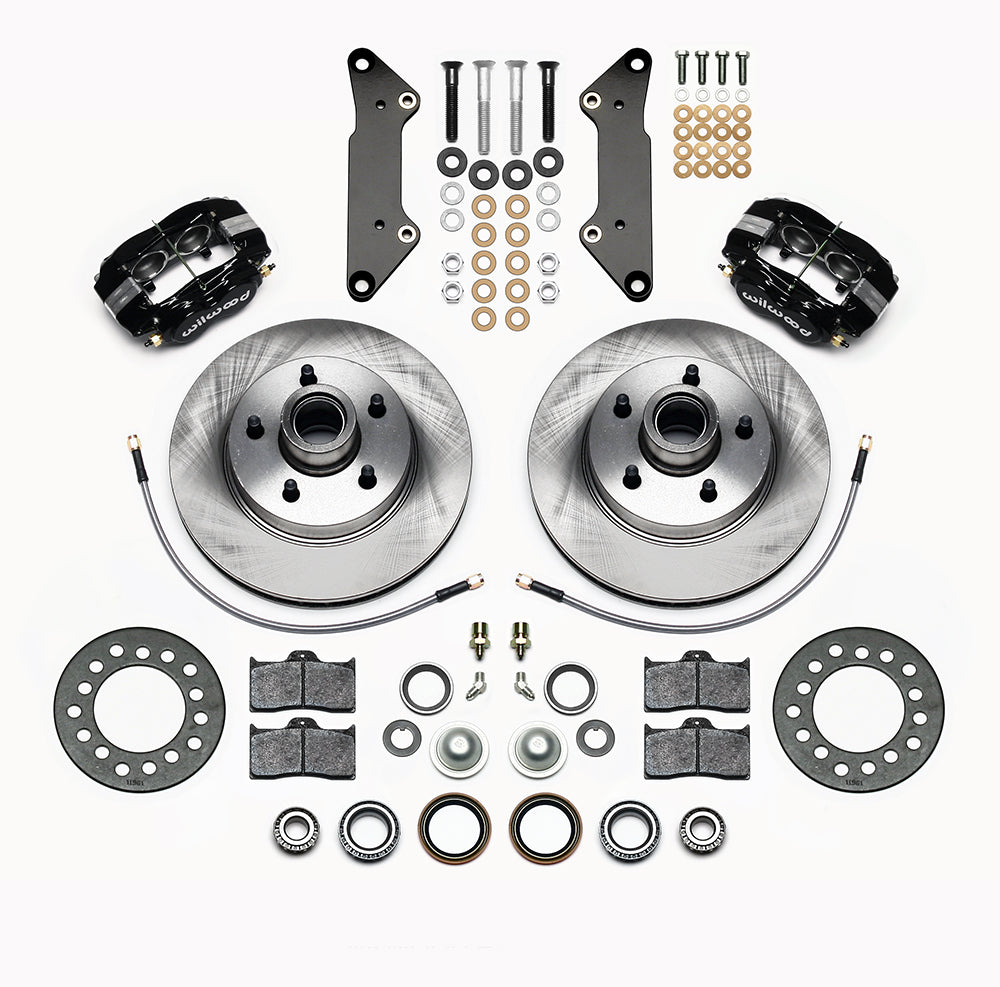

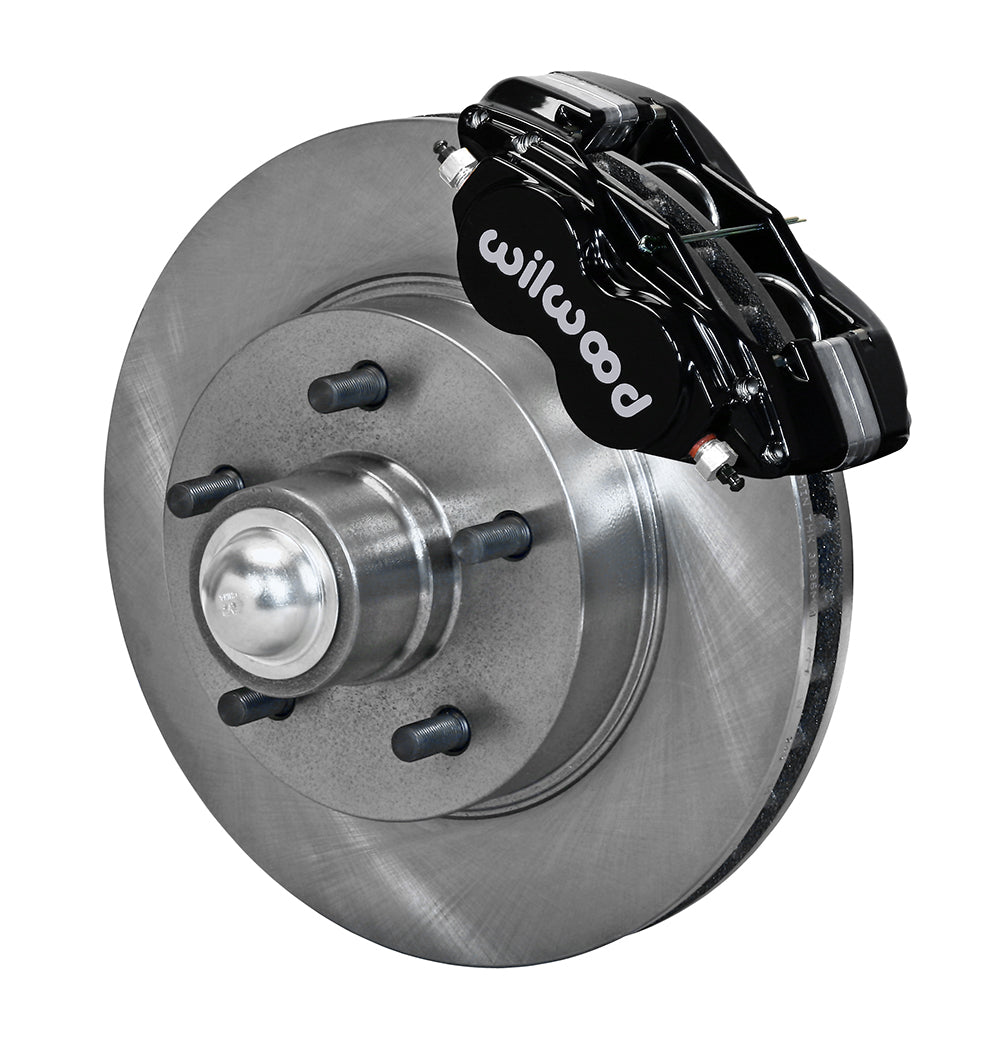

Selected late-1950s Cadillac front drum assemblies can be converted with black four-piston Dynalite-M calipers and plain vented iron rotor/hubs. The integral hub design uses the specified 5 x 5 wheel circle, and the kit supplies the corresponding front flexlines. Wilwood Engineering is based in Camarillo, California; Bill Wood founded the company in 1977. Disc brake system design and manufacturing includes calipers, rotors, master cylinders, pressure valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for how the complete brake system mounts, operates and balances.

Technical Details

• Manufacturer part number — 140-15162.
• Caliper color, finish and hydraulic inlet — Black; Black Powder Coat; inlet 1/8-27 NPT.
• Service caliper assembly — Forged Dynalite-M; 4 pistons in each caliper; Stainless pistons; Forged Aluminium body; Lug mounting.
• Rotor construction and friction surface — Iron; Vented; Plain Face; surface finish: Plain.
• Rotor dimensions — outside diameter 11.88 in; 301.75 mm; thickness 1.29 in; 32.77 mm.
• Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Flexline specification — Line kit included (manufacturer): 220-6471 (18.00 in); Front line-kit reference: 220-6471.
• Hydraulic package contents — brake lines included: Yes; master cylinder included: No; booster included: No.
• Mechanical package contents — integral rotor/hubs supplied; no separate hubs; mounting hardware included: Yes; spindles included: No.
• Stated OE wheel-hub offset — +.09 in; verify the documented spindle and reference geometry.
• Hub construction — wheel hubs are integral with the iron rotors; no separate hub assembly is supplied.
• Nominal minimum wheel diameter — 15 in; 381 mm; verify full spoke and barrel clearance using the kit drawing.
• Wheel-stud diameter — 0.50 in; 12.70 mm.
• Wheel bolt circle — 5 x 5 in; 5 x 127 mm.
• Supplied pad compound — BP-10.

Fitment & Compatibility

Match the exact Cadillac year and model below, including the narrower Series 70 Fleetwood Eldorado listing. DS1125 governs the bearing/spindle assembly. Account for +0.09-inch outward hub position and check 15-inch wheel clearance; a separate aluminum hub is not part of this integral-rotor design.

The application list names Commercial Chassis, DeVille, Eldorado, Series 60 Fleetwood, Series 62, Series 75 Fleetwood, Series 70 Fleetwood Eldorado. Verify the particular year and suspension/brake option for each model. Use the fitment table below to confirm year, model, trim and brake or suspension options.

PMB Performance has over 20 years of experience with parts and fitment details. Contact us with the original vehicle specification and any changes to its braking or suspension system.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
