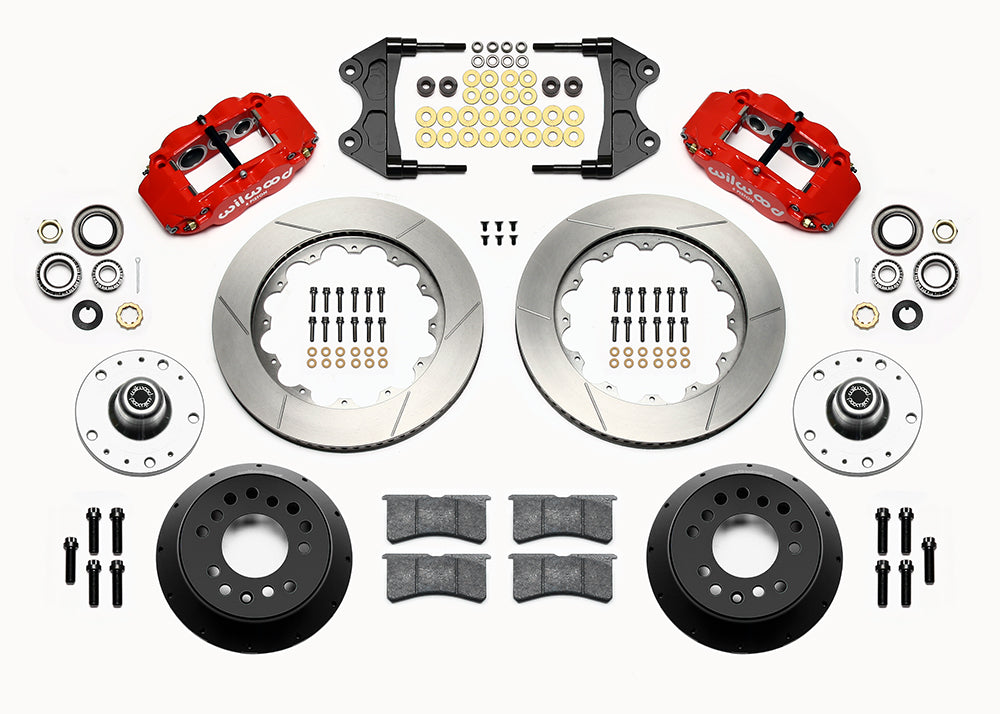

Wilwood 5x5 ProSpindle 14-inch front kit layout with red Superlite 6R calipers, 14.00-inch GT-slotted rotors, aluminum hats, separate hubs, pads, bearings and mounting hardware

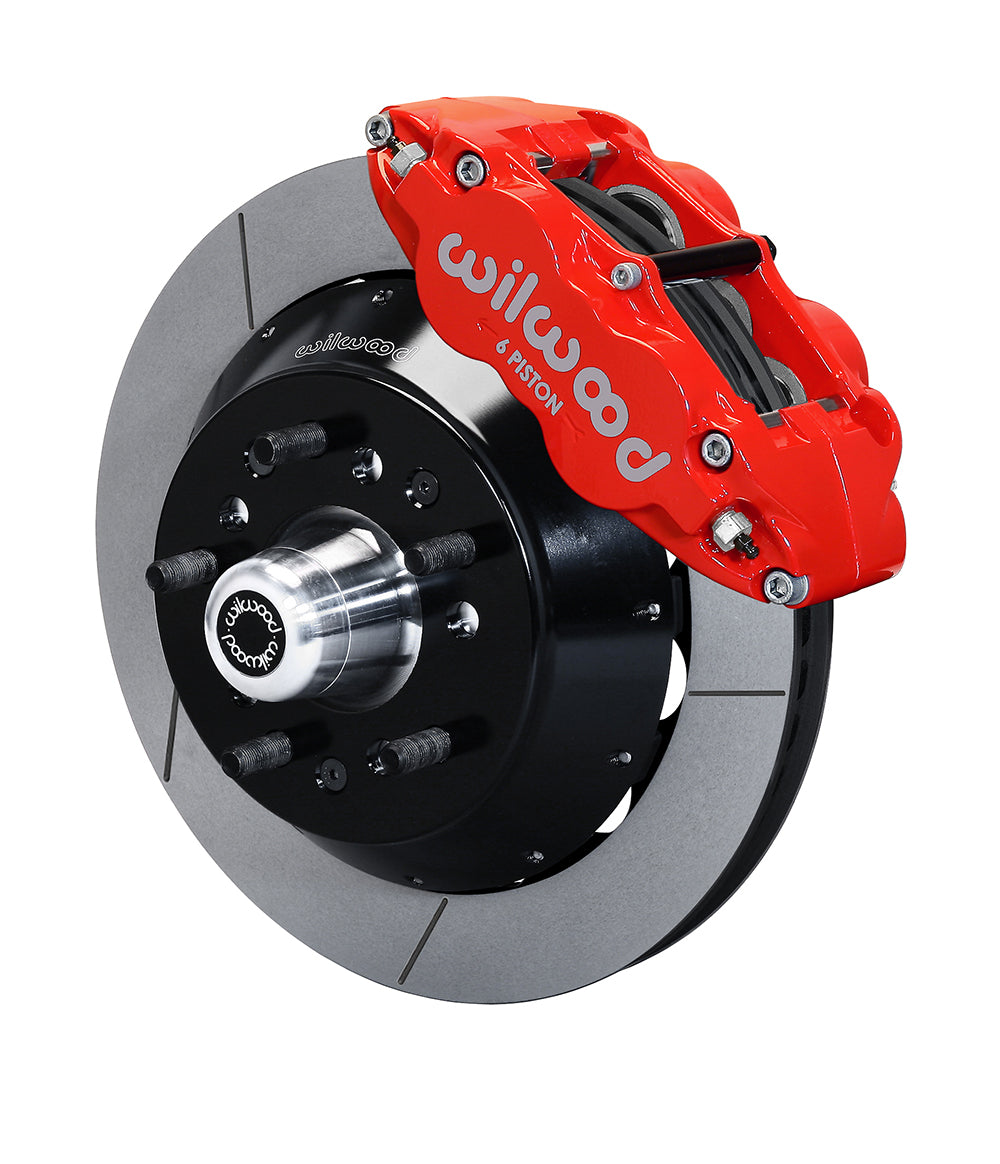

Wilwood 5x5 ProSpindle 14-inch front assembly with a red Superlite 6R caliper, 14.00-inch GT-slotted rotor and central wheel hub with studs
Wilwood 5x5 ProSpindle 14-inch front kit layout with red Superlite 6R calipers, 14.00-inch GT-slotted rotors, aluminum hats, separate hubs, pads, bearings and mounting hardware
Wilwood 5x5 ProSpindle 14-inch front assembly with a red Superlite 6R caliper, 14.00-inch GT-slotted rotor and central wheel hub with studs

Wilwood ProSpindle 5 x 5 Front Disc Conversion, Red Superlite Six-Piston Calipers with 14-Inch GT Rotor Assemblies

SKU: 140-15156-R

$2,597.19 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This red GT configuration supplies 14-inch slotted rings, aluminum hats and the specified modified wheel hubs. Six-piston Superlite calipers and BP-10 pads are matched to the documented ProSpindle front installation, with no spindle or flexline set included. Wilwood Engineering is based in Camarillo, California; Bill Wood founded the company in 1977. Disc brake system design and manufacturing includes calipers, rotors, master cylinders, pressure valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for how the complete brake system mounts, operates and balances.

Technical Details

  • Manufacturer part number: 140-15156-R.
  • Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
  • Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
  • Rotor construction and friction surface: Spec-37 Iron; Vented; GT Slotted; surface finish: Black Electro Coat.
  • Caliper color, finish and hydraulic inlet: Red; Red Powder Coat; inlet 1/8-27 NPT.
  • Wheel bolt circle: 5 x 5 in; 5 x 127 mm.
  • Nominal minimum wheel diameter: 18 in; 457.2 mm; verify full spoke and barrel clearance using the kit drawing.
  • Stated OE wheel-hub offset: +.68 in; verify the documented spindle and reference geometry.
  • Mechanical package contents: separate hubs included; mounting hardware included: Yes; spindles included: No.
  • Current hub wheel interface: modified aluminum hub 270-10658 is specified for 5 x 5.00-inch wheels; hat mounting patterns are separate interfaces.
  • Rotor dimensions: outside diameter 14.00 in; 355.6 mm; thickness 1.10 in; 27.94 mm.
  • Service caliper assembly: Superlite 6R; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
  • Supplied pad compound: BP-10.
  • Wheel-stud thread: 1/2-20.
  • Rotor mounting hat: aluminum; Black E-Coat; hat offset 1.880 in.

Fitment & Compatibility

DS1116 is the installation reference for both permitted ProSpindle height arrangements. Verify current 5 x 5 hub-to-wheel compatibility and the outward hub shift. The 18-inch nominal wheel minimum still requires the full spoke/barrel clearance check and correct line selection.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
