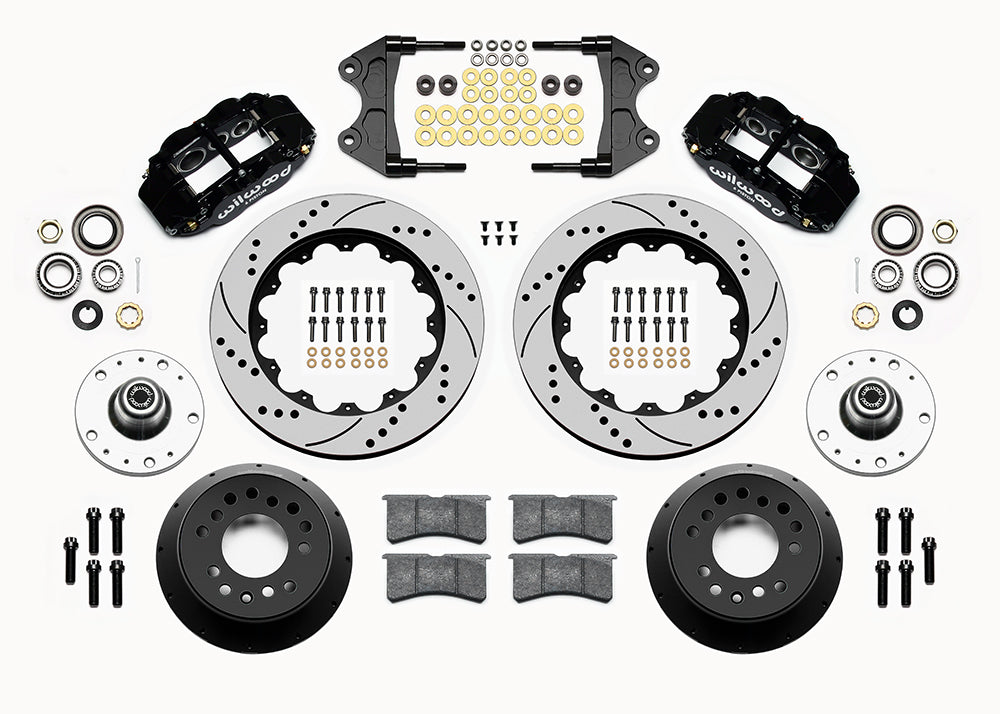

Wilwood 5x5 ProSpindle 14-inch front kit layout with black Superlite 6R calipers, 14.00-inch drilled-and-slotted rotors, aluminum hats, separate hubs, pads, bearings and mounting hardware

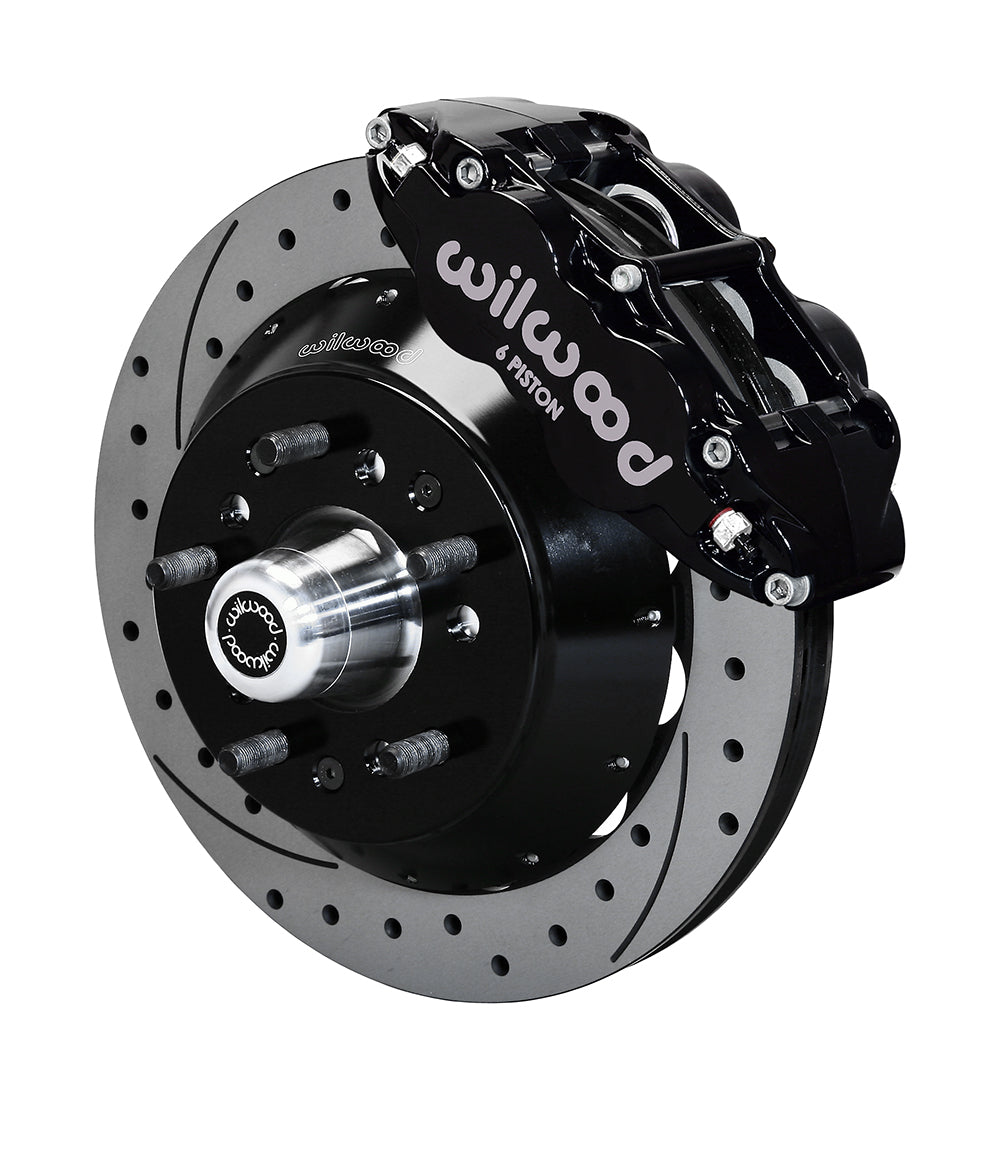

Wilwood 5x5 ProSpindle 14-inch front assembly with a black Superlite 6R caliper, 14.00-inch drilled-and-slotted rotor and central wheel hub with studs
Wilwood 5x5 ProSpindle 14-inch front kit layout with black Superlite 6R calipers, 14.00-inch drilled-and-slotted rotors, aluminum hats, separate hubs, pads, bearings and mounting hardware
Wilwood 5x5 ProSpindle 14-inch front assembly with a black Superlite 6R caliper, 14.00-inch drilled-and-slotted rotor and central wheel hub with studs

Wilwood ProSpindle Front Conversion with Black Superlite Calipers and Drilled 14-Inch Rotors, 5 x 5 Hub Configuration

SKU: 140-15156-D

$2,597.19 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

With SRP rotor rings and black six-piston calipers, this kit assembles a 14-inch front disc system around the specified ProSpindle. The included aluminum hubs use the specified modified 5 x 5 wheel interface. Wilwood Engineering has designed and manufactured disc brake systems and components since its founding by Bill Wood in 1977. The company is based in Camarillo, California, and serves motorsport, street-performance and specialized applications. Its calipers, rotors, hydraulic master cylinders, valves, fittings and brake lines need to be matched to the complete system in which they operate.

Technical Details

  • Manufacturer part number — 140-15156-D.
  • Wheel bolt circle — 5 x 5 in; 5 x 127 mm.
  • Supplied pad compound — BP-10.
  • Caliper color, finish and hydraulic inlet — Black; Black Powder Coat; inlet 1/8-27 NPT.
  • Service caliper assembly — Superlite 6R; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
  • Rotor construction and friction surface — Spec-37 Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
  • Rotor dimensions — outside diameter 14.00 in; 355.6 mm; thickness 1.10 in; 27.94 mm.
  • Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
  • Current hub wheel interface — modified aluminum hub 270-10658 is specified for 5 x 5.00-inch wheels; hat mounting patterns are separate interfaces.
  • Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.
  • Mechanical package contents — separate hubs included; mounting hardware included: Yes; spindles included: No.
  • Stated OE wheel-hub offset — +.68 in; verify the documented spindle and reference geometry.
  • Rotor mounting hat — aluminum; Black E-Coat; hat offset 1.880 in.
  • Nominal minimum wheel diameter — 18 in; 457.2 mm; verify full spoke and barrel clearance using the kit drawing.
  • Wheel-stud thread — 1/2-20.

Fitment & Compatibility

Identify the standard or drop ProSpindle and use the corresponding DS1116 assembly. Check wheel pattern, offset and internal barrel/spoke clearance with the 18-inch template. Hydraulic hoses and the spindle set must be provided separately.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
