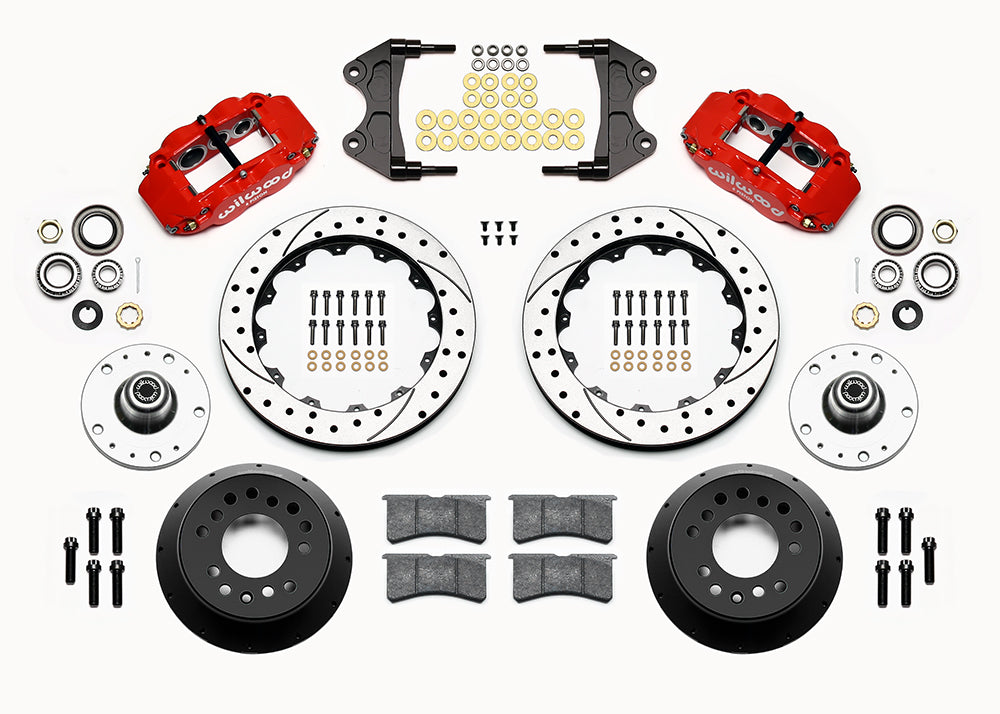

Wilwood 5x5 ProSpindle 12.88-inch front kit layout with red Superlite 6R calipers, 12.88-inch drilled-and-slotted rotors, aluminum hats, separate hubs, pads, bearings and mounting hardware

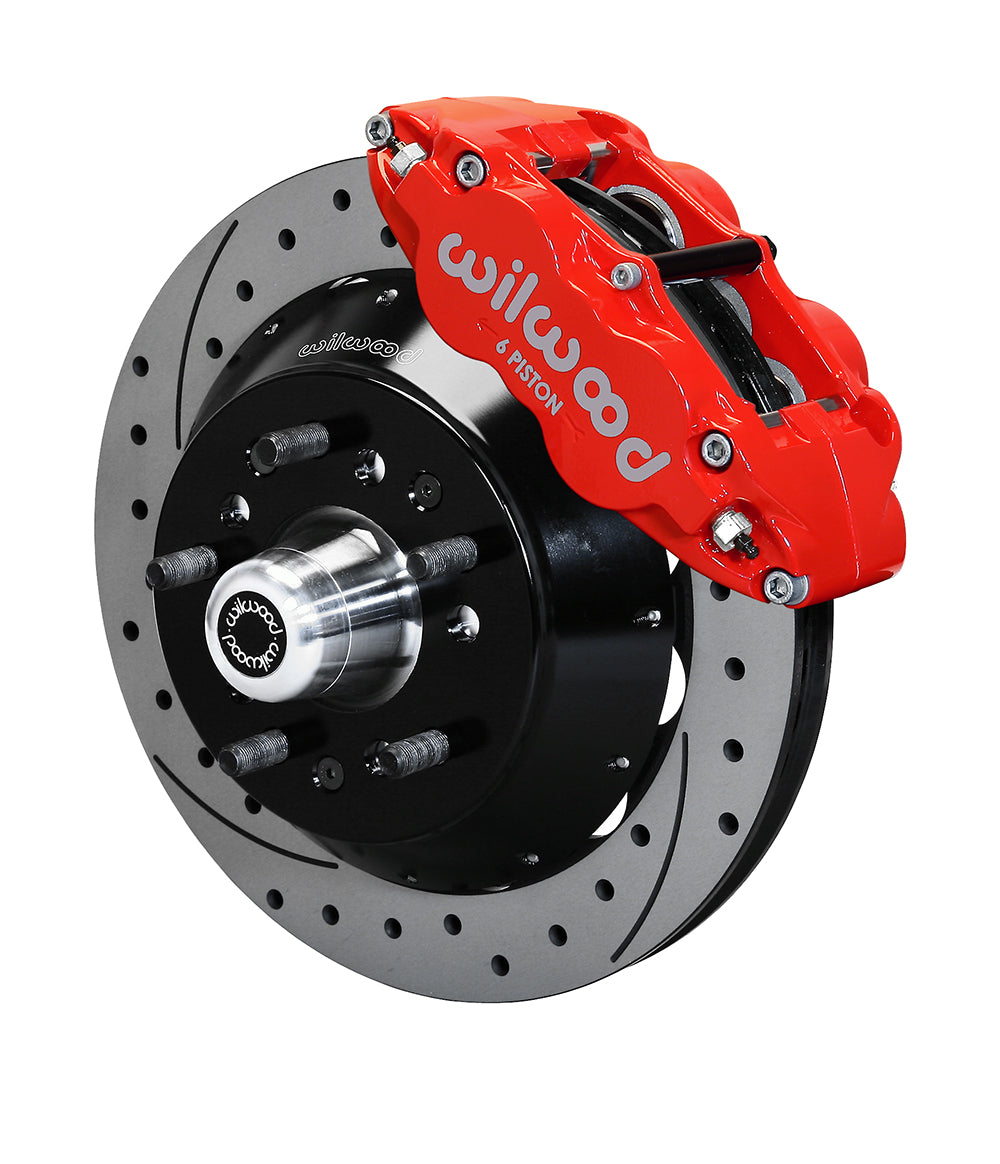

Wilwood 5x5 ProSpindle 12.88-inch front assembly with a red Superlite 6R caliper, 12.88-inch drilled-and-slotted rotor and central wheel hub with studs
Wilwood 5x5 ProSpindle 12.88-inch front kit layout with red Superlite 6R calipers, 12.88-inch drilled-and-slotted rotors, aluminum hats, separate hubs, pads, bearings and mounting hardware
Wilwood 5x5 ProSpindle 12.88-inch front assembly with a red Superlite 6R caliper, 12.88-inch drilled-and-slotted rotor and central wheel hub with studs

Wilwood Red Superlite 6R Front Conversion for ProSpindle, Drilled 12.88-Inch Rotors, Aluminum Hats and 5 x 5 Wheel Hubs

SKU: 140-15155-DR

$2,387.28 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

The red SRP assembly includes six-piston front calipers, 12.88-inch rotor rings and the matching aluminum hat/hub components. Its wheel interface is the current modified 5 x 5-inch hub specification, with separate brake lines required for the vehicle. Wilwood Engineering, established by Bill Wood in 1977 and based today in Camarillo, California, manufactures and designs disc brake systems and their components. The product range covers brake rotors, calipers, valves, master cylinders, brake lines and fittings for motorsport, specialized and street-performance applications. Suitability depends on matching each component to the entire brake system.

Technical Details

  • Manufacturer part number — 140-15155-DR.
  • Wheel-stud thread — 1/2-20.
  • Wheel bolt circle — 5 x 5 in; 5 x 127 mm.
  • Supplied pad compound — BP-10.
  • Caliper color, finish and hydraulic inlet — Red; Red Powder Coat; inlet 1/8-27 NPT.
  • Service caliper assembly — Superlite 6R; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
  • Rotor construction and friction surface — Spec-37 Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
  • Rotor dimensions — outside diameter 12.88 in; 327.15 mm; thickness 1.10 in; 27.94 mm.
  • Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
  • Current hub wheel interface — modified aluminum hub 270-10658 is specified for 5 x 5.00-inch wheels; hat mounting patterns are separate interfaces.
  • Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.
  • Mechanical package contents — separate hubs included; mounting hardware included: Yes; spindles included: No.
  • Stated OE wheel-hub offset — +.68 in; verify the documented spindle and reference geometry.
  • Rotor mounting hat — aluminum; Black E-Coat; hat offset 1.880 in.
  • Nominal minimum wheel diameter — 17 in; 431.8 mm; verify full spoke and barrel clearance using the kit drawing.

Fitment & Compatibility

Check the specific Wilwood ProSpindle layout before ordering. DS1115 gives distinct mounting instructions for standard and drop configurations. Verify the 5 x 5 wheel pattern, +0.68-inch hub shift and full internal wheel envelope; neither the spindle nor hydraulic hoses are part of this kit.

With more than 20 years of parts experience, PMB Performance can help review the specified brake arrangement. Include the vehicle year and details of any hub, spindle or suspension changes.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
