Wilwood Red AERO6 Disc Package with SRP 15 x 1.25-Inch Rotors and Hubs, Verified GM and Ridetech Pin-Spindle Front Fitments

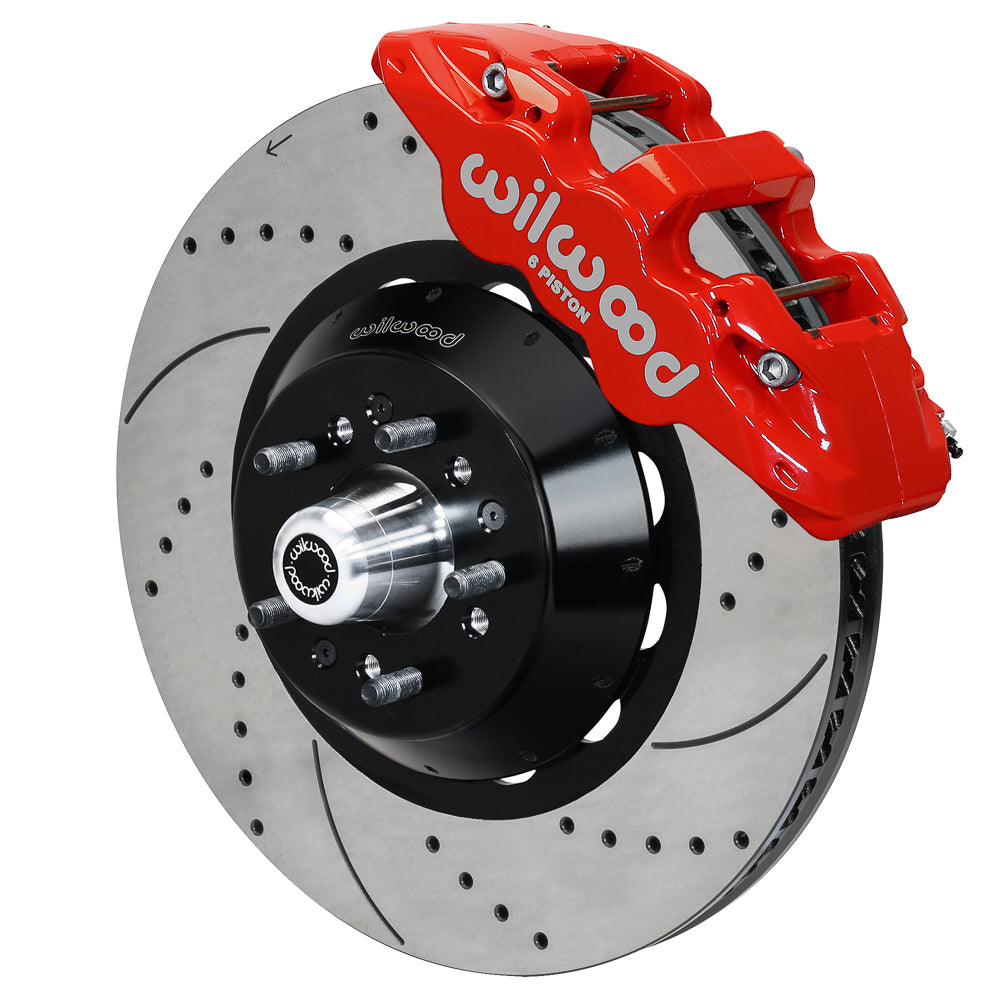

Red AERO6 calipers clamp 15-inch drilled-and-slotted rotor rings in this application-specific front kit. The aluminum hub and hat assemblies provide the documented wheel interfaces, with BP-10 pads and the mounting parts supplied; hydraulic flexlines are not included. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, with each part selected to match the complete brake system.

Technical Details

• Manufacturer part number: 140-15053-DR.
• Nominal minimum wheel diameter: 19 in; 482.6 mm; verify full spoke and barrel clearance using the kit drawing.
• Rotor mounting hat: aluminum; Black E-Coat; hat offset 1.750 in.
• Stated OE wheel-hub offset: +.38 in; verify the documented spindle and reference geometry.

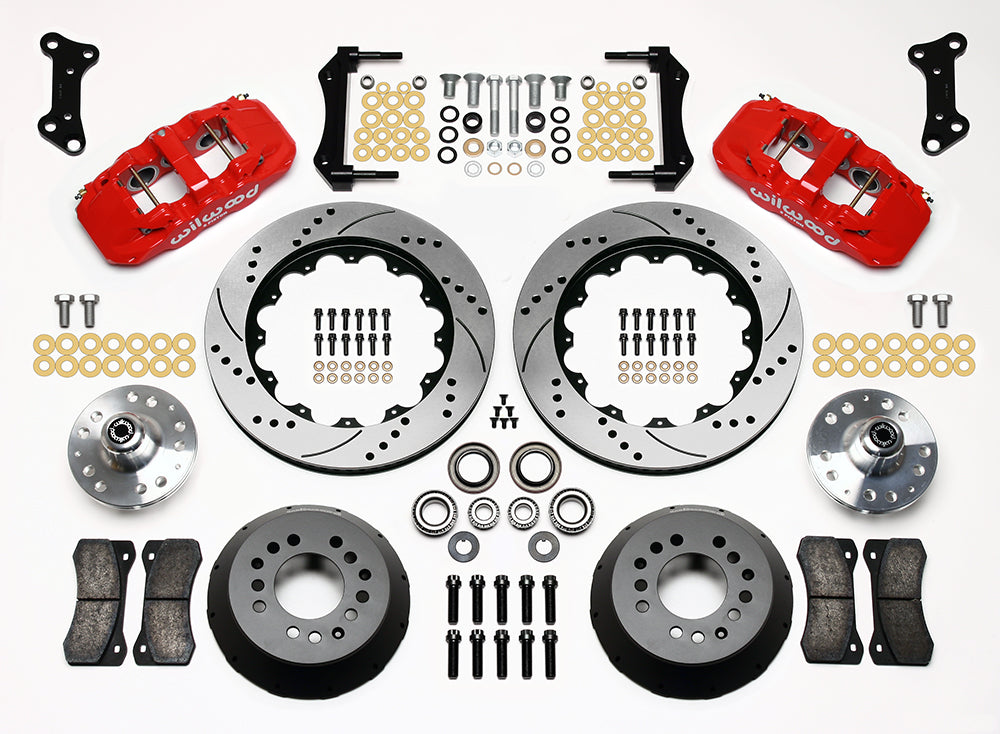

• Mechanical package contents: separate hubs included; mounting hardware included: Yes; spindles included: No.
• Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
• Flexline specification: Line kit included (manufacturer): None; Front line-kit reference: 220-7056.
• Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor dimensions: outside diameter 15.00 in; 381 mm; thickness 1.25 in; 31.75 mm.
• Rotor construction and friction surface: Spec-37 Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
• Service caliper assembly: AERO6; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Caliper color, finish and hydraulic inlet: Red; Red Powder Coat; inlet 1/8-27 NPT.
• Supplied pad compound: BP-10.
• Wheel bolt circle: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Wheel-stud thread: 1/2-20.

Fitment & Compatibility

Confirm the exact chassis, year and spindle column in the preserved applications. The earlier Ford/Mercury and early Corvette entries use Ridetech PIN spindles only. For original GM spindles, follow DS1101's conditional drilling, tapping and steering-arm clearance requirements. Verify the +0.38-inch hub shift and brake-to-wheel clearance.

Models represented in the detailed applications: Falcon, Comet, Chevy II, Corvette, Skylark, Special, Sportwagon, Chevelle, El Camino, Malibu, Mustang, 442, Cutlass, F85, Vista Cruiser, Acadian, Beaumont, GTO, LeMans, Tempest, Gran Sport, F-100, Camaro, Cutlass Supreme, Firebird, GS 350, GS 400, Nova, Grand Prix, GS, GS 455, Monte Carlo, Sprint, Ventura, Apollo, Omega. Each is subject to its individual year, trim and brake/suspension condition. Use the fitment table below to confirm year, model, trim and brake or suspension options.

Choose any alternative flexline for the actual route and chassis fittings, with enough travel and the correct flare connections.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
