Wilwood Front Hub and Plain Vented Brake Rotor Kit for Specified Early Ford Drum Spindles, 10.75-Inch Rotors, Calipers and Brackets Separate

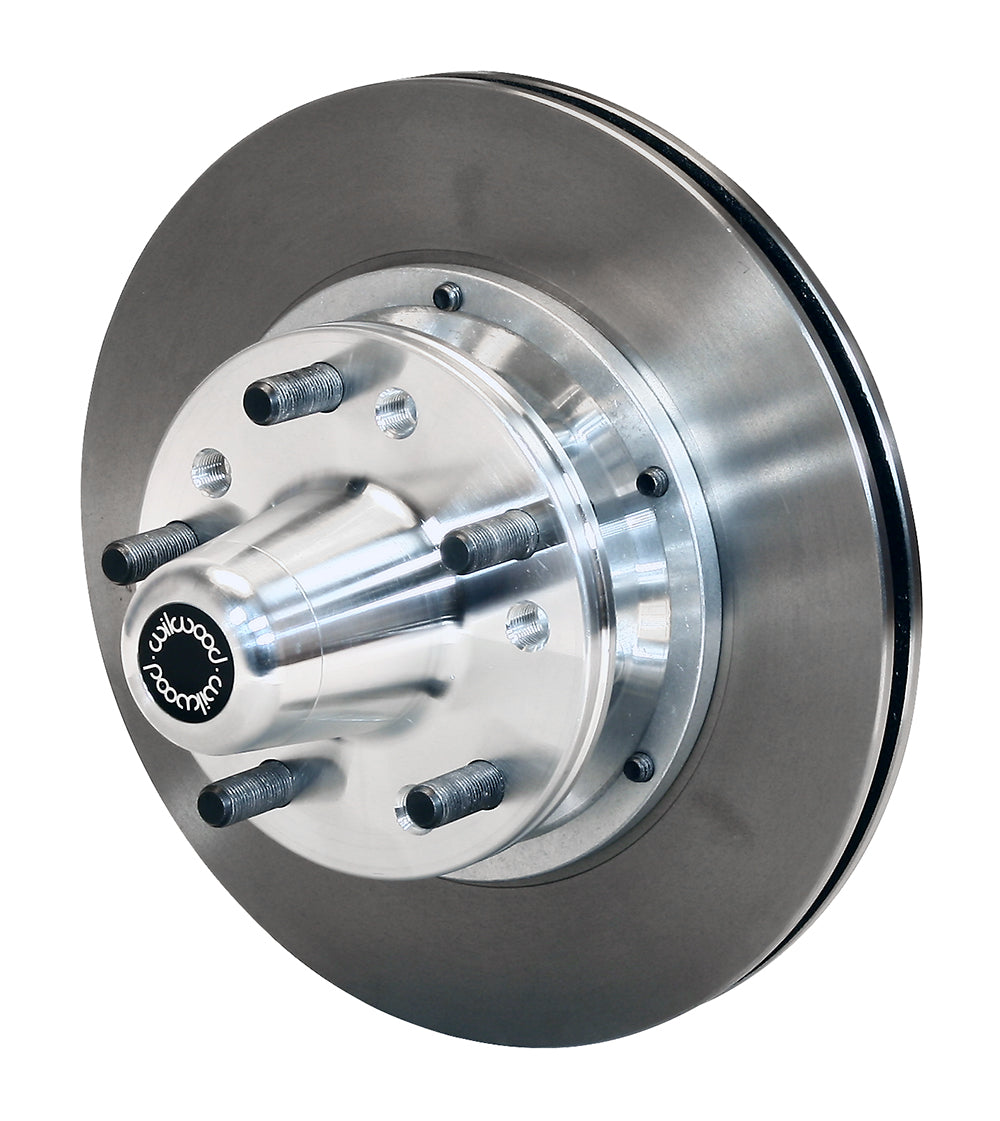

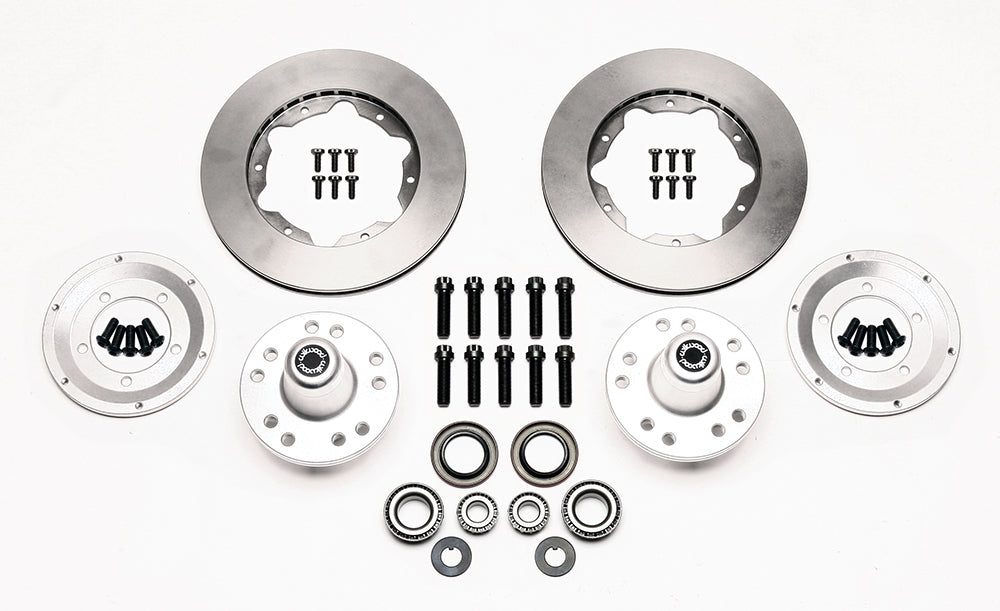

This front spindle hub package supplies plain vented 10.75-inch rotors, aluminum hubs, rotor adapter plates and the associated bearing and attachment parts. It does not contain calipers, caliper brackets or brake pads; those must be selected separately to complete the braking assembly. Wilwood Engineering, established by Bill Wood in 1977 and based today in Camarillo, California, manufactures and designs disc brake systems and their components. The product range covers brake rotors, calipers, valves, master cylinders, brake lines and fittings for motorsport, specialized and street-performance applications. Suitability depends on matching each component to the entire brake system.

Technical Details

• Manufacturer part number — 140-1505.
• Wheel bolt circle — 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Rotor construction and friction surface — Iron; Vented; Plain Face; surface finish: plain vented friction faces.
• Rotor dimensions — outside diameter 10.75 in; 273.05 mm; thickness 0.81 in; 20.57 mm.
• Brake function and supply — Front hub and rotor assembly; Disc braking; front axle; Sold as a kit.
• Conditional wheel-contact requirements — if wheel contact overhangs the hub face, a separately supplied 300-11961 steel spacer (6.60-inch diameter x 0.20-inch thick) MUST be used; stamped-steel wheels with contact fully within the hub face should use the separately supplied 300-10716 hub shield (6.15-inch diameter x 0.09-inch thick).
• Components to provide separately — calipers, caliper brackets, brake pads and flexlines; retain the correct original spindle nut/lock hardware.
• Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.
• Mechanical package contents — separate hubs included; mounting hardware included: Yes; spindles included: No.
• Rotor attachment — separate rotor adapter plates and aluminum wheel hubs; no separate rotor hats.
• Nominal minimum wheel diameter — 15 in; 381 mm; verify full spoke and barrel clearance using the kit drawing.
• Wheel-stud thread — 1/2-20.

Fitment & Compatibility

Use the 1934–1948 early Ford drum-spindle geometry shown in DS287, with the exact bearing and wheel interface verified before assembly. Retain the correct spindle adjusting nut and lock. Wheel-face contact overhanging the hub face requires the separate steel spacer; stamped-steel wheels without overhang should use the specified hub shield. The spindle washer may need its outside diameter ground to let the dust cap seat. Confirm all separately chosen caliper and bracket dimensions.

For a fitment check, give PMB Performance the vehicle details and the actual brake and suspension hardware. Our team has over 20 years of experience working through parts compatibility.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
