Wilwood Red Dynapro Rear Kit with MC4 Parking Calipers and Drilled Rotors for NC Mazda MX-5 Miata, 2006–2015

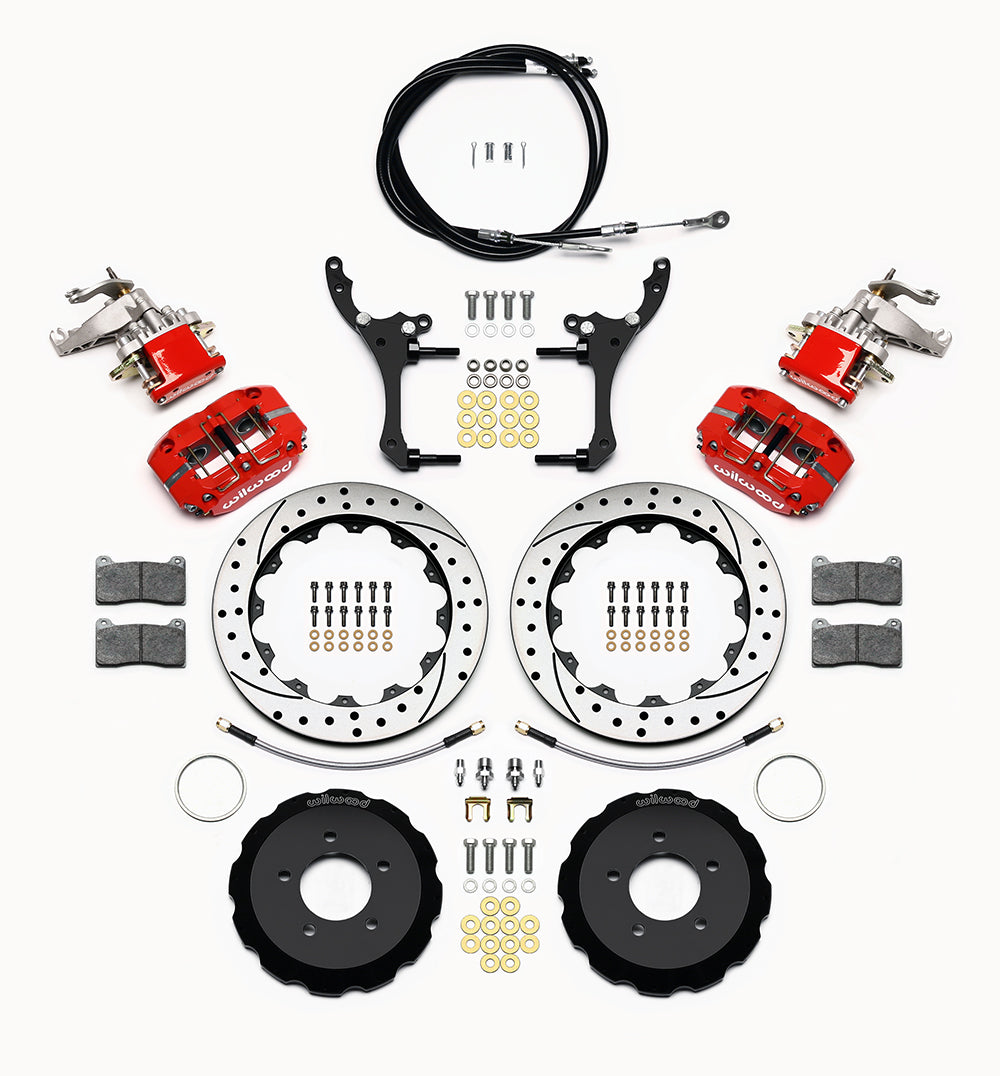

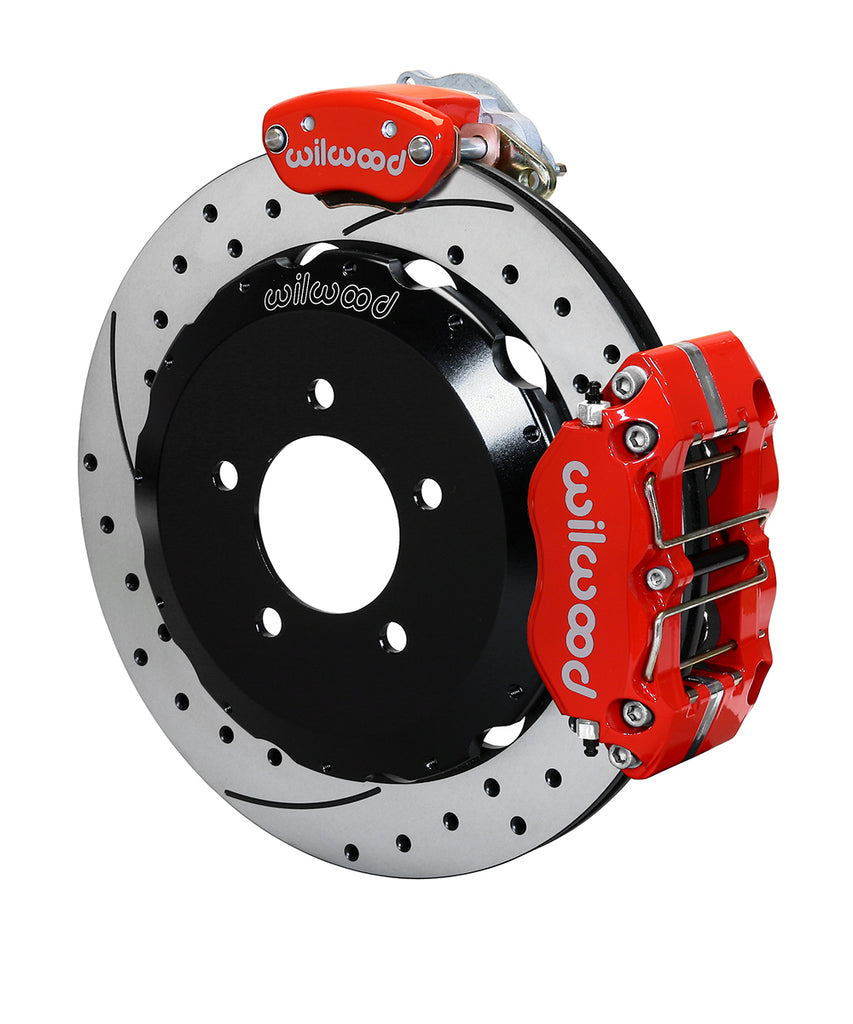

This rear assembly pairs red billet Dynapro service calipers with red MC4 parking calipers and SRP rotor rings. BP-10 pads, aluminum hats, rear hydraulic hoses and the mechanical cable kit are supplied for the verified NC MX-5 application. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc braking systems and components for street-performance, motorsport and specialized use. Its calipers, rotors, master cylinders, valves, fittings and brake lines are chosen around the hydraulic, mounting and balance needs of a complete system.

Technical Details

• Manufacturer part number — 140-15034-DR.
• Nominal minimum wheel diameter — 17 in; 431.8 mm; verify full spoke and barrel clearance using the kit drawing.
• Rear flange interface — OEM; axle/flange offset 0.00 in; 0 mm (distinct from rotor-hat offset).
• Hydraulic package contents — brake lines included: Yes; master cylinder included: No; booster included: No.
• Mechanical parking system — separate MC4 parking calipers; included cable kit 330-15044.
• Rotor dimensions — outside diameter 12.88 in; 327.15 mm; thickness 0.81 in; 20.57 mm.
• Service caliper assembly — Narrow Dynapro Radial; 4 pistons in each caliper; Stainless pistons; Billet Aluminium body; Radial mounting.
• Supplied pad compound — BP-10.
• Hat wheel-stud clearance diameter — 0.520 in; 13.21 mm.
• Rotor mounting hat — aluminum; Black E-Coat; hat offset 0.810 in.
• Mechanical package contents — no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Flexline specification — Line kit included (manufacturer): 220-15043 (12.00 in); Rear line-kit reference: 220-15043.
• Brake function and supply — Rear Brake Kits - Street Performance; Disc; Parking braking; rear axle; Sold as a kit.
• Rotor construction and friction surface — Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
• Caliper color, finish and hydraulic inlet — Red; Red Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle — 5 x 4.5 in; 5 x 114.3 mm.

Fitment & Compatibility

Confirm the actual NC year, trim and unmodified hub interface against the applications below. The installation calls for dust-shield trimming before the rotor assemblies are fitted. Use DS1106 to place the driver/passenger cables and check hose travel, parking operation and wheel clearance.

Listed model families are MX-5 Miata; the individual year and brake/spindle conditions remain decisive. Use the fitment table below to confirm year, model, trim and brake or suspension options.

With more than 20 years of parts experience, PMB Performance can help review the specified brake arrangement. Include the vehicle year and details of any hub, spindle or suspension changes.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
