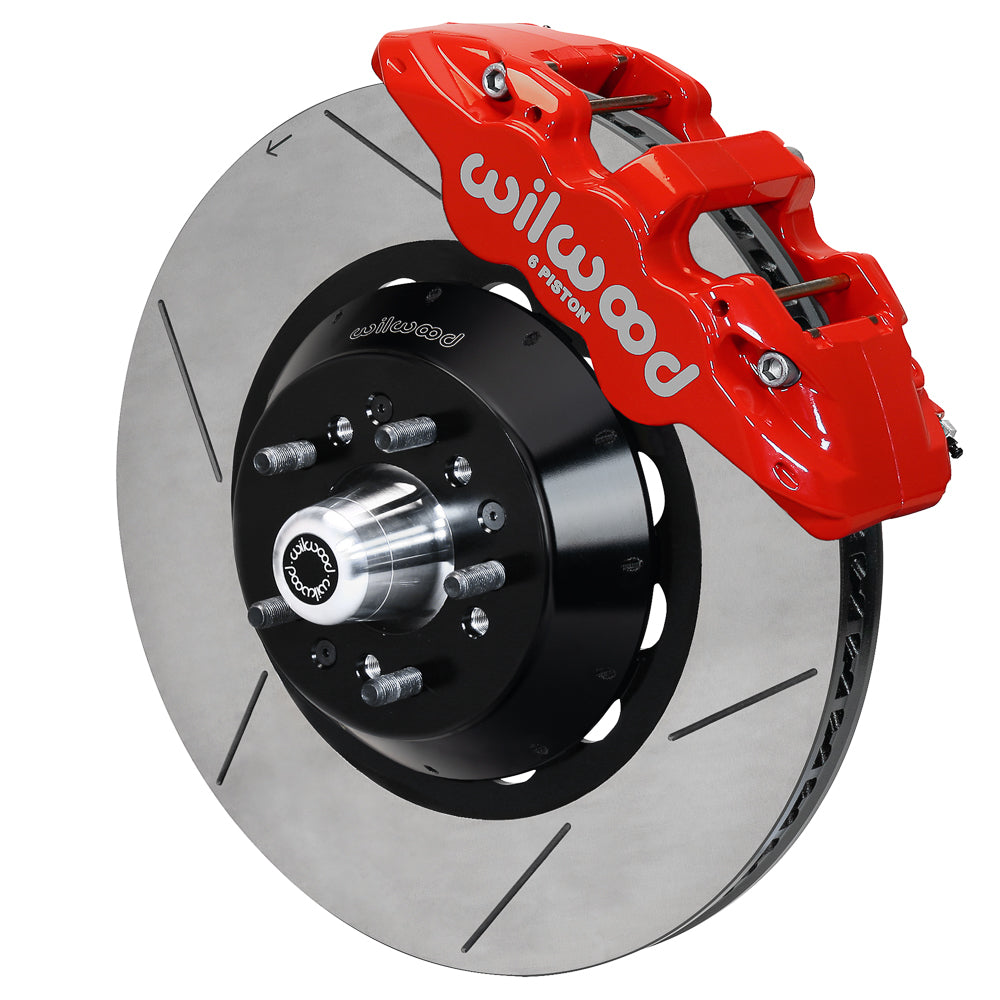

Wilwood Red-Caliper AERO6 Front System with GT 15-Inch Rotors and Dual-Pattern Hubs for ProSpindle Applications

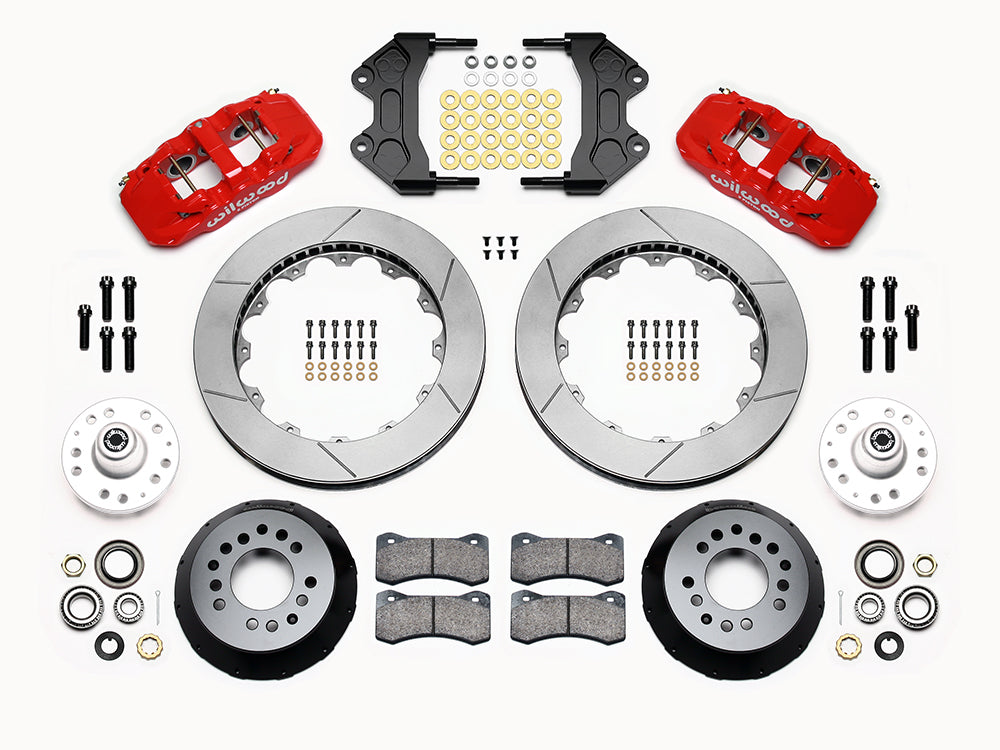

A 15-inch GT rotor assembly and red AERO6 caliper are supplied for each front corner, together with aluminum hubs, bearing parts and mounting hardware. BP-20 pads suit the documented configuration, while the separate hat and rotor ring retain the specified two-piece construction. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, with each part selected to match the complete brake system.

Technical Details

• Manufacturer part number — 140-15025-R.
• Rotor mounting hat — aluminum; Black E-Coat; hat offset 1.750 in.
• Mechanical package contents — separate hubs included; mounting hardware included: Yes; spindles included: No.
• Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor construction and friction surface — Spec-37 Iron; Vented; GT Slotted; surface finish: Black Electro Coat.
• Caliper color, finish and hydraulic inlet — Red; Red Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle — 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Nominal minimum wheel diameter — 19 in; 482.6 mm; verify full spoke and barrel clearance using the kit drawing.
• Stated OE wheel-hub offset — +.68 in; verify the documented spindle and reference geometry.
• Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.
• Rotor dimensions — outside diameter 15.00 in; 381 mm; thickness 1.25 in; 31.75 mm.
• Service caliper assembly — AERO6; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Supplied pad compound — BP-20.
• Wheel-stud thread — 1/2-20.

Fitment & Compatibility

This package requires the Wilwood ProSpindle installation shown in DS1100, rather than a general factory-disc spindle. Check the correct drop or standard-height assembly, +0.68-inch hub offset, wheel bolt pattern and complete brake-to-wheel clearance. Hoses are not included.

For a fitment check, give PMB Performance the vehicle details and the actual brake and suspension hardware. Our team has over 20 years of experience working through parts compatibility.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
