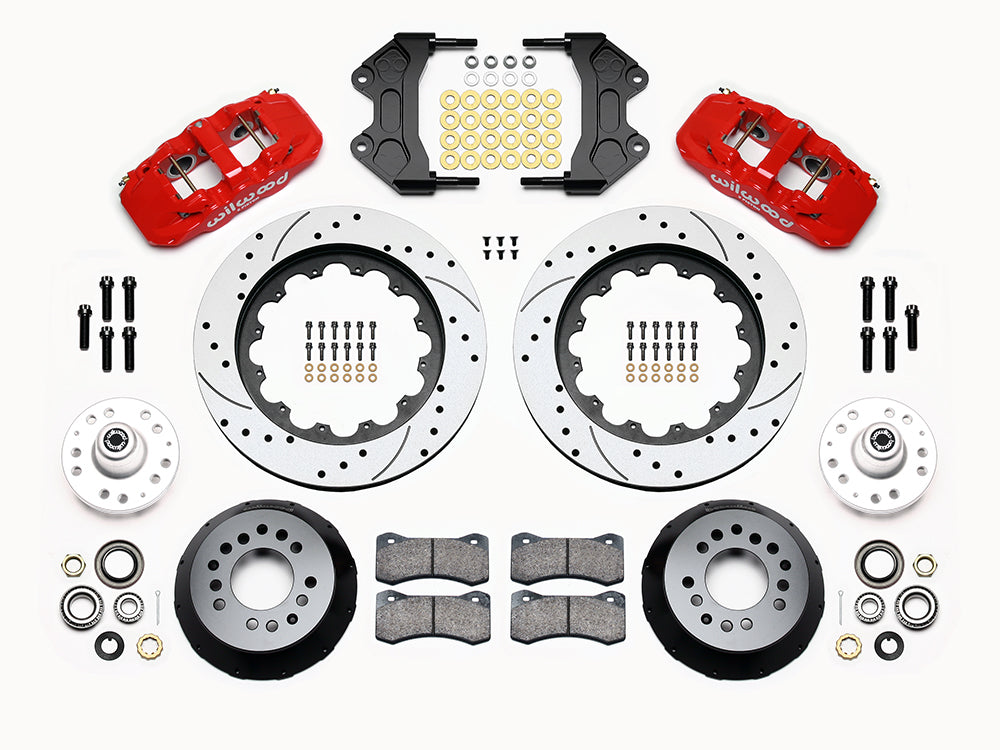

Wilwood AERO6 ProSpindle front kit layout with red AERO6 calipers, 15.00-inch drilled-and-slotted rotors, aluminum hats, separate hubs, pads, bearings and mounting hardware

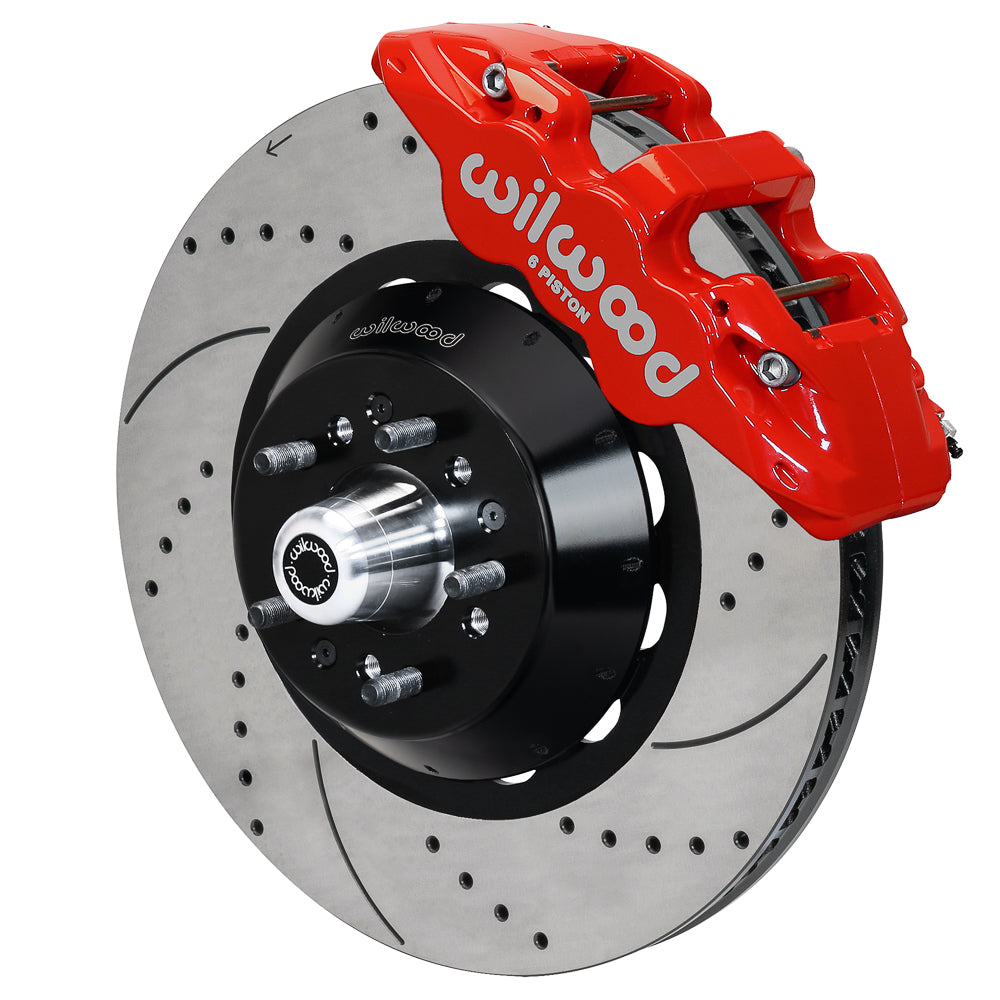

Wilwood AERO6 ProSpindle front assembly with a red AERO6 caliper, 15.00-inch drilled-and-slotted rotor and central wheel hub with studs
Wilwood AERO6 ProSpindle front kit layout with red AERO6 calipers, 15.00-inch drilled-and-slotted rotors, aluminum hats, separate hubs, pads, bearings and mounting hardware
Wilwood AERO6 ProSpindle front assembly with a red AERO6 caliper, 15.00-inch drilled-and-slotted rotor and central wheel hub with studs

Wilwood ProSpindle Front Disc Package, Red AERO6 Calipers with Drilled 15 x 1.25-Inch Rotors, Hats and Hubs

SKU: 140-15025-DR

$2,952.11 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red six-piston calipers, BP-10 pads and SRP rotor rings form the service-brake portion of this ProSpindle conversion. The supplied aluminum hats and hubs provide the specified five-lug interfaces; the front spindle and hydraulic flexlines remain separate purchases. Wilwood Engineering is based in Camarillo, California; Bill Wood founded the company in 1977. Disc brake system design and manufacturing includes calipers, rotors, master cylinders, pressure valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for how the complete brake system mounts, operates and balances.

Technical Details

  • Manufacturer part number — 140-15025-DR.
  • Wheel bolt circle — 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
  • Supplied pad compound — BP-10.
  • Caliper color, finish and hydraulic inlet — Red; Red Powder Coat; inlet 1/8-27 NPT.
  • Service caliper assembly — AERO6; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
  • Rotor construction and friction surface — Spec-37 Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
  • Rotor dimensions — outside diameter 15.00 in; 381 mm; thickness 1.25 in; 31.75 mm.
  • Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
  • Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.
  • Mechanical package contents — separate hubs included; mounting hardware included: Yes; spindles included: No.
  • Stated OE wheel-hub offset — +.68 in; verify the documented spindle and reference geometry.
  • Rotor mounting hat — aluminum; Black E-Coat; hat offset 1.750 in.
  • Nominal minimum wheel diameter — 19 in; 482.6 mm; verify full spoke and barrel clearance using the kit drawing.
  • Wheel-stud thread — 1/2-20.

Fitment & Compatibility

Identify the exact Wilwood ProSpindle before assembly and follow its corresponding DS1100 configuration. Compare wheel-face position, 15-inch rotor clearance and the nominal 19-inch wheel requirement. Verify line length and chassis fittings for the actual vehicle.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
