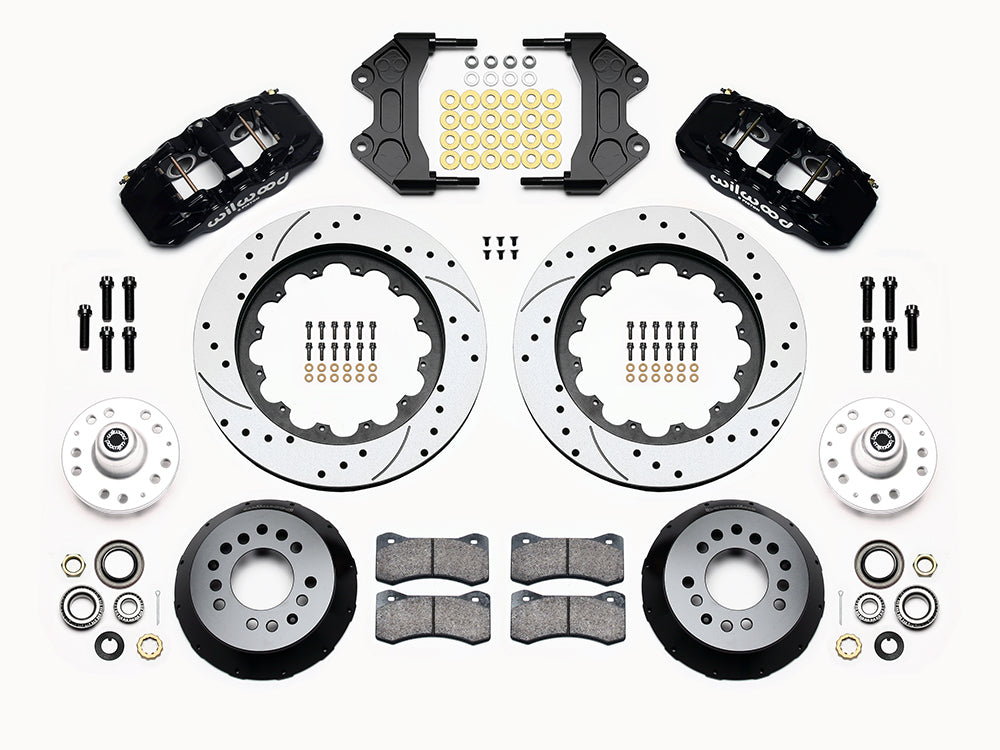

Wilwood AERO6 ProSpindle front kit layout with black AERO6 calipers, 15.00-inch drilled-and-slotted rotors, aluminum hats, separate hubs, pads, bearings and mounting hardware

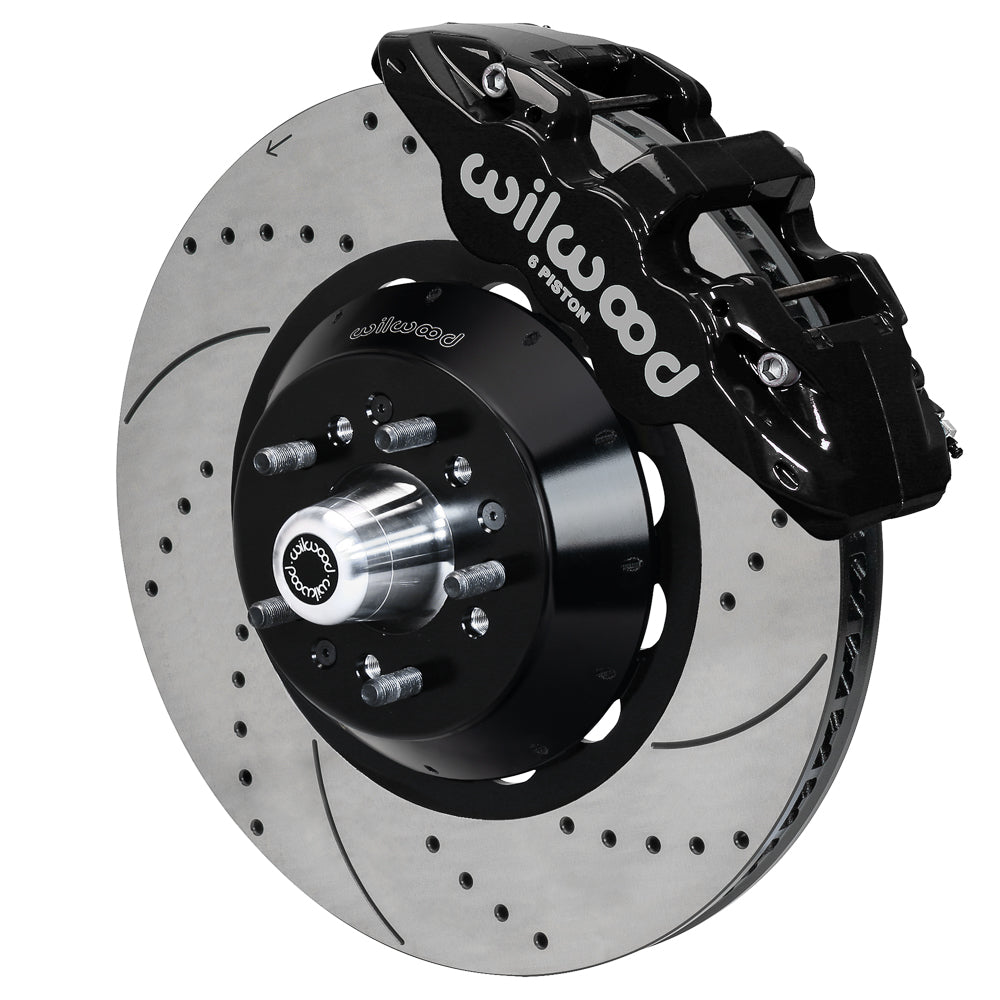

Wilwood AERO6 ProSpindle front assembly with a black AERO6 caliper, 15.00-inch drilled-and-slotted rotor and central wheel hub with studs
Wilwood AERO6 ProSpindle front kit layout with black AERO6 calipers, 15.00-inch drilled-and-slotted rotors, aluminum hats, separate hubs, pads, bearings and mounting hardware
Wilwood AERO6 ProSpindle front assembly with a black AERO6 caliper, 15.00-inch drilled-and-slotted rotor and central wheel hub with studs

Wilwood Drilled 15-Inch Disc Conversion with Black AERO6 Calipers and Hubs, Specified ProSpindle Front Suspension

SKU: 140-15025-D

$2,952.11 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The SRP version places drilled-and-slotted Spec-37 rotor rings on aluminum hats and includes the matching front hubs. Black AERO6 calipers use BP-10 pads here, so the pad specification differs from the GT configuration. This is a brake package for the specified Wilwood spindle system. Founded by Bill Wood in 1977, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems plus their individual components. Its work serves specialized applications, motorsport and street-performance vehicles, with a range of calipers, brake rotors, master cylinders, valves, fittings and brake lines. A compatible complete system governs the selection of each part.

Technical Details

  • Manufacturer part number: 140-15025-D.
  • Supplied pad compound: BP-10.
  • Wheel bolt circle: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
  • Wheel-stud thread: 1/2-20.
  • Nominal minimum wheel diameter: 19 in; 482.6 mm; verify full spoke and barrel clearance using the kit drawing.
  • Rotor mounting hat: aluminum; Black E-Coat; hat offset 1.750 in.
  • Stated OE wheel-hub offset: +.68 in; verify the documented spindle and reference geometry.
  • Mechanical package contents: separate hubs included; mounting hardware included: Yes; spindles included: No.
  • Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
  • Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
  • Rotor dimensions: outside diameter 15.00 in; 381 mm; thickness 1.25 in; 31.75 mm.
  • Rotor construction and friction surface: Spec-37 Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
  • Service caliper assembly: AERO6; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
  • Caliper color, finish and hydraulic inlet: Black; Black Powder Coat; inlet 1/8-27 NPT.

Fitment & Compatibility

DS1100 shows the permitted standard-height and drop ProSpindle layouts; neither spindle set nor hoses come in this brake kit. Allow for the stated outward hub shift, confirm the wheel bolt circle and use the full clearance drawing before choosing wheels.

For a fitment check, give PMB Performance the vehicle details and the actual brake and suspension hardware. Our team has over 20 years of experience working through parts compatibility.

Check the Installation instructions for the full assembly and wheel-clearance requirements.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
