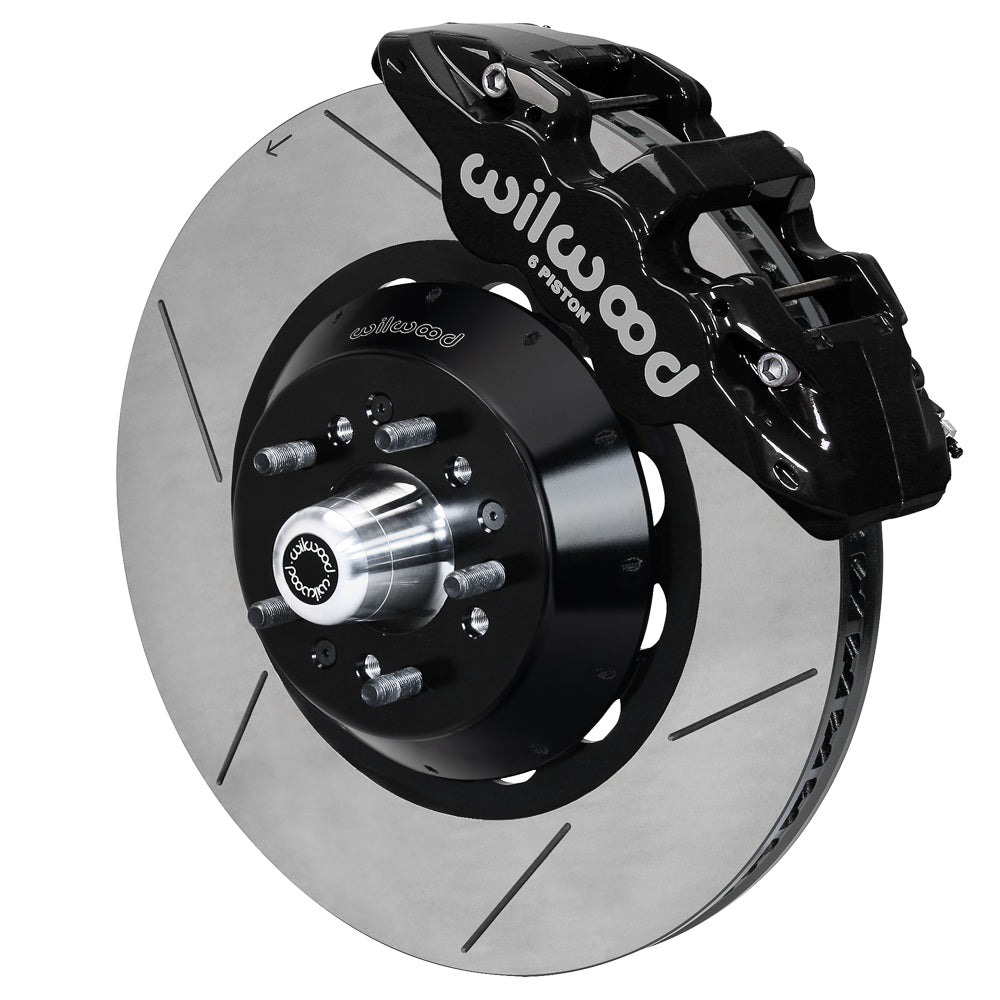

Wilwood AERO6 Front Brake Kit for ProSpindle, Black Six-Piston Calipers, 15-Inch GT Rotors and Aluminum Hubs

For a front end built around Wilwood ProSpindles, this assembly combines black AERO6 calipers, 15-inch slotted rotors and separate aluminum hubs. Its two-piece rotor-and-hat construction and six-piston service calipers are supplied with BP-20 pads for the documented spindle installation. Wilwood Engineering has designed and manufactured disc brake systems and components since its founding by Bill Wood in 1977. The company is based in Camarillo, California, and serves motorsport, street-performance and specialized applications. Its calipers, rotors, hydraulic master cylinders, valves, fittings and brake lines need to be matched to the complete system in which they operate.

Technical Details

• Manufacturer part number: 140-15025.
• Caliper color, finish and hydraulic inlet: Black; Black Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Nominal minimum wheel diameter: 19 in; 482.6 mm; verify full spoke and barrel clearance using the kit drawing.
• Stated OE wheel-hub offset: +.68 in; verify the documented spindle and reference geometry.
• Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
• Rotor dimensions: outside diameter 15.00 in; 381 mm; thickness 1.25 in; 31.75 mm.
• Service caliper assembly: AERO6; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Supplied pad compound: BP-20.
• Wheel-stud thread: 1/2-20.
• Rotor mounting hat: aluminum; Black E-Coat; hat offset 1.750 in.

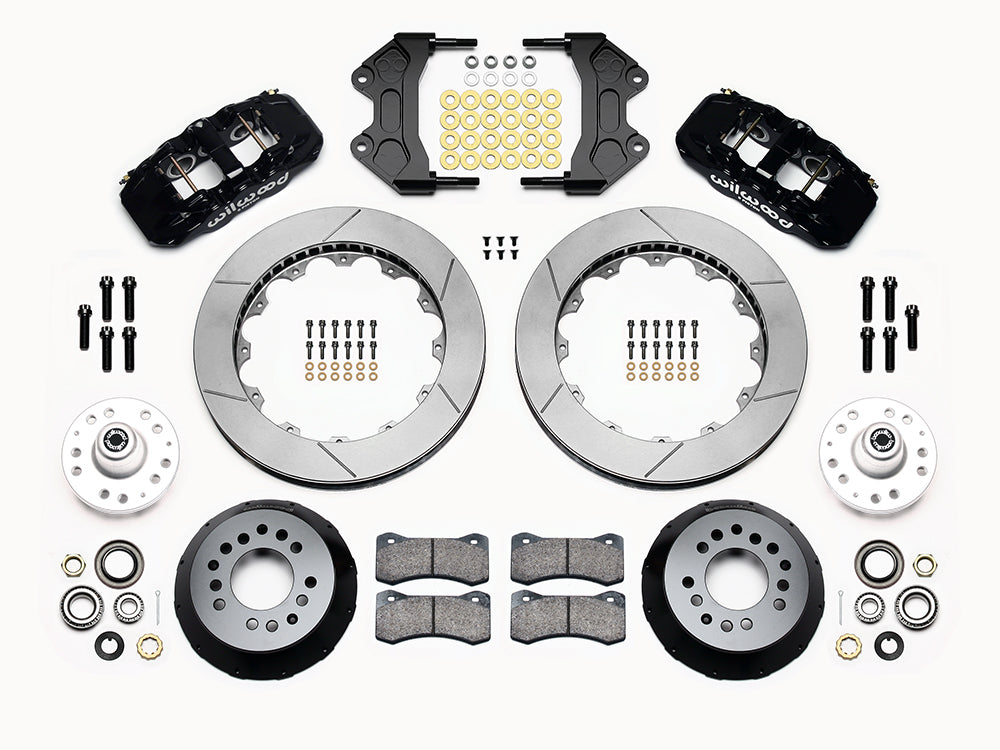

• Mechanical package contents: separate hubs included; mounting hardware included: Yes; spindles included: No.
• Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor construction and friction surface: Spec-37 Iron; Vented; GT Slotted; surface finish: Black Electro Coat.

Fitment & Compatibility

Use only the ProSpindle configurations in DS1100, which distinguishes drop and standard-height spindle assembly. The spindles are purchased separately. Check the +0.68-inch hub offset, selected five-lug pattern and 19-inch wheel template; order suitable flexlines separately.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
