Wilwood Front Dynalite-M Disc Brake Kit for MG TD (1950–1953) and TF (1954–1955), Black Calipers, Plain 10.75-Inch Rotors and Five-Lug Hubs

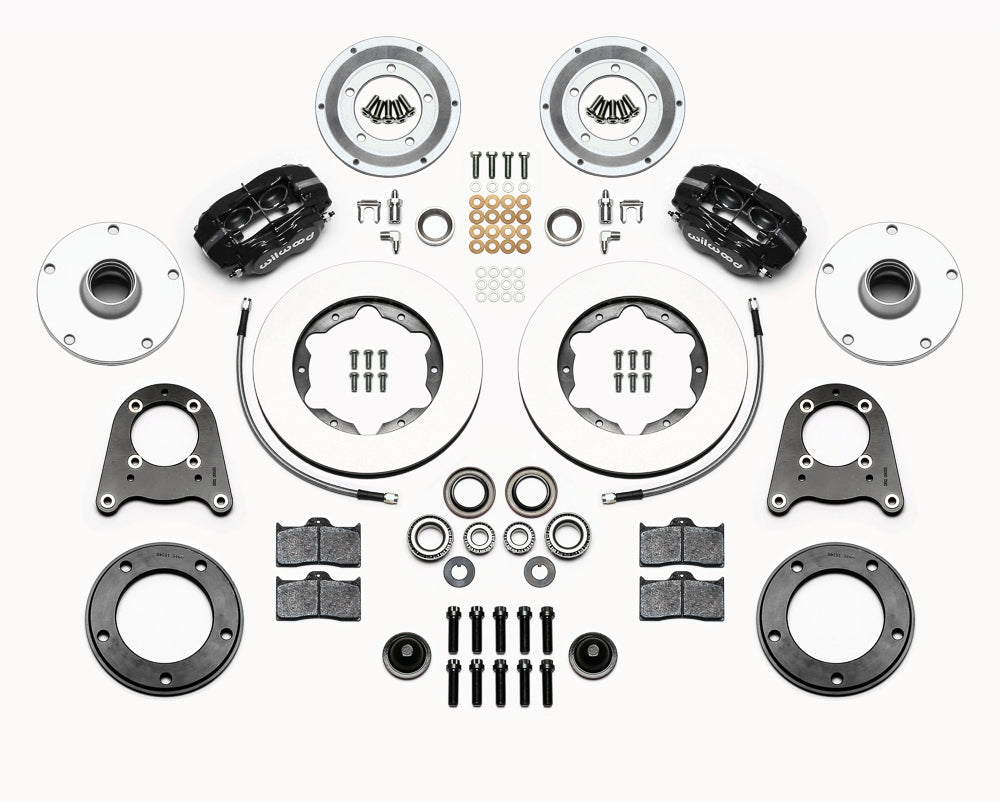

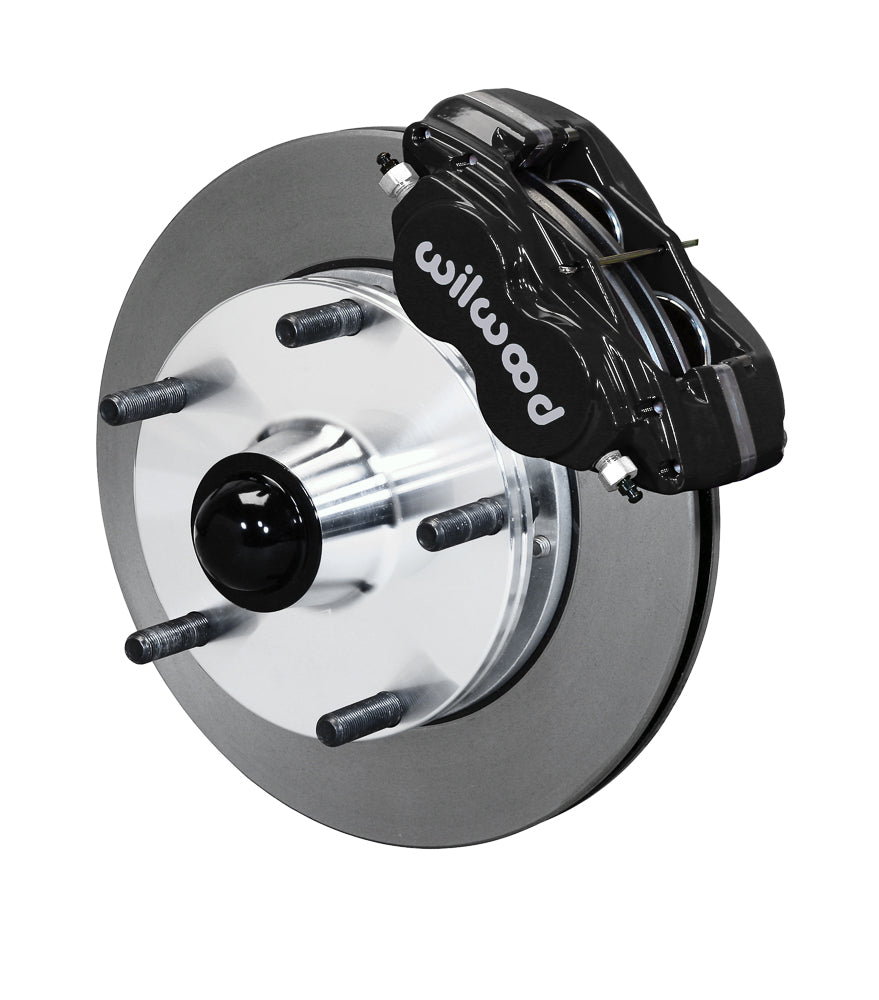

This MG front conversion combines black Dynalite-M calipers with plain 10.75-inch rotors, aluminum hubs and rotor adapter plates. It retains the matched TD/TF drum spindles while changing the wheel interface to the specified five-lug pattern, with front hoses included. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc braking systems and components for street-performance, motorsport and specialized use. Its calipers, rotors, master cylinders, valves, fittings and brake lines are chosen around the hydraulic, mounting and balance needs of a complete system.

Technical Details

• Manufacturer part number — 140-15020.
• Service caliper assembly — Forged Dynalite-M; 4 pistons in each caliper; Stainless pistons; Forged Aluminium body; Lug mounting.
• Supplied pad compound — BP-10.
• Wheel-stud thread — 1/2-20.
• Rotor attachment — separate rotor adapter plates and aluminum wheel hubs; no separate rotor hats.
• Mechanical package contents — separate hubs included; mounting hardware included: Yes; spindles included: No.
• Flexline specification — Line kit included (manufacturer): 220-15157 (14.00 in); Front line-kit reference: 220-15157.
• Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor construction and friction surface — Iron; Vented; Plain Face; surface finish: Plain.
• Caliper color, finish and hydraulic inlet — Black; Black Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle — 5 x 6 in; 5 x 152.4 mm.
• Nominal minimum wheel diameter — 14 in; 355.6 mm; verify full spoke and barrel clearance using the kit drawing.
• Stated OE wheel-hub offset — +.38 in; verify the documented spindle and reference geometry.
• Hydraulic package contents — brake lines included: Yes; master cylinder included: No; booster included: No.
• Mandatory included wheel spacers — 0.50-inch-thick wheel spacers 300-15146 are supplied and must be installed over the wheel studs per DS1118.
• Rotor dimensions — outside diameter 10.75 in; 273.05 mm; thickness 0.81 in; 20.57 mm.

Fitment & Compatibility

The listed application is MG TD 1950–1953 and TF 1954–1955. Original knock-off wheels do not fit. DS1118 requires removal of the internal residual valve when retaining the OE single-circuit master cylinder, with the correct external residual valves assessed for the low-mounted master. Account for +0.38 inch of outward hub offset per side.

Listed model families are TD, TF; the individual year and brake/spindle conditions remain decisive. Use the fitment table below to confirm year, model, trim and brake or suspension options.

DS1118 requires the supplied 0.50-inch wheel spacers to be installed. Their use is mandatory; verify wheel position and clearance with those spacers fitted.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
