Wilwood Front Dynalite Drag Brake Kit for Specified Early Ford Drum Spindles, Selected 1937–1948 Applications, Anodized Calipers and Drilled 10.75-Inch Steel Rotors

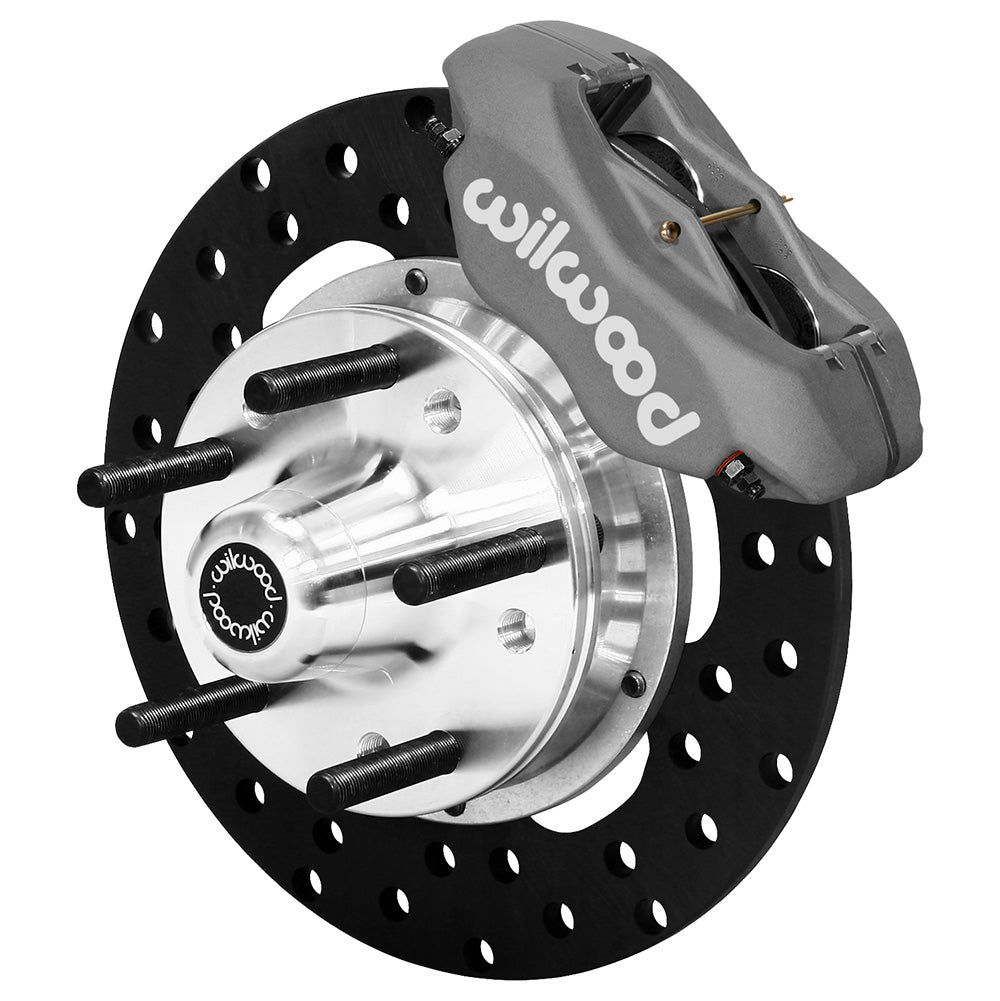

Anodized four-piston Dynalite calipers and thin drilled steel rotors form this early Ford front drag package. Aluminum hubs, bearings, seals, wheel studs and mounting hardware are included, with the brake system's weight allowance depending on the rear brake type. The manufacturer, Wilwood Engineering, was founded by Bill Wood in 1977 and is based in Camarillo, California. It designs and manufactures disc systems and component parts across motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and lines. Those individual parts must be selected in the context of the complete brake system.

Technical Details

• Manufacturer part number: 140-1501-BD.
• Service caliper assembly: Forged Dynalite Internal; 4 pistons in each caliper; Stainless pistons; Forged Aluminium body; Lug mounting.
• Caliper color, finish and hydraulic inlet: Anodize; Type III Anodize; inlet 1/8-27 NPT.
• Supplied pad compound: BP-10.
• Wheel bolt circle: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Wheel-stud thread: 1/2-20.
• Nominal minimum wheel diameter: 15 in; 381 mm; verify full spoke and barrel clearance using the kit drawing.
• Front hub arrangement: aluminum direct/adapter hub assemblies for the specified drum spindle; solid drilled steel rotors.

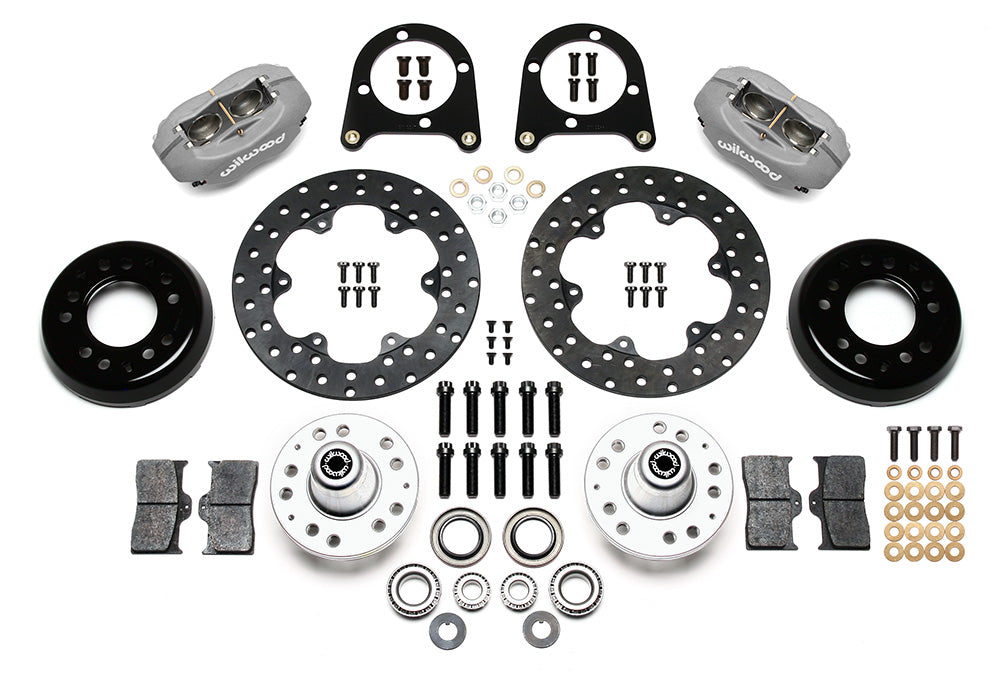

• Mechanical package contents: separate hubs included; mounting hardware included: Yes; spindles included: No.
• Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
• Flexline specification: Line kit included (manufacturer): None; Front line-kit reference: 220-8307.
• Brake function and supply: Front Brake Kits - Drag Race; Disc braking; front axle; Sold as a kit.
• Rotor dimensions: outside diameter 10.75 in; 273.05 mm; thickness 0.35 in; 8.89 mm.
• Rotor construction and friction surface: Steel; Solid; Drilled; surface finish: Black Oxide.

Fitment & Compatibility

Check the actual early Ford drum spindle against DS198 and the individual 1937–1948 model rows. Limits are 2,800 lb with rear disc brakes or 2,400 lb with rear drums. Wheel-face overhang can require the separate specified spacer; verify hub contact, dust-cap washer clearance and the full wheel drawing before racing.

Models represented in the detailed applications: 1 Ton Pickup, 1/2 Ton Pickup, 3/4 Ton Pickup, Model 74, Model 78, Sedan Delivery, Model 81 A, Model 82 A, Model 85, Deluxe, Standard, Pickup, Model 1 GA Truck, Model 11 A, Super Deluxe, Model 2 GA Special, Model 21 A Deluxe. Each is subject to its individual year, trim and brake/suspension condition. Use the fitment table below to confirm year, model, trim and brake or suspension options.

If a different master cylinder is installed, its existing pushrod assembly may need modification to suit that cylinder.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
