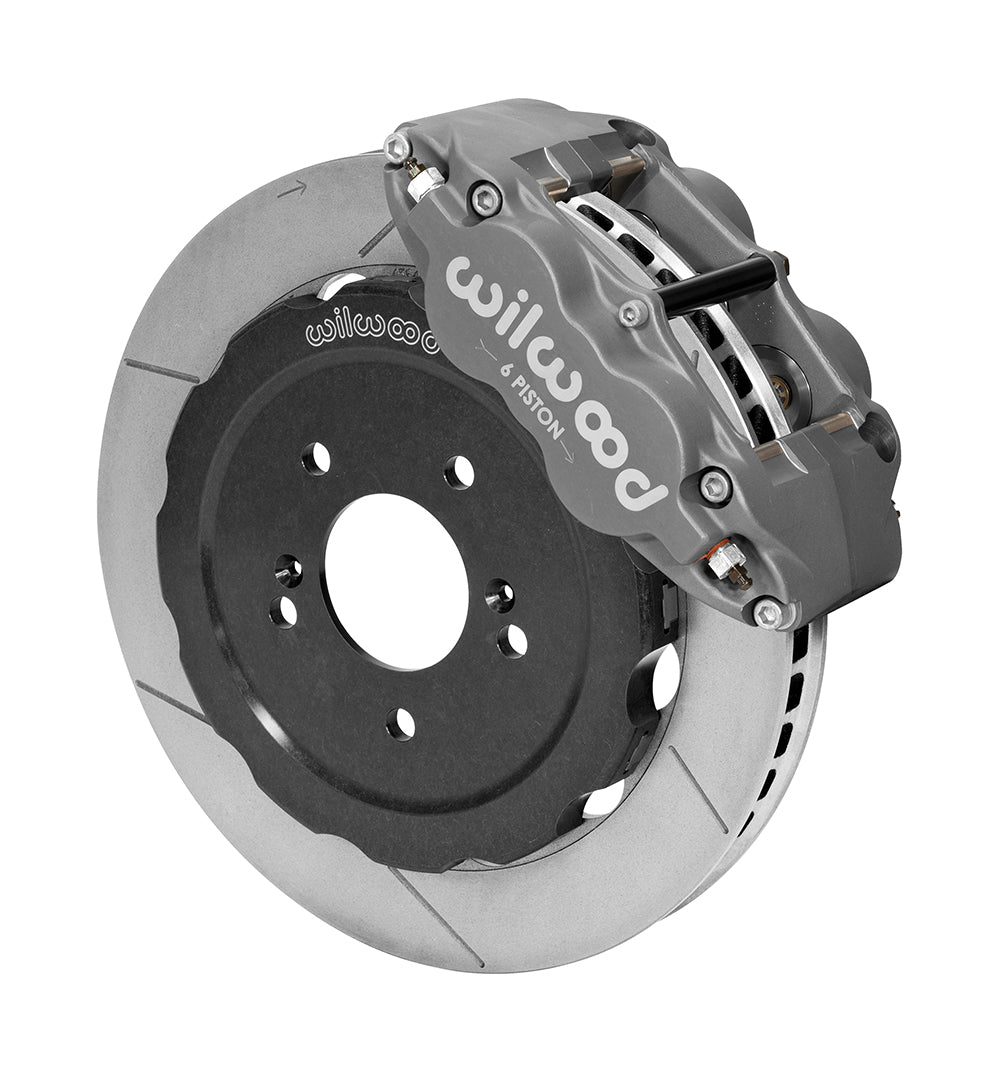

Wilwood Front Superlite 6R/ST Road-Race Kit for Honda S2000 (2000–2009), Thermlock Pistons and Dynamic 12.88-Inch GT Rotors

Six-piston Superlite 6R/ST calipers and dynamic GT rotor assemblies form this S2000 front race package. Thermlock pistons and BP-35 pads suit its high-temperature use, with a dedicated flexline set supplied for the retained original hub configuration. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, with each part selected to match the complete brake system.

Technical Details

• Manufacturer part number: 140-14965.
• Rotor construction and friction surface: Spec-37 Iron; Vented; GT Slotted; surface finish: Plain.
• Service caliper assembly: Forged Superlite 6R; 6 pistons in each caliper; Thermlock pistons; Forged Aluminium body; Radial mounting.
• Caliper color, finish and hydraulic inlet: Anodize; Type III Anodize; inlet 1/8-27 NPT.
• Supplied pad compound: BP-35.
• Wheel bolt circle: 5 x 4.5 in; 5 x 114.3 mm.
• Hat wheel-stud clearance diameter: 0.520 in; 13.21 mm.
• Nominal minimum wheel diameter: 17 in; 431.8 mm; verify full spoke and barrel clearance using the kit drawing.
• Rotor mounting hat: aluminum; Black E-Coat; hat offset 0.390 in.
• Mechanical package contents: no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Hydraulic package contents: brake lines included: Yes; master cylinder included: No; booster included: No.
• Flexline specification: Line kit included (manufacturer): 220-10841 (18.00 in); Front line-kit reference: 220-10841.
• Race pad operating range: BP-35 pads are intended for high-temperature racing; extended low-temperature operation causes premature pad and rotor wear.
• Brake function and supply: Front road-race brake kit; Disc braking; front axle; Sold as a kit.
• Rotor dimensions: outside diameter 12.88 in; 327.15 mm; thickness 1.25 in; 31.75 mm.

Fitment & Compatibility

Confirm the 2000–2009 Honda S2000 hub and spindle interface and compare the full 17-inch wheel drawing. DS1273 distinguishes inverted-flare chassis fittings for 2000–2005 from bubble-flare fittings for 2006–2009. Use the correct supplied adapter rather than selecting by hose thread alone.

Models represented in the detailed applications: S2000. Each is subject to its individual year, trim and brake/suspension condition. Use the fitment table below to confirm year, model, trim and brake or suspension options.

PMB Performance has over 20 years of experience with parts and fitment details. Contact us with the original vehicle specification and any changes to its braking or suspension system.

Check the Installation instructions for the full assembly and wheel-clearance requirements.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
