Wilwood Dynamic 14-Inch GT Front Brake Conversion with Red SX6R Calipers for Listed Mustang (2015–2023) and Ridetech Ford Falcon/Mustang/F-100 or Mercury Comet Applications

The red GT-rotor option supplies SX6R service calipers and 14-inch dynamic rotor assemblies for the documented front hub interface. Aluminum lug-drive hats, bracket hardware, pads and flexible lines form the matched conversion components. Wilwood Engineering has designed and manufactured disc brake systems and components since its founding by Bill Wood in 1977. The company is based in Camarillo, California, and serves motorsport, street-performance and specialized applications. Its calipers, rotors, hydraulic master cylinders, valves, fittings and brake lines need to be matched to the complete system in which they operate.

Technical Details

• Manufacturer part number — 140-14928-R.
• Wheel bolt circle — 5 x 4.5 in; 5 x 114.3 mm.
• Supplied pad compound — PM - ProMatrix.
• Caliper color, finish and hydraulic inlet — Red; Red Powder Coat; inlet 1/8-27 NPT.

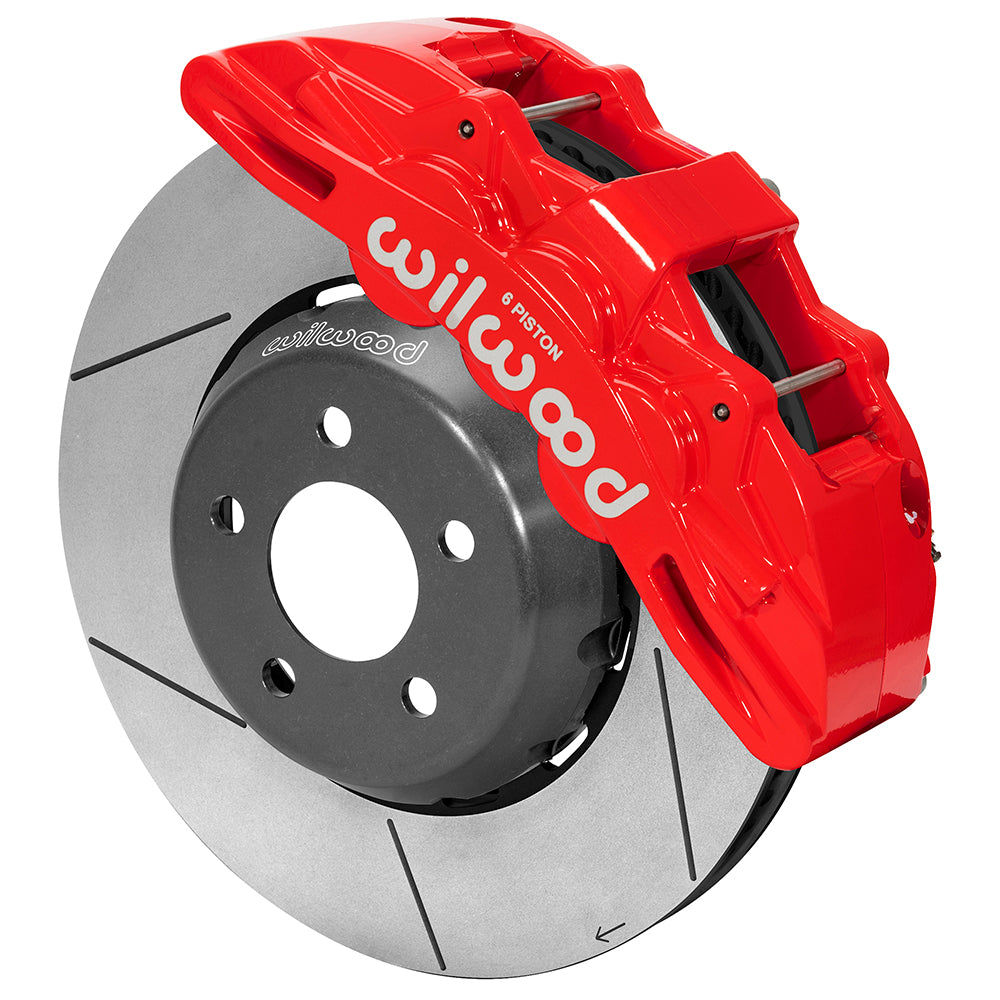

• Service caliper assembly — SX6R; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Rotor construction and friction surface — Spec-37 Iron; Vented; GT Slotted; surface finish: Black Electro Coat.
• Rotor dimensions — outside diameter 14.00 in; 355.6 mm; thickness 1.25 in; 31.75 mm.
• Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Flexline specification — Line kit included (manufacturer): 220-13912 (14.00 in); Front line-kit reference: 220-13912.
• Hydraulic package contents — brake lines included: Yes; master cylinder included: No; booster included: No.
• Mechanical package contents — no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Rotor mounting hat — aluminum; Type III Anodize; hat offset 1.370 in; dynamic lug drive.
• Nominal minimum wheel diameter — 18 in; 457.2 mm; verify full spoke and barrel clearance using the kit drawing.
• Hat wheel-stud clearance diameter — 0.630 in; 16.00 mm.

Fitment & Compatibility

Compare the retained factory Mustang or approved Ridetech hub with the exact application below. Earlier Falcon, Comet, F-100 and Mustang rows require the specified aftermarket suspension rather than a standard original spindle. Confirm the 18-inch wheel envelope and chassis-end hose fit.

The application list names Falcon, Comet, Mustang, F-100. Verify the particular year and suspension/brake option for each model. Use the fitment table below to confirm year, model, trim and brake or suspension options.

Choose any alternative flexline for the actual route and chassis fittings, with enough travel and the correct flare connections.

For a fitment check, give PMB Performance the vehicle details and the actual brake and suspension hardware. Our team has over 20 years of experience working through parts compatibility.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
