Wilwood Red SX6R Front Kit with Drilled 14-Inch Lug-Drive Rotors, Ford Mustang 2015–2023 and Documented Ridetech Falcon/Comet/Mustang/F-100 Conversions

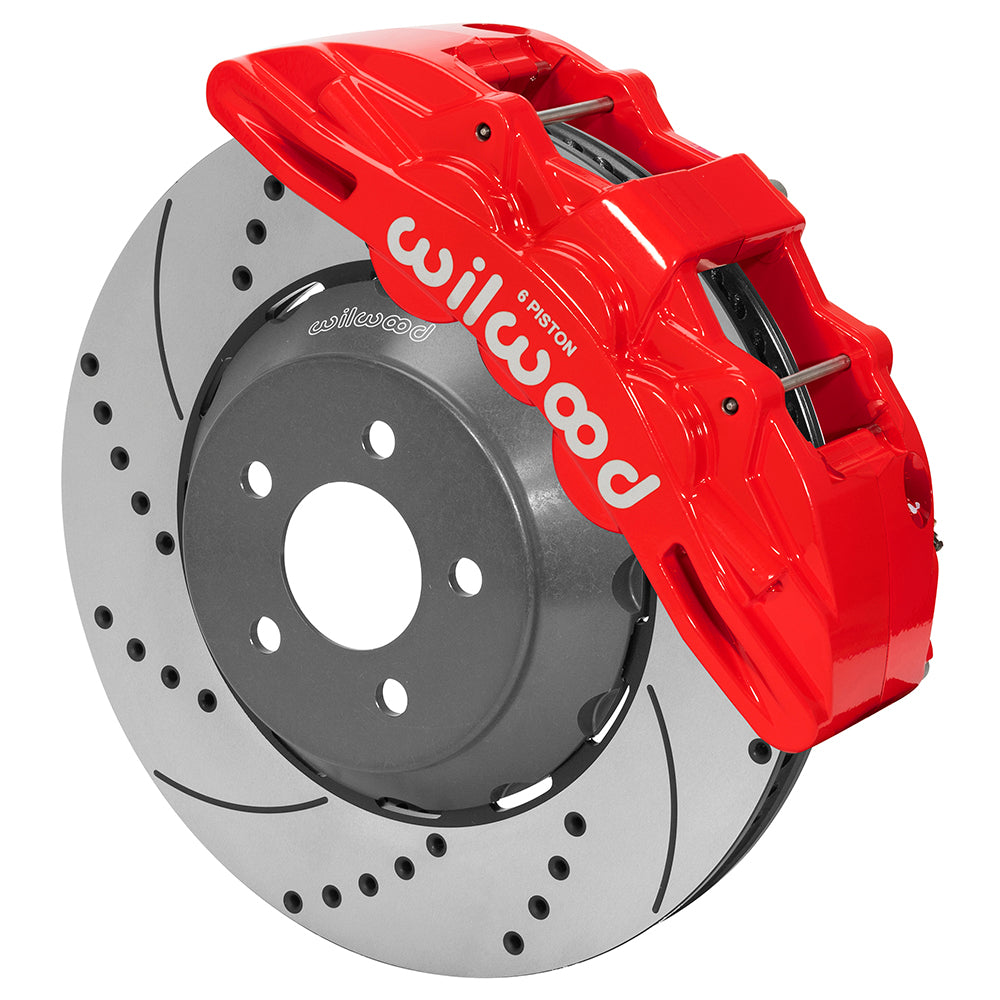

Red SX6R calipers operate drilled-and-slotted 14-inch rotor rings on the dynamic hat system. This version supplies the front brake mounting parts, pads and Mustang-pattern hoses for the exact retained-hub installation specified by Wilwood. The manufacturer, Wilwood Engineering, was founded by Bill Wood in 1977 and is based in Camarillo, California. It designs and manufactures disc systems and component parts across motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and lines. Those individual parts must be selected in the context of the complete brake system.

Technical Details

• Manufacturer part number: 140-14928-DR.
• Supplied pad compound: BP-10.
• Wheel bolt circle: 5 x 4.5 in; 5 x 114.3 mm.
• Hat wheel-stud clearance diameter: 0.630 in; 16.00 mm.
• Nominal minimum wheel diameter: 18 in; 457.2 mm; verify full spoke and barrel clearance using the kit drawing.
• Rotor mounting hat: aluminum; Type III Anodize; hat offset 1.370 in; dynamic lug drive.

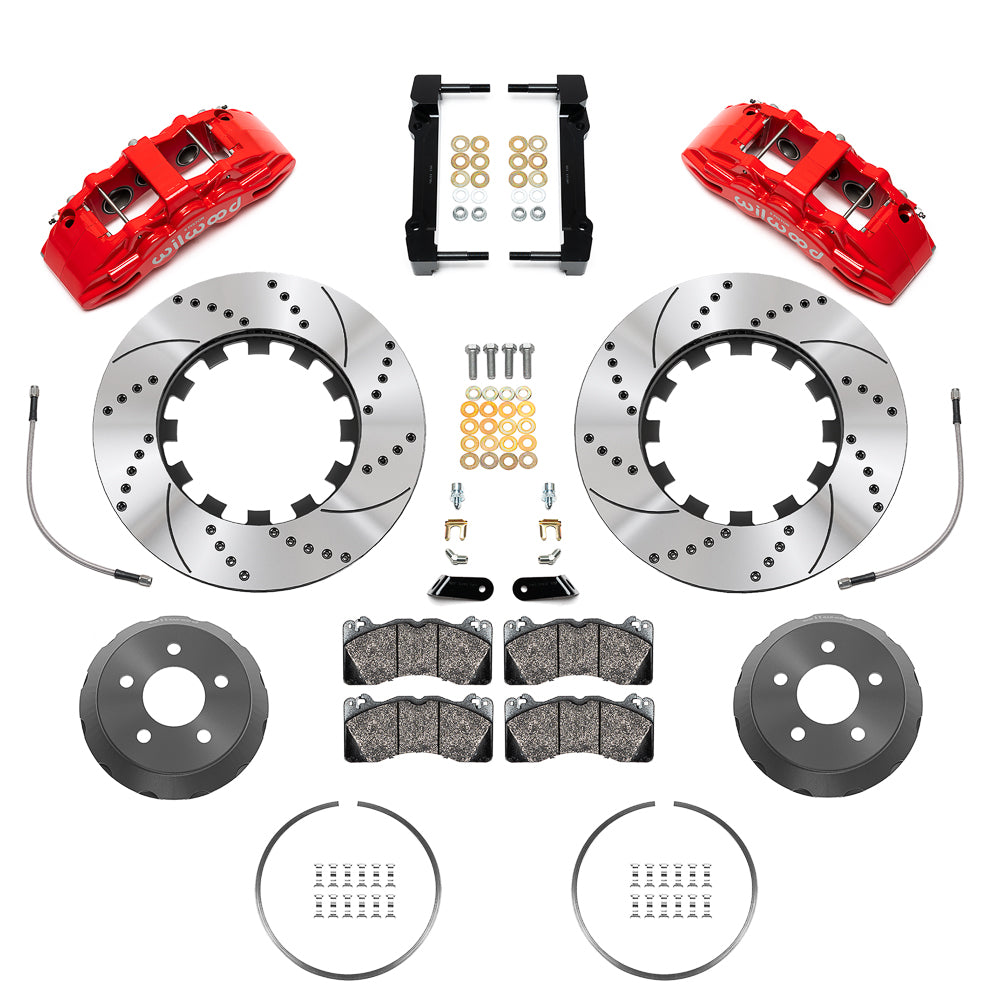

• Mechanical package contents: no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Hydraulic package contents: brake lines included: Yes; master cylinder included: No; booster included: No.
• Flexline specification: Line kit included (manufacturer): 220-13912 (14.00 in); Front line-kit reference: 220-13912.
• Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor dimensions: outside diameter 14.00 in; 355.6 mm; thickness 1.25 in; 31.75 mm.
• Rotor construction and friction surface: Spec-37 Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
• Service caliper assembly: SX6R; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Caliper color, finish and hydraulic inlet: Red; Red Powder Coat; inlet 1/8-27 NPT.

Fitment & Compatibility

Match the actual hub spindle and suspension before choosing by vehicle badge. The modern Mustang entries and earlier Ridetech-equipped Falcon, Comet, F-100 and Mustang applications have distinct conditions. Verify DS1271 clearances and the front line-kit connections on the installed chassis.

Models represented in the detailed applications: Falcon, Comet, Mustang, F-100. Each is subject to its individual year, trim and brake/suspension condition. Use the fitment table below to confirm year, model, trim and brake or suspension options.

Choose any alternative flexline for the actual route and chassis fittings, with enough travel and the correct flare connections.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
