Wilwood Red Superlite/MC4 Rear Kit with Drilled 12.88-Inch Rotors and Mechanical Parking Calipers for 1988–1996 Chevrolet Corvette C4

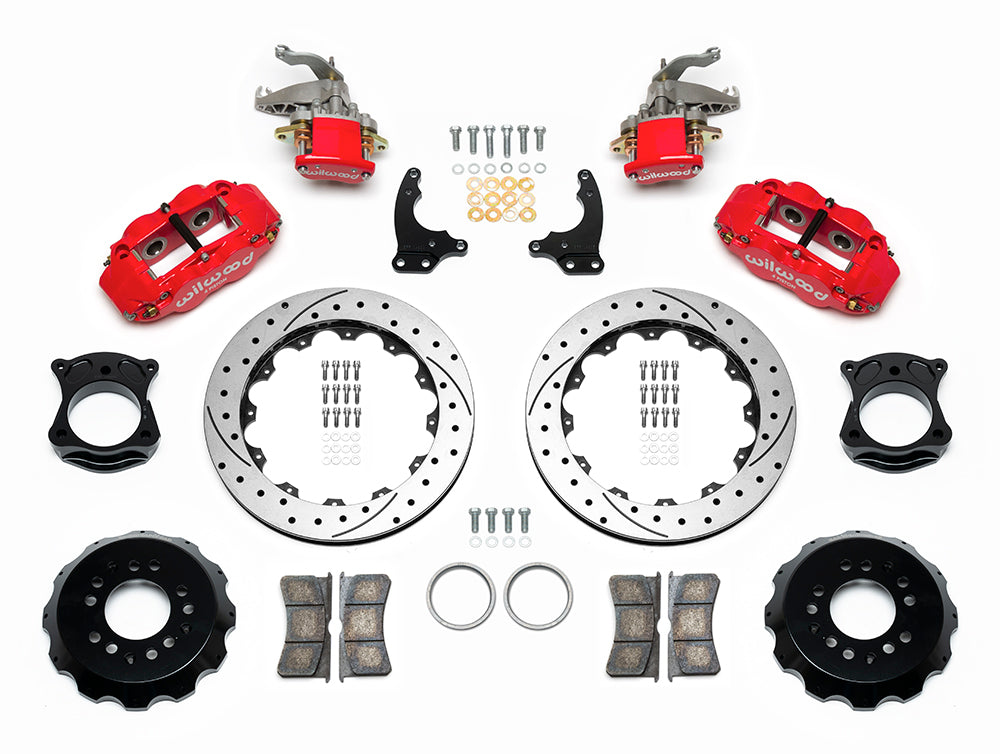

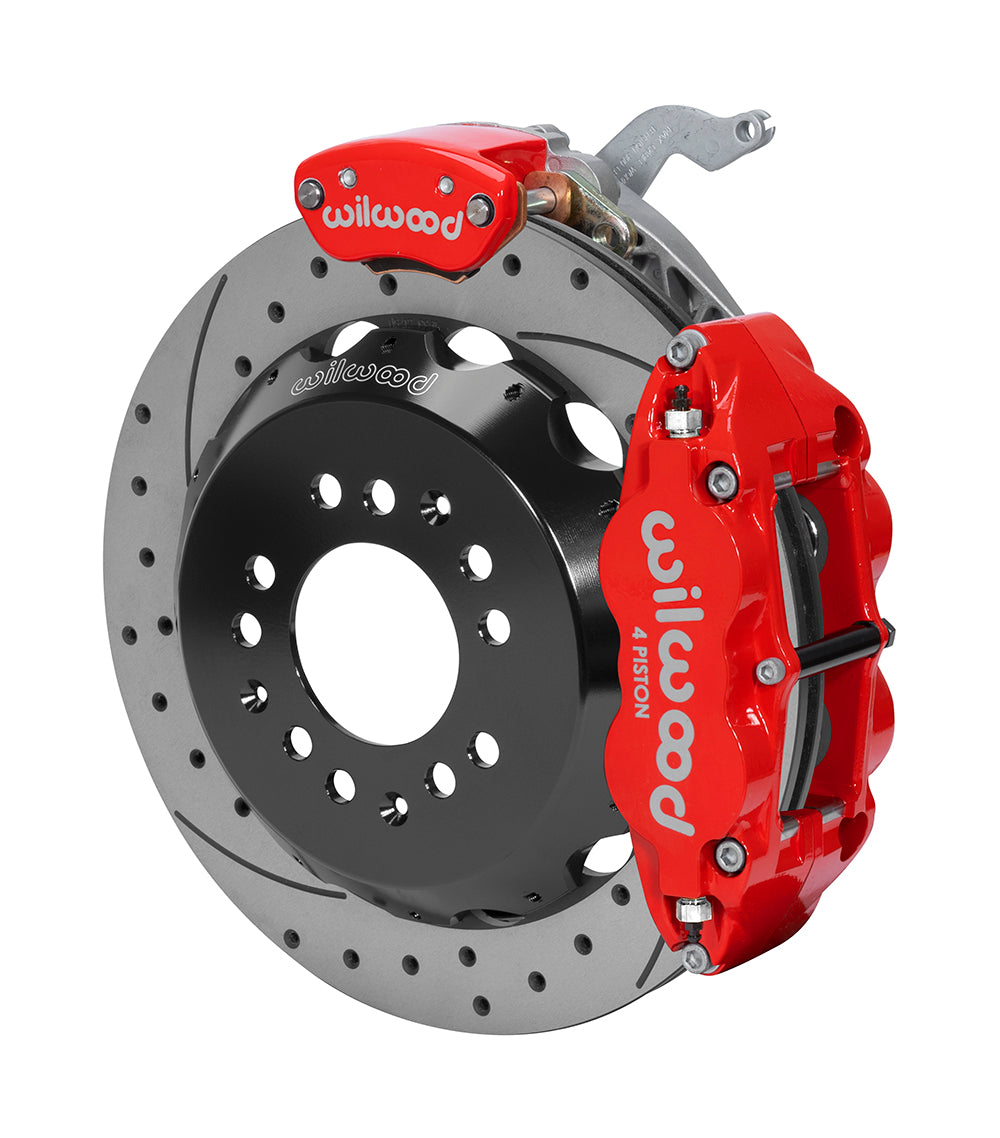

Red Superlite service calipers and red MC4 parking calipers share drilled-and-slotted rear rotors in this C4 package. The mechanical parking system is carried by the auxiliary calipers rather than an internal drum-shoe mechanism. Founded by Bill Wood in 1977, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems plus their individual components. Its work serves specialized applications, motorsport and street-performance vehicles, with a range of calipers, brake rotors, master cylinders, valves, fittings and brake lines. A compatible complete system governs the selection of each part.

Technical Details

• Manufacturer part number — 140-14883-DR.
• Supplied pad compound — BP-10.
• Hat wheel-stud clearance diameter — 0.520 in; 13.21 mm.
• Rotor mounting hat — aluminum; Black E-Coat; hat offset 1.200 in.
• Mechanical package contents — no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Flexline specification — Line kit included (manufacturer): None; Rear line-kit reference: 220-8177.
• Brake function and supply — Rear Brake Kits - Street Performance; Disc; Parking braking; rear axle; Sold as a kit.
• Rotor construction and friction surface — Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
• Caliper color, finish and hydraulic inlet — Red; Red Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle — 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Nominal minimum wheel diameter — 17 in; 431.8 mm; verify full spoke and barrel clearance using the kit drawing.
• Rear flange interface — OEM; axle/flange offset 0.00 in; 0 mm (distinct from rotor-hat offset).
• Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.
• Mechanical parking system — separate MC4 parking calipers; cables purchased separately.
• Rotor dimensions — outside diameter 12.88 in; 327.15 mm; thickness 0.81 in; 20.57 mm.
• Service caliper assembly — Superlite 4R; 4 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.

Fitment & Compatibility

Use the 1988–1996 C4 suspension and hub configuration specified in DS1247. Original Corvette parking cables do not adapt directly to the MC4 units; select the separate production-car or custom-chassis cable kit. Hoses are also separate, and the full 17-inch wheel envelope must clear.

Listed model families are Corvette; the individual year and brake/spindle conditions remain decisive. Use the fitment table below to confirm year, model, trim and brake or suspension options.

For a fitment check, give PMB Performance the vehicle details and the actual brake and suspension hardware. Our team has over 20 years of experience working through parts compatibility.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
