Wilwood Rear Superlite 4R Road-Race Brake Kit for Chevrolet Corvette C4 (1988–1996), Anodized Calipers and 12.88-Inch GT Rotors, Deletes Parking Brake

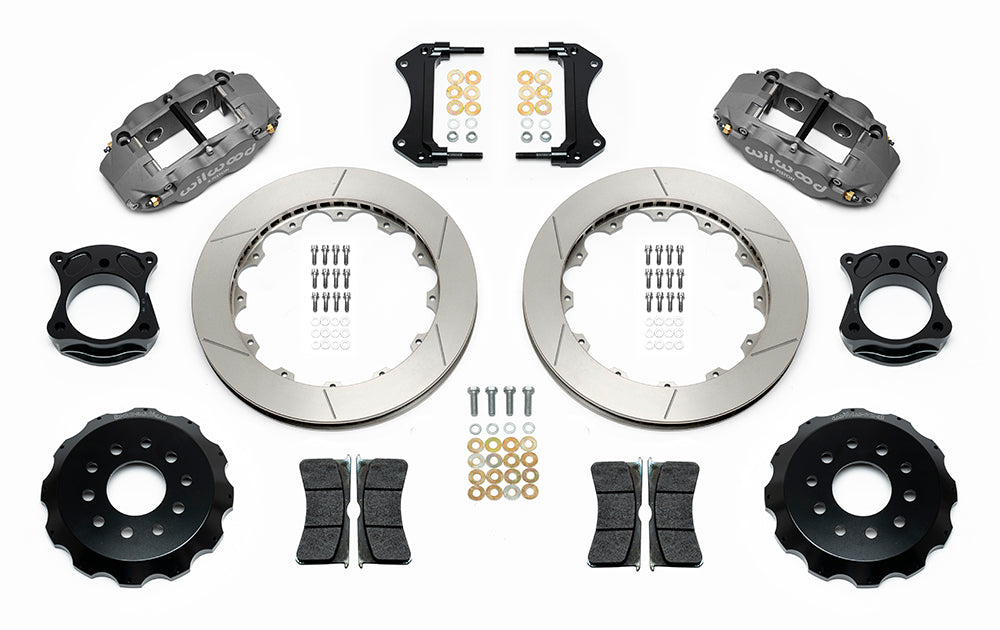

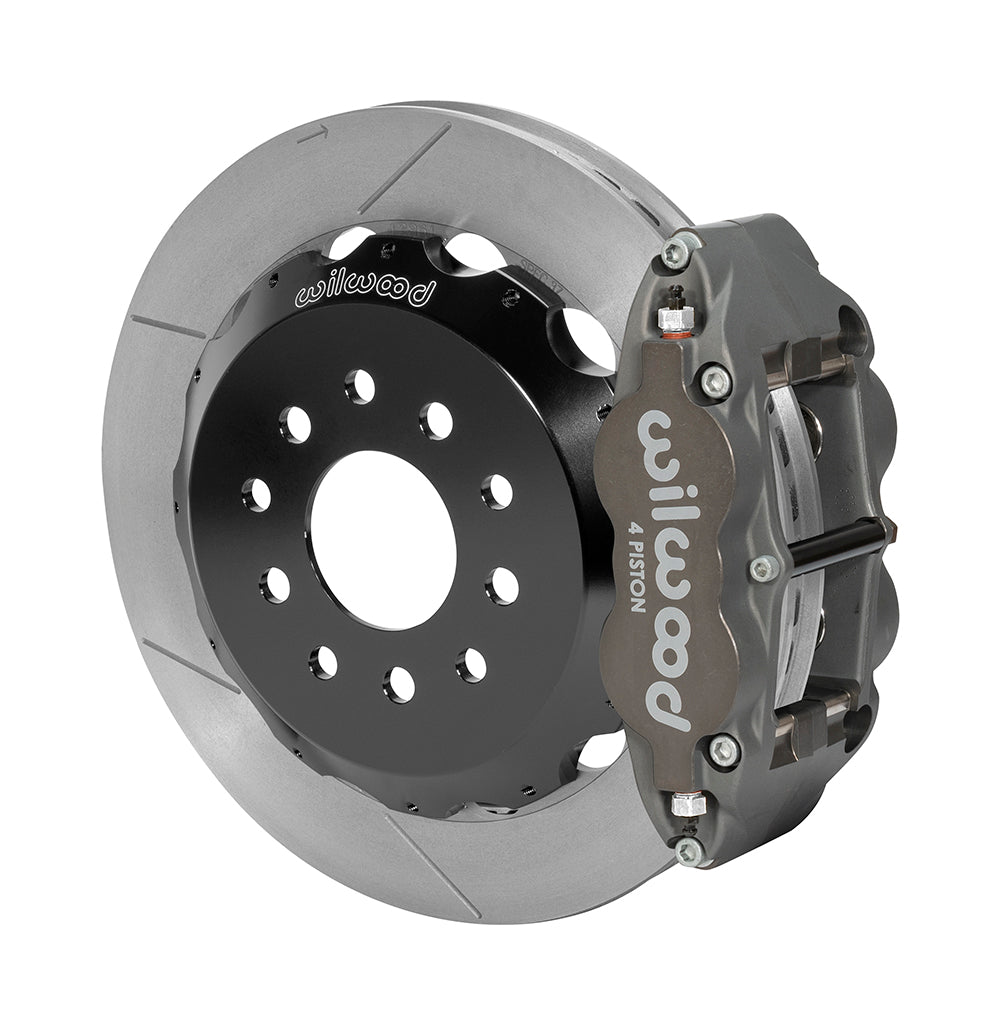

This dedicated C4 rear race conversion replaces the original combination calipers with anodized four-piston Superlite 4R calipers and 12.88-inch GT rotors. It eliminates the parking brake and uses high-temperature BP-35 pads for sustained racing operation. Founded in 1977 by Bill Wood, Wilwood Engineering is now based in Camarillo, California, where its work centers on disc brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized installations; selecting these parts requires considering the complete braking system.

Technical Details

• Manufacturer part number: 140-14879.
• Rotor dimensions: outside diameter 12.88 in; 327.15 mm; thickness 1.10 in; 27.94 mm.
• Service caliper assembly: Superlite 4R; 4 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Supplied pad compound: BP-35.
• Hat wheel-stud clearance diameter: 0.560 in; 14.22 mm; 0.520 in; 13.21 mm.
• Rotor mounting hat: aluminum; Black E-Coat; hat offset 0.880 in.
• Mechanical package contents: no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Flexline specification: Line kit included (manufacturer): None; Rear line-kit reference: 220-8177.
• Parking-brake provision: the original parking brake is eliminated; no mechanical parking function is supplied.
• Brake function and supply: Rear road-race brake kit; Disc braking; rear axle; Sold as a kit.
• Rotor construction and friction surface: Spec-37 Iron; Vented; GT Slotted; surface finish: Plain.
• Caliper color, finish and hydraulic inlet: Anodize; Type III Anodize; inlet 1/8-27 NPT.
• Wheel bolt circle: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Nominal minimum wheel diameter: 17 in; 431.8 mm; verify full spoke and barrel clearance using the kit drawing.
• Rear flange interface: OEM; axle/flange offset 0.00 in; 0 mm (distinct from rotor-hat offset).
• Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
• Race pad operating range: BP-35 pads are intended for high-temperature racing; extended low-temperature operation causes premature pad and rotor wear.

Fitment & Compatibility

Confirm the 1988–1996 Corvette rear suspension and OE hub interface. Production C4 chassis require separate hose kit 220-8177; custom vehicles using the suspension need their flexline length specified individually. BP-35 pads can cause premature pad and rotor wear during extended cold use.

Check the application-specific restrictions for Corvette. A shared model name does not replace the exact year and brake/suspension configuration. Use the fitment table below to confirm year, model, trim and brake or suspension options.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
