Wilwood GT-Slotted Rear Parking-Brake Conversion, Red Four-Piston Calipers, Mopar/Dana 2.36-Inch Offset and Required Snap-Ring Bearings

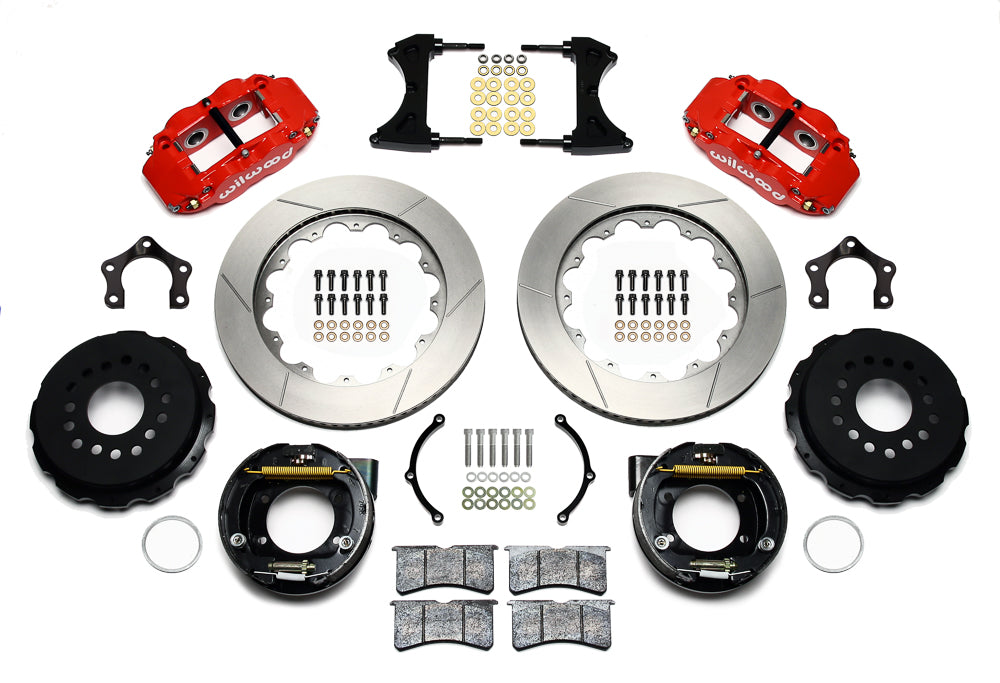

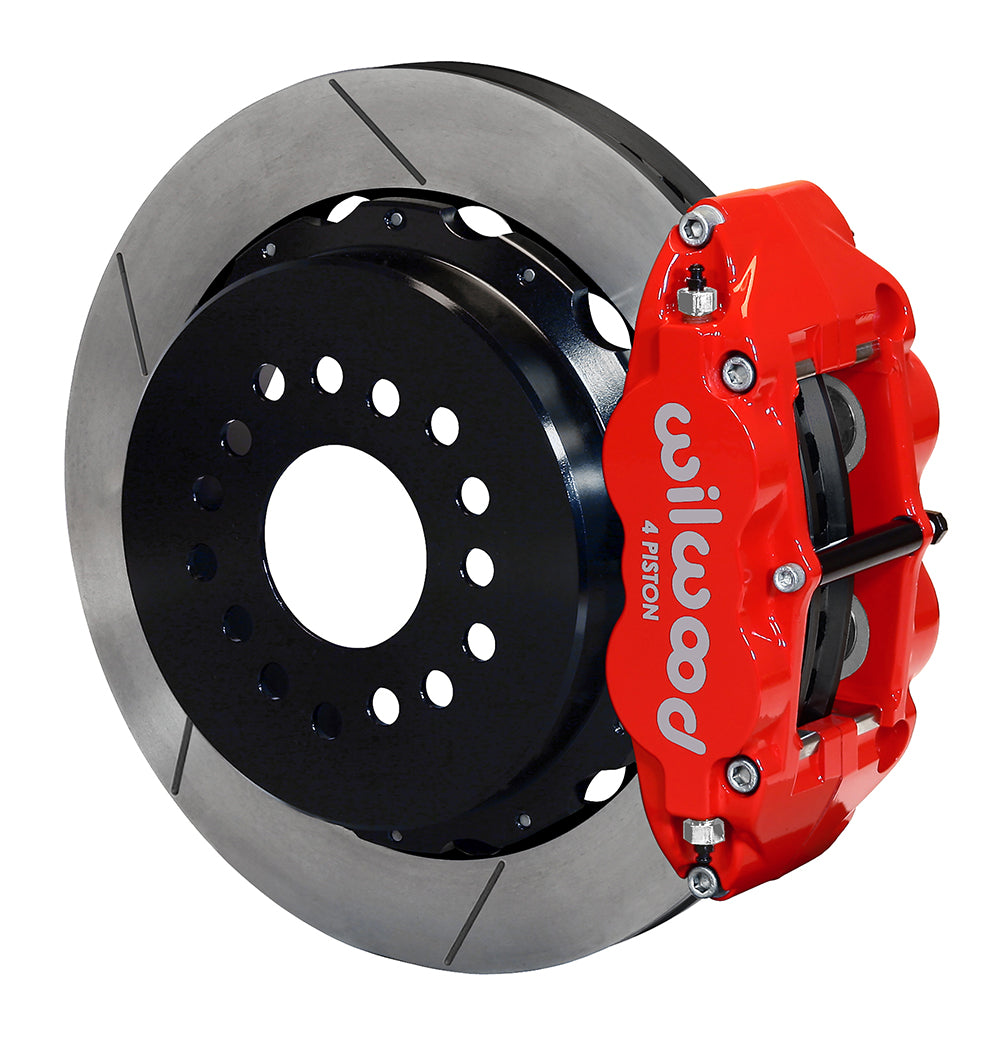

The red GT-rotor version supplies Superlite service calipers, 14-inch two-piece rotors and internal parking shoes. Its housing-end mounting depends on the required snap-ring bearing, with the aluminum hat and axle offset setting the rotor position. Founded in 1977 by Bill Wood, Wilwood Engineering is now based in Camarillo, California, where its work centers on disc brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized installations; selecting these parts requires considering the complete braking system.

Technical Details

• Manufacturer part number — 140-14878-R.
• Supplied pad compound — BP-10.
• Caliper color, finish and hydraulic inlet — Red; Red Powder Coat; inlet 1/8-27 NPT.
• Service caliper assembly — Superlite 4R; 4 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Rotor construction and friction surface — Spec-37 Iron; Vented; GT Slotted; surface finish: Black Electro Coat.
• Rotor dimensions — outside diameter 14.00 in; 355.6 mm; thickness 1.10 in; 27.94 mm.
• Brake function and supply — Rear Brake Kits - Street Performance; Disc; Parking braking; rear axle; Sold as a kit.
• Parking mechanism — internal parking-brake shoe assemblies included; operating cable/clevis kit 330-9371 purchased separately.
• Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.
• Mechanical package contents — no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Rear flange interface — Mopar/Dana; axle/flange offset 2.36 in; 59.94 mm (distinct from rotor-hat offset).
• Rotor mounting hat — aluminum; Black E-Coat; hat offset 1.540 in.
• Nominal minimum wheel diameter — 18 in; 457.2 mm; verify full spoke and barrel clearance using the kit drawing.
• Hat wheel-stud clearance diameter — 0.520 in; 13.21 mm.
• Wheel bolt circle — 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.

Fitment & Compatibility

Verify the actual axle end even if the rear housing is called Mopar 8-3/4 or Dana 60. DS1256 excludes the RP400 pressed-on-retainer bearing and identifies the approved snap-ring alternatives. Check shock location, the wheel drawing and separate hose/cable connections before installation.

Only snap-ring Green bearings of the specified MO400/A1022/9400M type are suitable. The RP400 pressed-on five-hole retainer type is incompatible. DS1256 warns that shock clearance may require modification or relocation.

With more than 20 years of parts experience, PMB Performance can help review the specified brake arrangement. Include the vehicle year and details of any hub, spindle or suspension changes.

Check the Installation instructions and Technical bulletin for the full assembly and wheel-clearance requirements.
