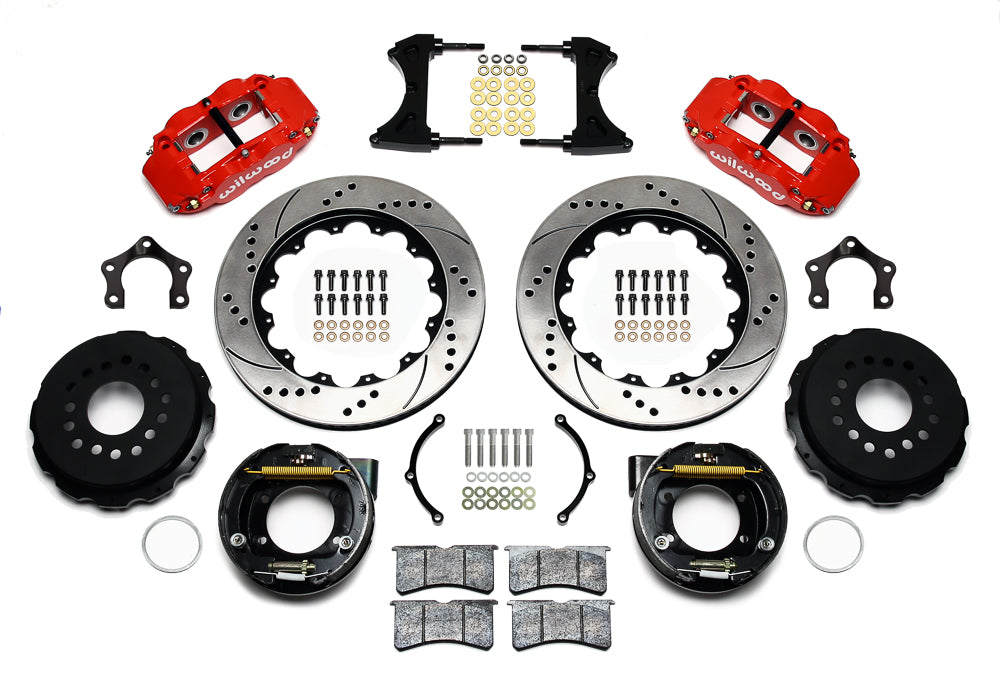

Wilwood Mopar snap-ring Green-bearing rear kit layout with red Superlite 4R calipers, 14.00-inch drilled-and-slotted rotors, parking hats, internal shoe assemblies, pads and brackets

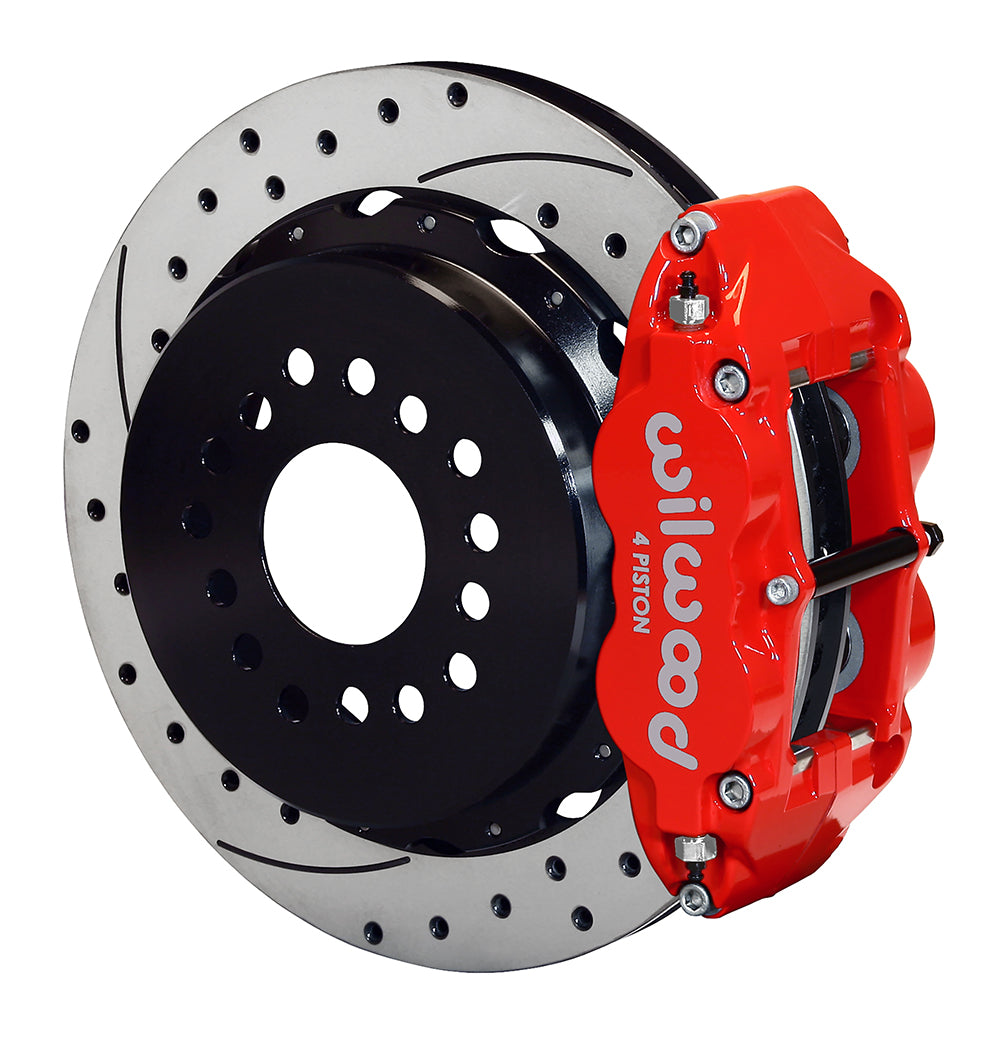

Wilwood Mopar snap-ring Green-bearing rear assembly with a red Superlite 4R caliper beside a 14.00-inch drilled-and-slotted rotor and its mounting hat
Wilwood Mopar snap-ring Green-bearing rear kit layout with red Superlite 4R calipers, 14.00-inch drilled-and-slotted rotors, parking hats, internal shoe assemblies, pads and brackets
Wilwood Mopar snap-ring Green-bearing rear assembly with a red Superlite 4R caliper beside a 14.00-inch drilled-and-slotted rotor and its mounting hat

Wilwood Red Superlite Rear Brake and Parking-Shoe Package with Drilled 14-Inch Rotors, Mopar/Dana Snap-Ring Axles, 2.36-Inch Offset

SKU: 140-14878-DR

$2,411.90 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red powder-coated Superlite 4R calipers clamp drilled-and-slotted Spec-37 rotor rings in this rear axle package. Its internal parking mechanism fits inside the aluminum hats and uses the bearing-retention layout specified for the Mopar/Dana flange. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, with each part selected to match the complete brake system.

Technical Details

  • Manufacturer part number: 140-14878-DR.
  • Caliper color, finish and hydraulic inlet: Red; Red Powder Coat; inlet 1/8-27 NPT.
  • Supplied pad compound: BP-10.
  • Wheel bolt circle: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.
  • Hat wheel-stud clearance diameter: 0.520 in; 13.21 mm.
  • Nominal minimum wheel diameter: 18 in; 457.2 mm; verify full spoke and barrel clearance using the kit drawing.
  • Rotor mounting hat: aluminum; Black E-Coat; hat offset 1.540 in.
  • Rear flange interface: Mopar/Dana; axle/flange offset 2.36 in; 59.94 mm (distinct from rotor-hat offset).
  • Mechanical package contents: no separate hubs included; mounting hardware included: Yes; spindles included: No.
  • Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
  • Parking mechanism: internal parking-brake shoe assemblies included; operating cable/clevis kit 330-9371 purchased separately.
  • Brake function and supply: Rear Brake Kits - Street Performance; Disc; Parking braking; rear axle; Sold as a kit.
  • Rotor dimensions: outside diameter 14.00 in; 355.6 mm; thickness 1.10 in; 27.94 mm.
  • Rotor construction and friction surface: Spec-37 Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
  • Service caliper assembly: Superlite 4R; 4 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.

Fitment & Compatibility

Use the non-adjustable snap-ring bearing configuration shown in DS1256, not the pressed-on five-hole retainer arrangement. Confirm 2.36 inches of axle offset, wheel pattern, registration and suspension clearance. Vehicle hoses and parking-cable attachments are additional parts.

Only snap-ring Green bearings of the specified MO400/A1022/9400M type are suitable. The RP400 pressed-on five-hole retainer type is incompatible. DS1256 warns that shock clearance may require modification or relocation.

PMB Performance has over 20 years of experience with parts and fitment details. Contact us with the original vehicle specification and any changes to its braking or suspension system.

Check the Installation instructions and Technical bulletin for the full assembly and wheel-clearance requirements.
