Wilwood Drilled 14-Inch Rear Disc/Parking Conversion for Mopar/Dana 2.36-Inch-Offset Axles, Black Superlite Calipers, Snap-Ring Bearings Only

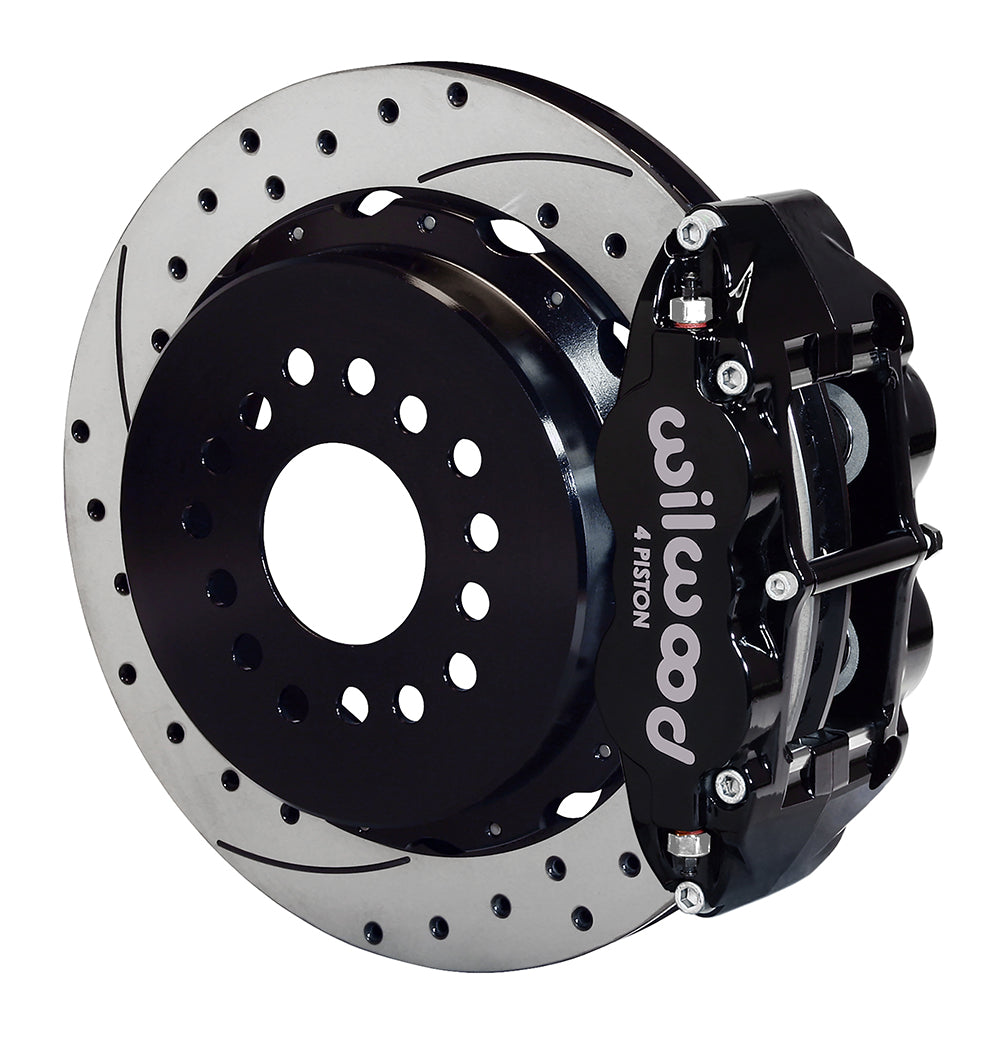

Drilled-and-slotted rotor rings combine with black Superlite calipers and aluminum parking hats in this rear conversion. The separate internal shoes provide parking operation, with mounting restricted to the specified snap-ring bearing and axle-end geometry. Wilwood Engineering is based in Camarillo, California; Bill Wood founded the company in 1977. Disc brake system design and manufacturing includes calipers, rotors, master cylinders, pressure valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for how the complete brake system mounts, operates and balances.

Technical Details

• Manufacturer part number: 140-14878-D.
• Service caliper assembly: Superlite 4R; 4 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Supplied pad compound: BP-10.
• Hat wheel-stud clearance diameter: 0.520 in; 13.21 mm.
• Rotor mounting hat: aluminum; Black E-Coat; hat offset 1.540 in.

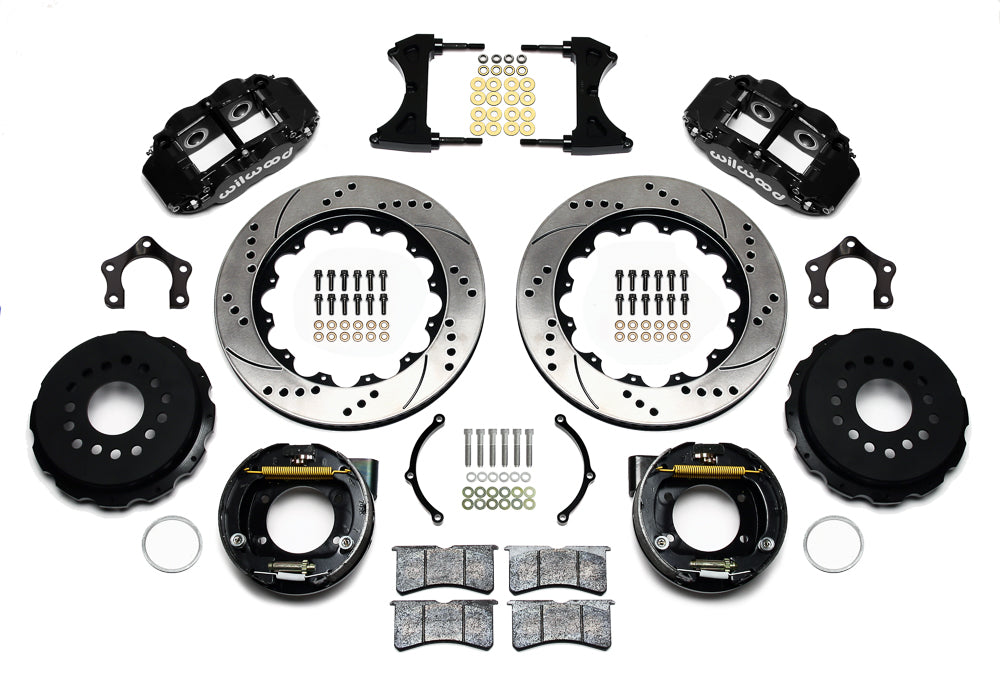

• Mechanical package contents: no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Parking mechanism: internal parking-brake shoe assemblies included; operating cable/clevis kit 330-9371 purchased separately.
• Rotor dimensions: outside diameter 14.00 in; 355.6 mm; thickness 1.10 in; 27.94 mm.
• Rotor construction and friction surface: Spec-37 Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
• Caliper color, finish and hydraulic inlet: Black; Black Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.
• Nominal minimum wheel diameter: 18 in; 457.2 mm; verify full spoke and barrel clearance using the kit drawing.
• Rear flange interface: Mopar/Dana; axle/flange offset 2.36 in; 59.94 mm (distinct from rotor-hat offset).
• Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
• Brake function and supply: Rear Brake Kits - Street Performance; Disc; Parking braking; rear axle; Sold as a kit.

Fitment & Compatibility

Compare the bearing and retainer directly with DS1256 Figures 1 and 2. A pressed-on-retainer RP400 bearing must be replaced by the approved snap-ring arrangement before this kit can fit. Measure the 2.36-inch axle offset and allow for any required shock-clearance changes.

Only snap-ring Green bearings of the specified MO400/A1022/9400M type are suitable. The RP400 pressed-on five-hole retainer type is incompatible. DS1256 warns that shock clearance may require modification or relocation.

With more than 20 years of parts experience, PMB Performance can help review the specified brake arrangement. Include the vehicle year and details of any hub, spindle or suspension changes.

Check the Installation instructions and Technical bulletin for the full assembly and wheel-clearance requirements.
