Wilwood Front AERO6 Brake Kit for Ford F-100 4x2 (1968–1972), Black Calipers, 14 x 1.25-Inch GT Rotors and Hubs

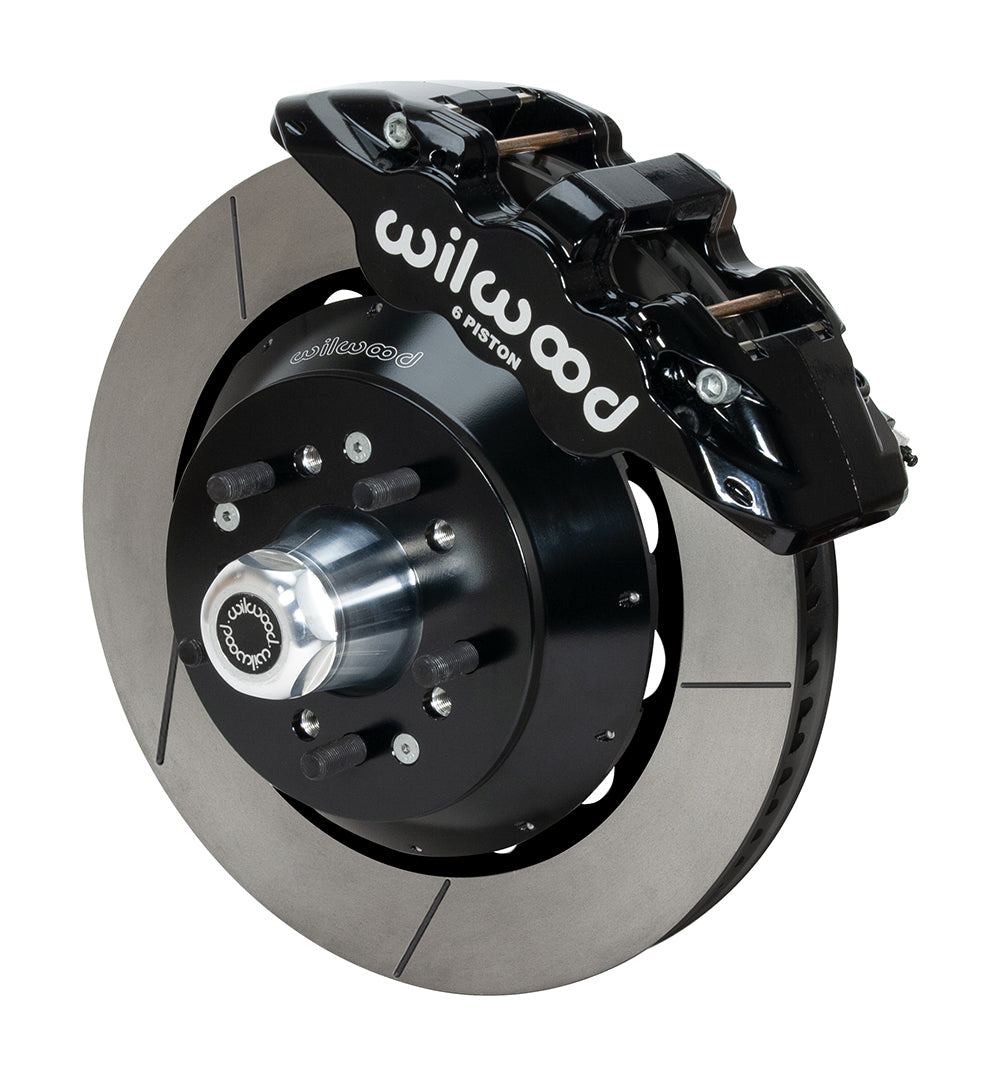

Black AERO6 six-piston calipers operate 14-inch GT rotor rings in this F-100 front package. Its 1.25-inch rotor thickness distinguishes the brake assembly from the narrower Superlite option, although both use the specified drum spindle and supplied wheel hubs. Wilwood Engineering, established by Bill Wood in 1977 and based today in Camarillo, California, manufactures and designs disc brake systems and their components. The product range covers brake rotors, calipers, valves, master cylinders, brake lines and fittings for motorsport, specialized and street-performance applications. Suitability depends on matching each component to the entire brake system.

Technical Details

• Manufacturer part number — 140-14842.
• Flexline specification — Line kit included (manufacturer): None; Front line-kit reference: 220-11237.
• Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.

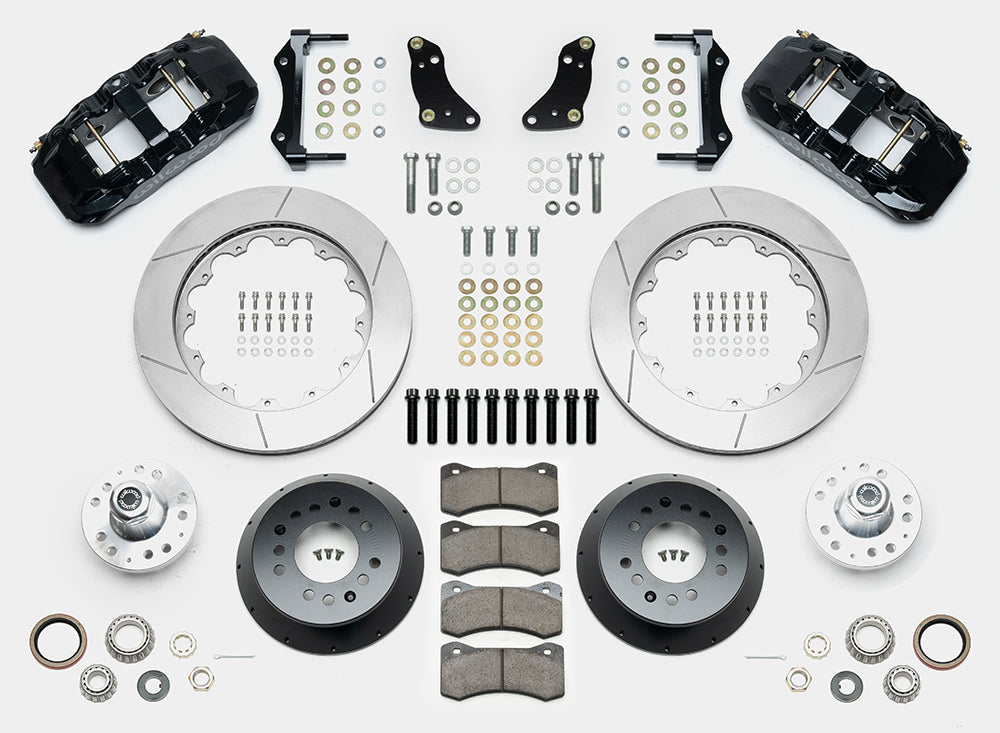

• Mechanical package contents — separate hubs included; mounting hardware included: Yes; spindles included: No.
• Stated OE wheel-hub offset — +.0.00 in; verify the documented spindle and reference geometry.
• Rotor mounting hat — aluminum; Black E-Coat; hat offset 1.750 in.
• Nominal minimum wheel diameter — 18 in; 457.2 mm; verify full spoke and barrel clearance using the kit drawing.
• Wheel-stud thread — 1/2-20.
• Wheel bolt circle — 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Supplied pad compound — BP-20.
• Caliper color, finish and hydraulic inlet — Black; Black Powder Coat; inlet 1/8-27 NPT.
• Service caliper assembly — AERO6; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Rotor construction and friction surface — Spec-37 Iron; Vented; GT Slotted; surface finish: Black Electro Coat.
• Rotor dimensions — outside diameter 14.00 in; 355.6 mm; thickness 1.25 in; 31.75 mm.
• Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.

Fitment & Compatibility

Check the retained 1968–1972 F-100 4x2 drum spindle against DS1268. Confirm the dual-pattern hub, bearing installation and 18-inch wheel drawing. Front flexlines are not supplied; choose the correct chassis-end connection and routing.

The application list names F-100. Verify the particular year and suspension/brake option for each model. Use the fitment table below to confirm year, model, trim and brake or suspension options.

For a fitment check, give PMB Performance the vehicle details and the actual brake and suspension hardware. Our team has over 20 years of experience working through parts compatibility.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
