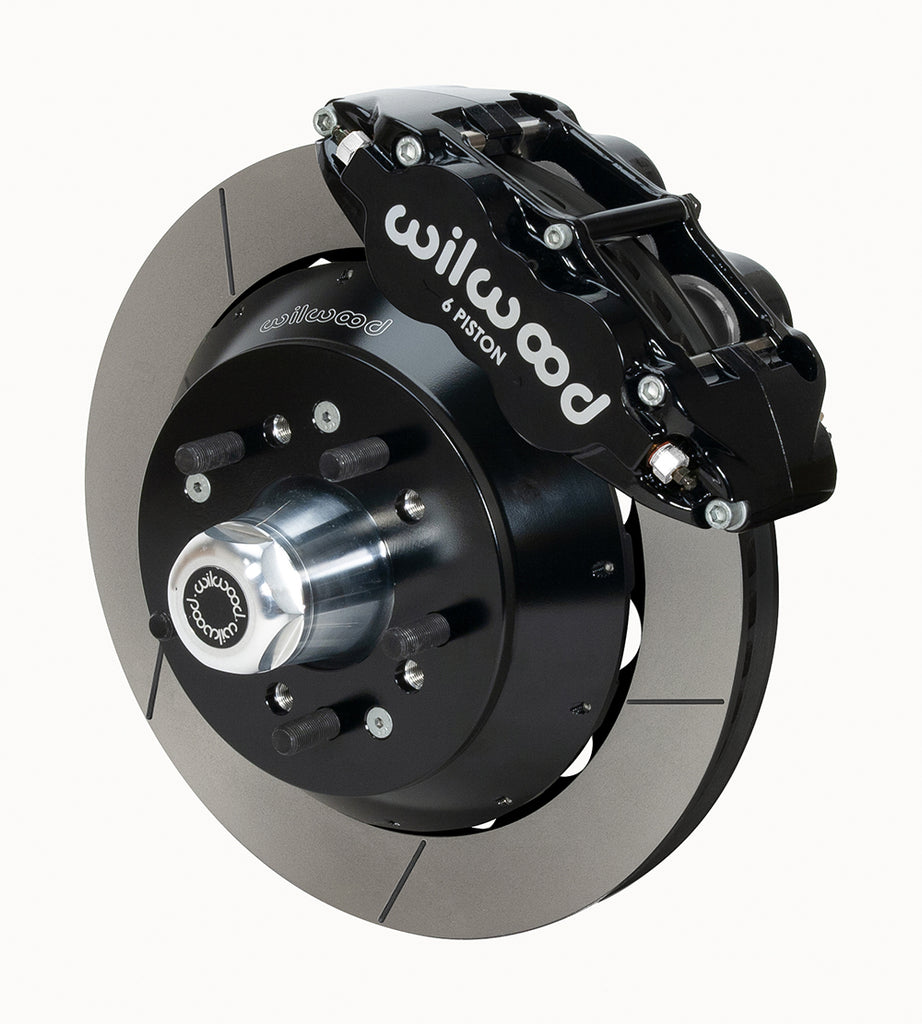

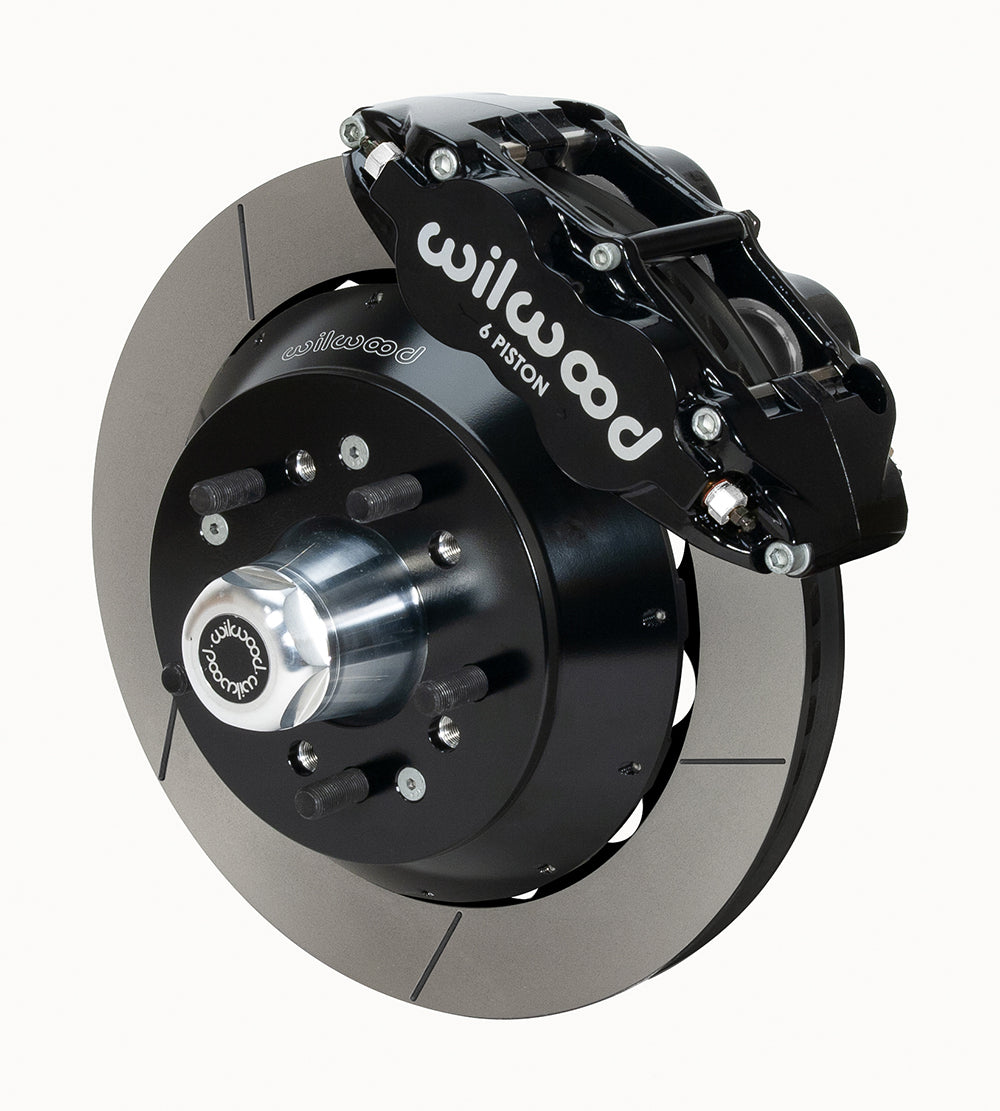

Wilwood Black Superlite Front Disc Conversion for 1968–1972 F-100 4x2, 12.88-Inch GT Rotors and Separate Aluminum Hubs

This Wilwood Superlite 6R kit is a front 12.88-inch hub upgrade for 1968–1972 Ford F-100 4 x 2 Drum Spindles. This later F-100 hub package uses separate aluminum hubs, 12.88-inch rotors and six-piston Superlite calipers. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering develops disc brake systems for motorsport, street-performance and specialized applications. Its calipers, rotors, master cylinders, valves, fittings and brake lines must be selected as parts of a complete, matched braking system.

Technical Details

• Manufacturer part number: 140-14840.
• Wheel mounting pattern(s) measure 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm. The associated wheel-stud thread is 1/2-20.
• Supplied aluminum hubs provide the wheel mounting; verify the patterns and stud threads stated above.
• The friction discs measure 12.88 in; 327.15 mm across and 1.10 in; 27.94 mm thick; gt slotted surfaces are used on vented Spec-37 Iron rotors.
• The rotor rings attach to separate aluminum hats with a Black E-Coat finish.
• Each caliper carries 6 pistons made from stainless. The Superlite 6R design uses forged aluminum, radial mounting and a Black Powder Coat finish.
• BP-20 pads are supplied; the listed bore dimensions are 1.62, 1.12, 1.12 inches.
• Connect the brake line to the specified 1/8-27 NPT inlet.
• Start wheel selection at 17 in; 431.8 mm; the barrel and spokes still need checking against the caliper-clearance template.
• Order suitable flexlines separately; none are included. Match the chassis fittings and allow full steering/suspension travel. Separate reference: 220-11237.

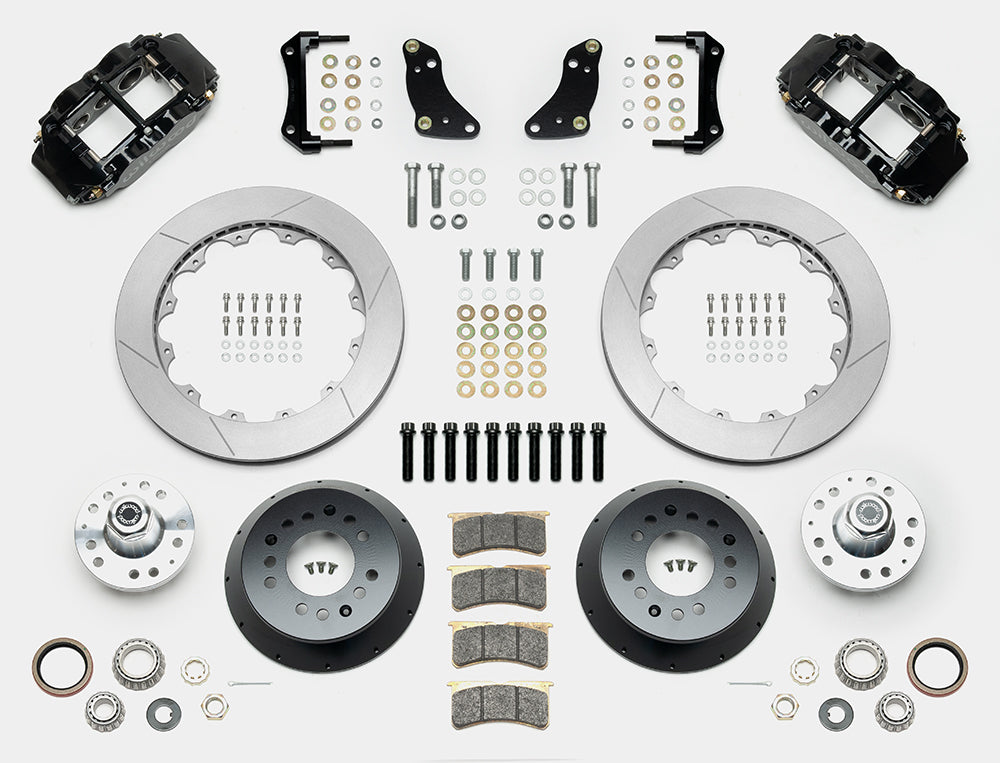

• This package includes its mounting fasteners. It excludes the spindles, master cylinder and booster.
• Sold as a complete kit for the specified front installation.

Fitment & Compatibility

Use the listed 1968–1972 F-100 4 x 2 factory drum spindles and the specific DS-1266 hub/bearing configuration. The supplied hubs have 5 x 4.50/5 x 4.75-inch wheel patterns. The 1957–1967 spindle kit uses a different hub; choose by the actual spindle and bearings. Models covered: F-100. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
