Wilwood AERO6 Black 14-Inch Front Hub Brake Package for 1957–1967 Ford F-100 Factory Drum Spindles

This Wilwood AERO6 kit is a front 14-inch AERO6 hub upgrade for 1957–1967 F-100 Trucks with Factory Drum Spindles. AERO6 calipers use 14 x 1.25-inch rotors on separate aluminum hubs and hats for the verified early F-100 spindle. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. The manufacturer supplies disc brake systems for motorsport, street-performance and specialized applications, including calipers, rotors, master cylinders, valves, fittings and brake lines that must work together as a complete system.

Technical Details

• Manufacturer part number: 140-14839.

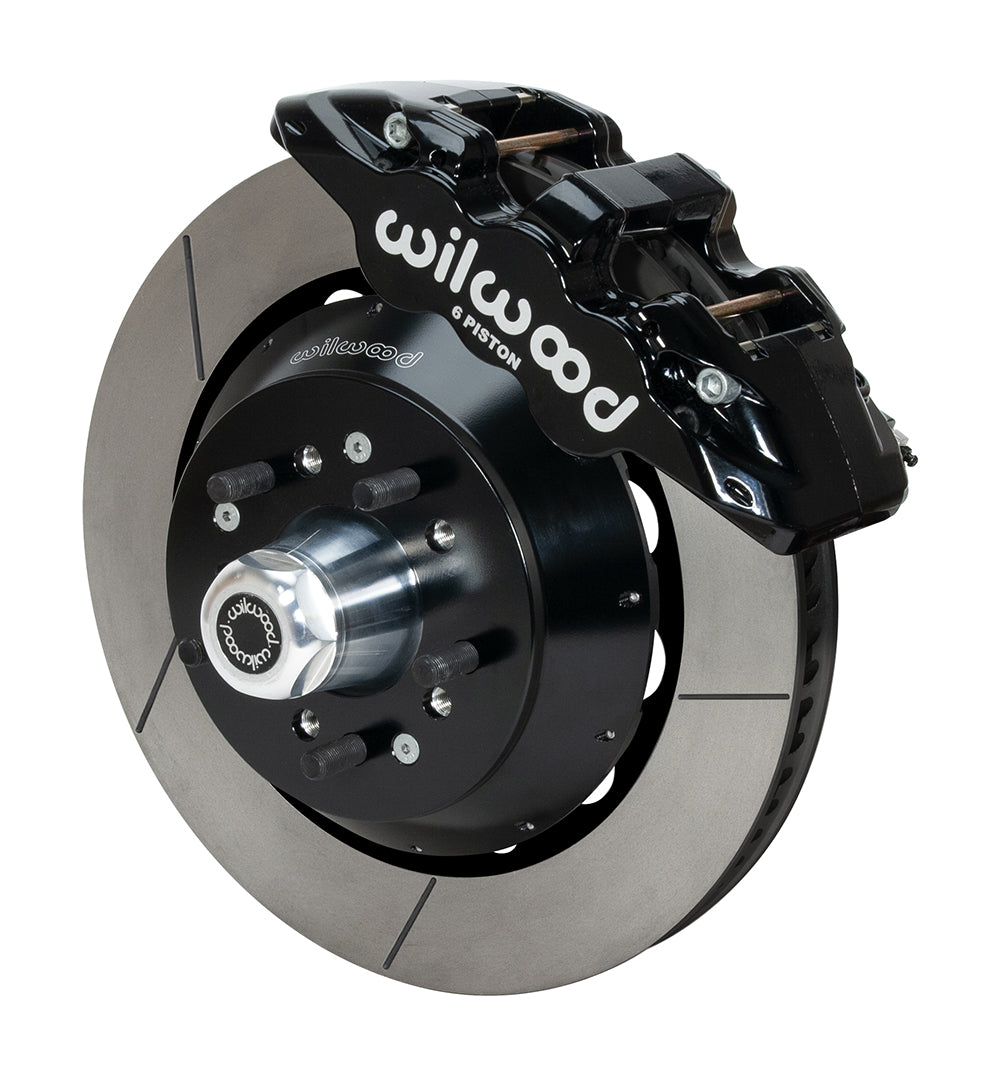

• Caliper bodies are forged aluminum, with Black Powder Coat treatment. This is the radial-mounted AERO6 version, using 6 stainless pistons per caliper.
• Fluid enters through a 1/8-27 NPT caliper port; match the adapter accordingly.
• This configuration uses BP-20 brake pads with caliper bores listed as 1.62, 1.12, 1.12 inches.
• Across the rotor face the measurement is 14.00 in; 355.6 mm; the braking section is 1.25 in; 31.75 mm thick. Both discs use the specified vented Spec-37 Iron design and gt slotted finish.
• The supplied aluminum hats are separate from the friction rings and carry a Black E-Coat finish.
• For this kit the published wheel mounting pattern(s) are 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm. Check the specified 1/2-20 wheel-stud thread.
• The package supplies separate aluminum hubs, rather than relying on the original hubs. Use the listed wheel patterns and thread specifications.
• Mounting hardware accompanies the brake components; the vehicle's spindle, master cylinder and booster are separate items.
• A suitable separately purchased line set is required, with compatible fittings and routing. Brake hoses are not supplied. Separate reference: 220-11237.
• The stated wheel requirement is 18 in; 457.2 mm. Nominal diameter alone does not establish clearance around the caliper and rotor.

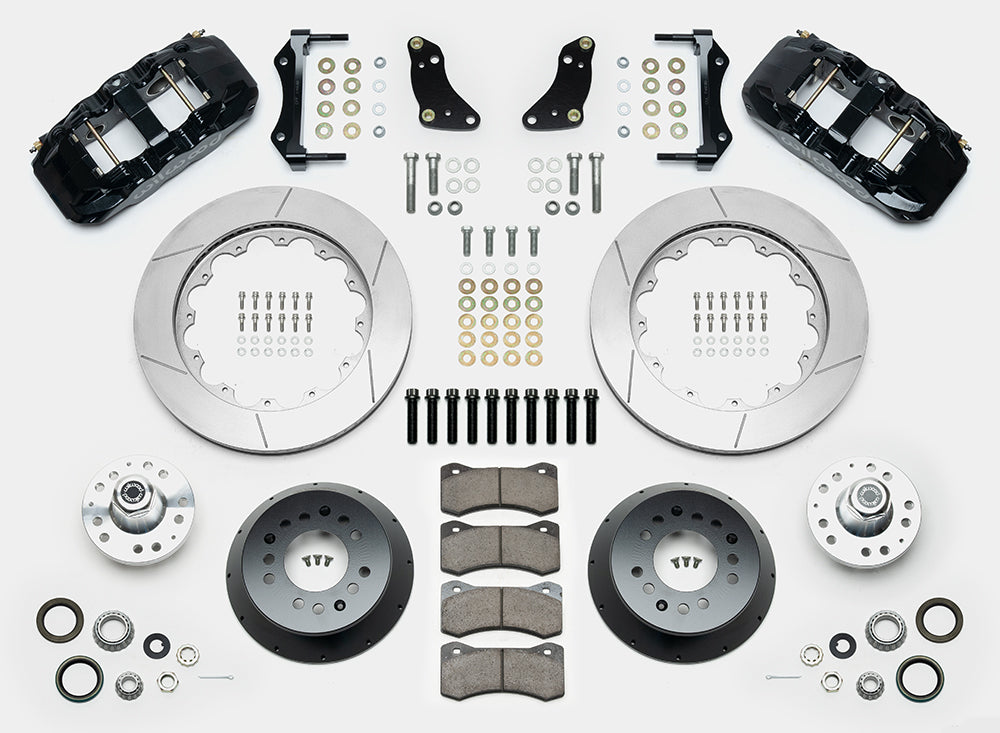

• The components are sold together as one kit for the stated installation.

Fitment & Compatibility

Match the original drum-spindle arrangement and exact listed year/drive rows; 1959–1967 specifies 4 x 2. DS-1265 covers the hub bearings and radial brackets. Wheels must match 5 x 4.50 or 5 x 4.75-inch hubs and pass the clearance drawing; 5 x 5.50-inch wheels are not supported by these hubs. Models covered: F-100. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
