Wilwood Red Superlite 6R Calipers with 14-Inch GT Front Discs and Five-Lug Hubs for 1957–1967 F-100

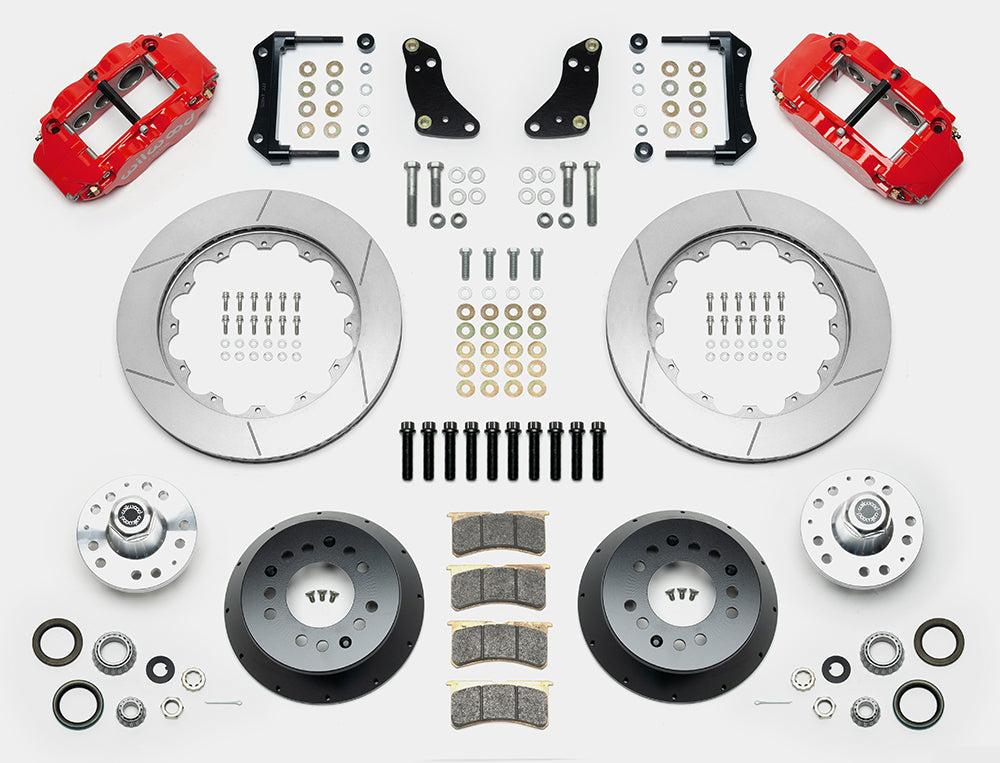

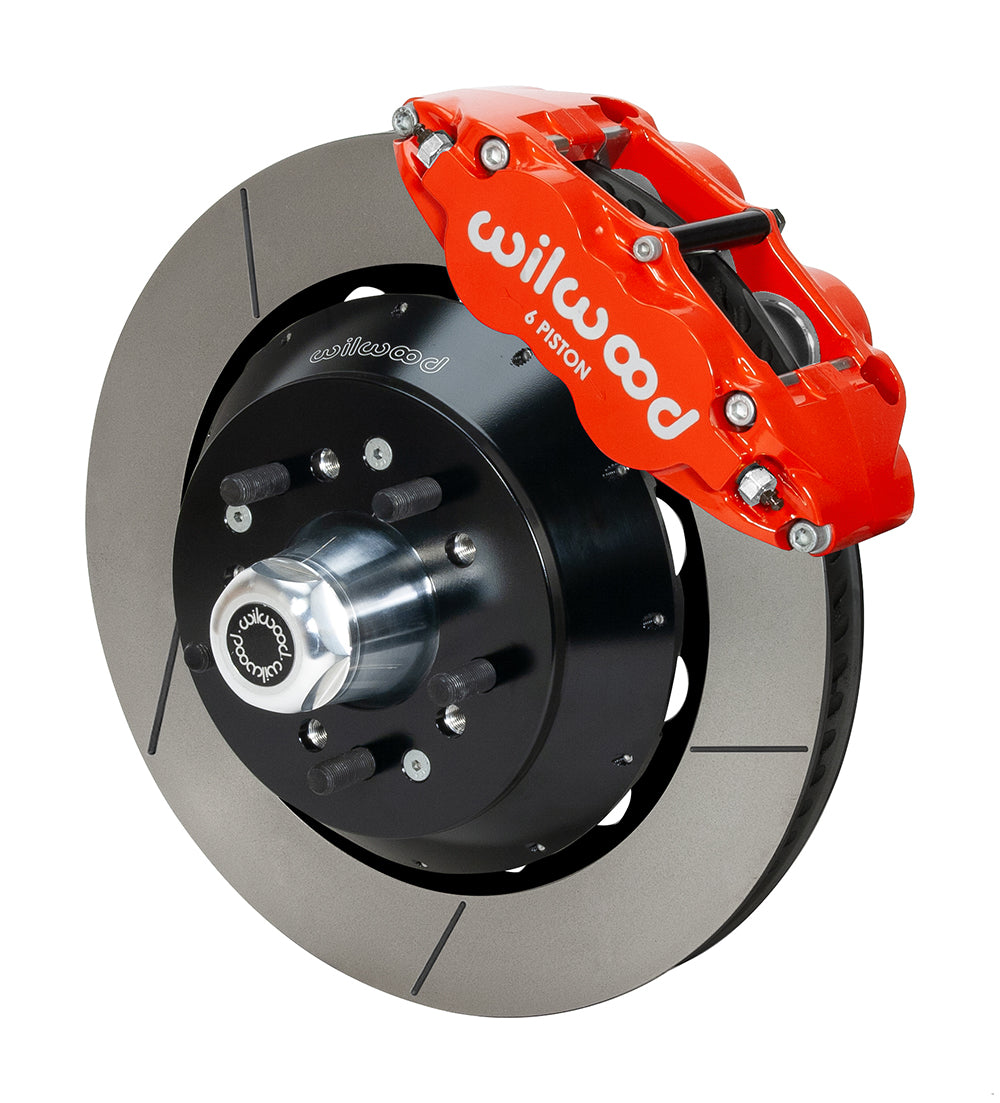

This Wilwood Superlite 6R kit is a front 14-inch hub conversion for Ford F-100 1957–1967 Drum-Spindle Trucks. Separate aluminum hubs and hats carry 14 x 1.10-inch rotors, paired with narrow six-piston Superlite calipers. From its Camarillo, California base, Wilwood Engineering designs disc brake systems for motorsport, street-performance and specialized needs. Founded in 1977 by Bill Wood, its range covers calipers, rotors, master cylinders, valves, fittings and brake lines chosen to work within a complete brake system.

Technical Details

• Manufacturer part number: 140-14838-R.
• At each caliper, the Superlite 6R configuration provides 6 pistons in stainless, housed in forged aluminum. The caliper attaches by radial mounting and is finished in Red Powder Coat.
• Inlet-port specification for hose/fitting selection is 1/8-27 NPT.
• For hydraulic matching, use the published 1.62, 1.12, 1.12-inch piston bores. Pads are the BP-20 compound.
• This version supplies gt slotted rotors in Spec-37 Iron. Their 14.00 in; 355.6 mm diameter and 1.10 in; 27.94 mm section are matched to the listed vented brake package.
• Rotor hats are individual aluminum components with Black E-Coat protection.
• The mounting interface uses 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; verify the wheel-stud thread of 1/2-20 separately from the bolt circle.
• This hub kit includes aluminum wheel hubs. Their wheel-bolt layout and stud threads must match the chosen wheels.
• The listed brackets and fasteners belong to the kit. Spindles and the master-cylinder/booster assembly are outside the package.
• No hydraulic flexlines accompany the kit; supply the correct hoses and fittings for the documented caliper/chassis interface. Separate reference: 220-11237.
• Wheel clearance must be measured using the installation template; the manufacturer lists 18 in; 457.2 mm as the nominal minimum.
• Order quantity refers to one brake conversion kit, not an individual loose rotor or caliper.

Fitment & Compatibility

Confirm the listed 1957–1967 F-100 factory drum spindle, with 4 x 2 specified for 1959–1967. Follow DS-1264 for bearing and bracket installation. The five-lug wheel patterns are 5 x 4.50 and 5 x 4.75 inches; the kit is distinct from the Classic Series 5 x 5.50-inch option. Models covered: F-100. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

PMB Performance brings 20+ years of parts and fitment experience to brake-system selection. Share the actual spindle or axle details, existing brake package and wheel measurements if you need help confirming this configuration.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
