Wilwood Black Six-Piston Front Disc Kit for Early Ford F-100 Drum Spindles, 14-Inch SRP Rotors and 5x4.50/4.75 Hubs

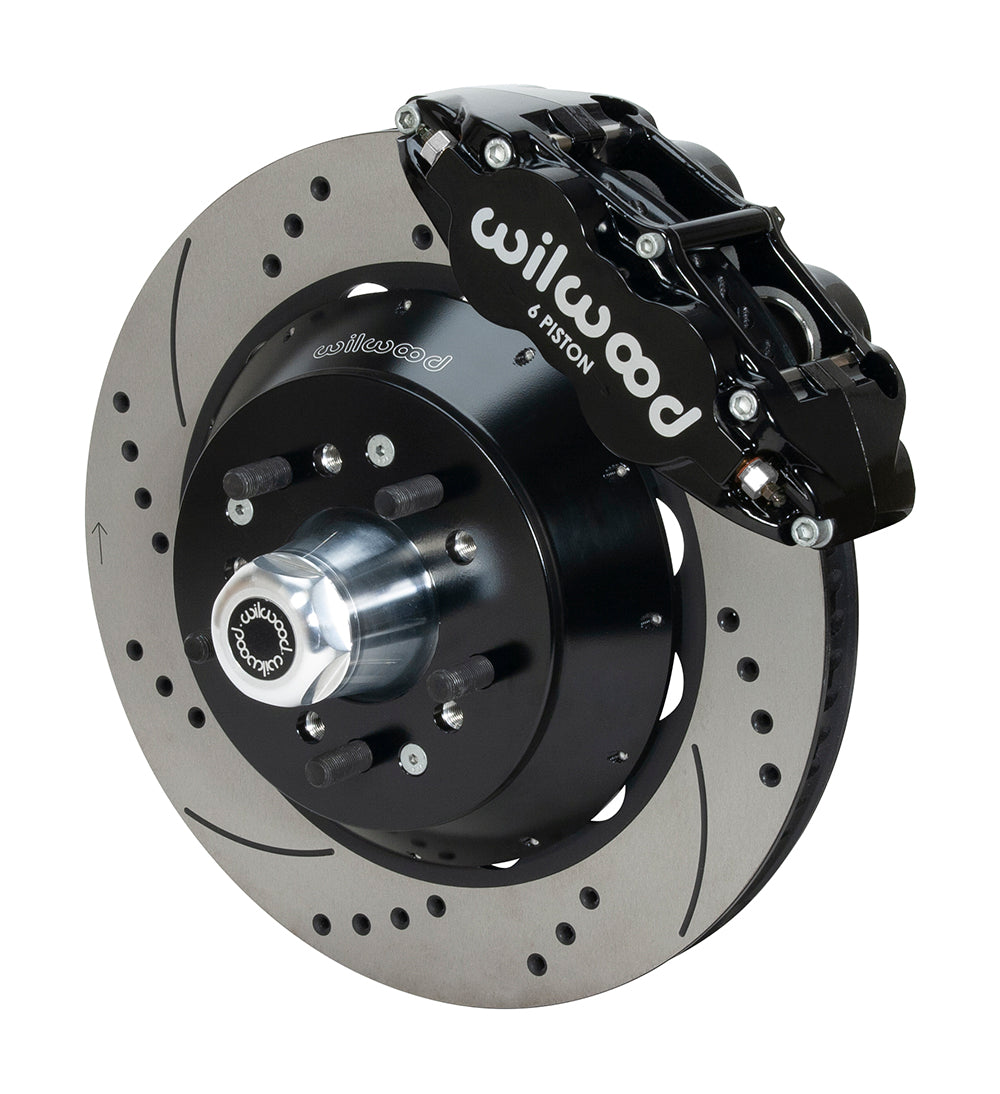

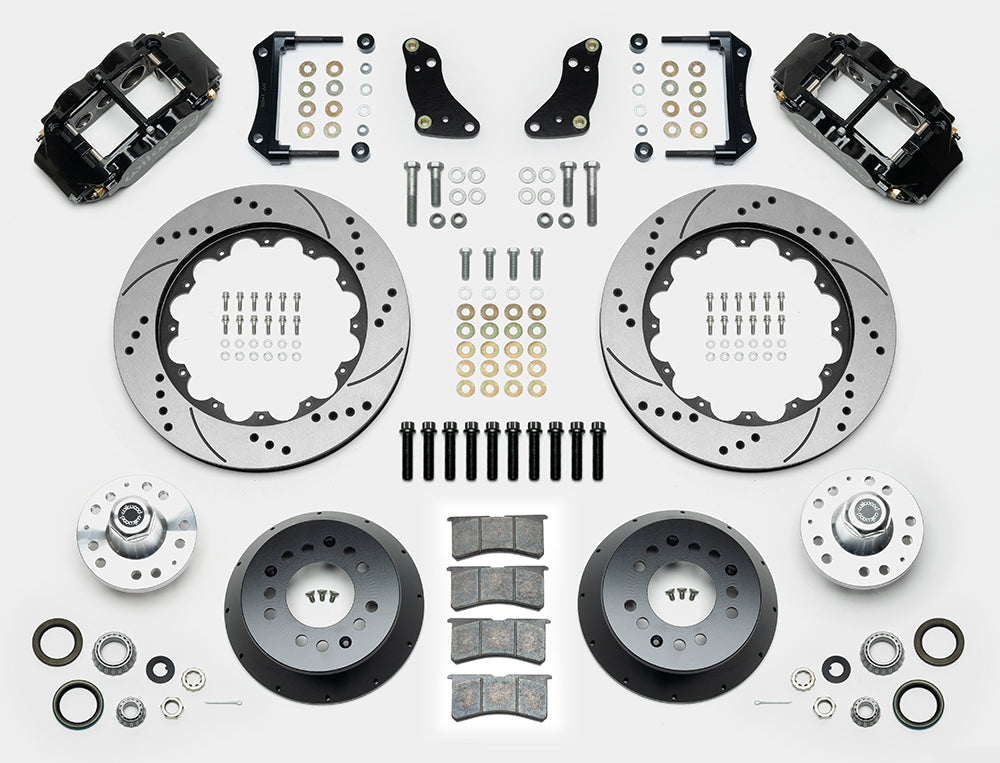

This Wilwood Superlite 6R kit is a front 14-inch hub conversion for Ford F-100 1957–1967 Drum-Spindle Trucks. Separate aluminum hubs and hats carry 14 x 1.10-inch rotors, paired with narrow six-piston Superlite calipers. Wilwood Engineering began in 1977 with founder Bill Wood and is based in Camarillo, California. It designs disc brake systems and components for racing, performance-road and specialized use, from calipers and rotors to master cylinders, valves, fittings and brake lines; the complete system determines component selection.

Technical Details

• Manufacturer part number: 140-14838-D.
• Spec-37 Iron forms the vented rotors. Each disc has a srp drilled & slotted face, an outside diameter of 14.00 in; 355.6 mm and thickness of 1.10 in; 27.94 mm.
• Black Powder Coat Superlite 6R calipers are supplied. Their forged aluminum bodies use the radial mounting arrangement with 6 stainless pistons in each caliper.
• Piston sizes listed by Wilwood are 1.62, 1.12, 1.12 inches, with BP-10 friction material in this kit.
• Hydraulic fitting interface on each caliper: 1/8-27 NPT.
• Match 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm at the wheel mounting pattern(s) interface, with 1/2-20 as the wheel-stud thread.
• Black E-Coat treatment covers the separate aluminum rotor hats.
• The wheel hubs are individual aluminum components supplied in this package. Match their lug pattern and thread to the wheels.
• Published wheel minimum is 18 in; 457.2 mm, subject to the required inside-profile check. Rotor diameter is a separate measurement.
• Application-specific mounting hardware is supplied. Provide or retain the correct spindle, master cylinder and brake booster separately.
• The package excludes hydraulic hoses. Choose compatible connections and line length for the specific installation. Separate reference: 220-11237.
• Package quantity is one application-specific brake kit.

Fitment & Compatibility

Confirm the listed 1957–1967 F-100 factory drum spindle, with 4 x 2 specified for 1959–1967. Follow DS-1264 for bearing and bracket installation. The five-lug wheel patterns are 5 x 4.50 and 5 x 4.75 inches; the kit is distinct from the Classic Series 5 x 5.50-inch option. Models covered: F-100. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

For fitment assistance, provide PMB Performance with the existing brake configuration and measured mounting/wheel details. Our 20+ years of parts experience support checking the complete assembly rather than relying only on a model name.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
