Wilwood 14-Inch GT Front Hub Conversion for 1957–1967 Ford F-100, Black Superlite 6R Calipers

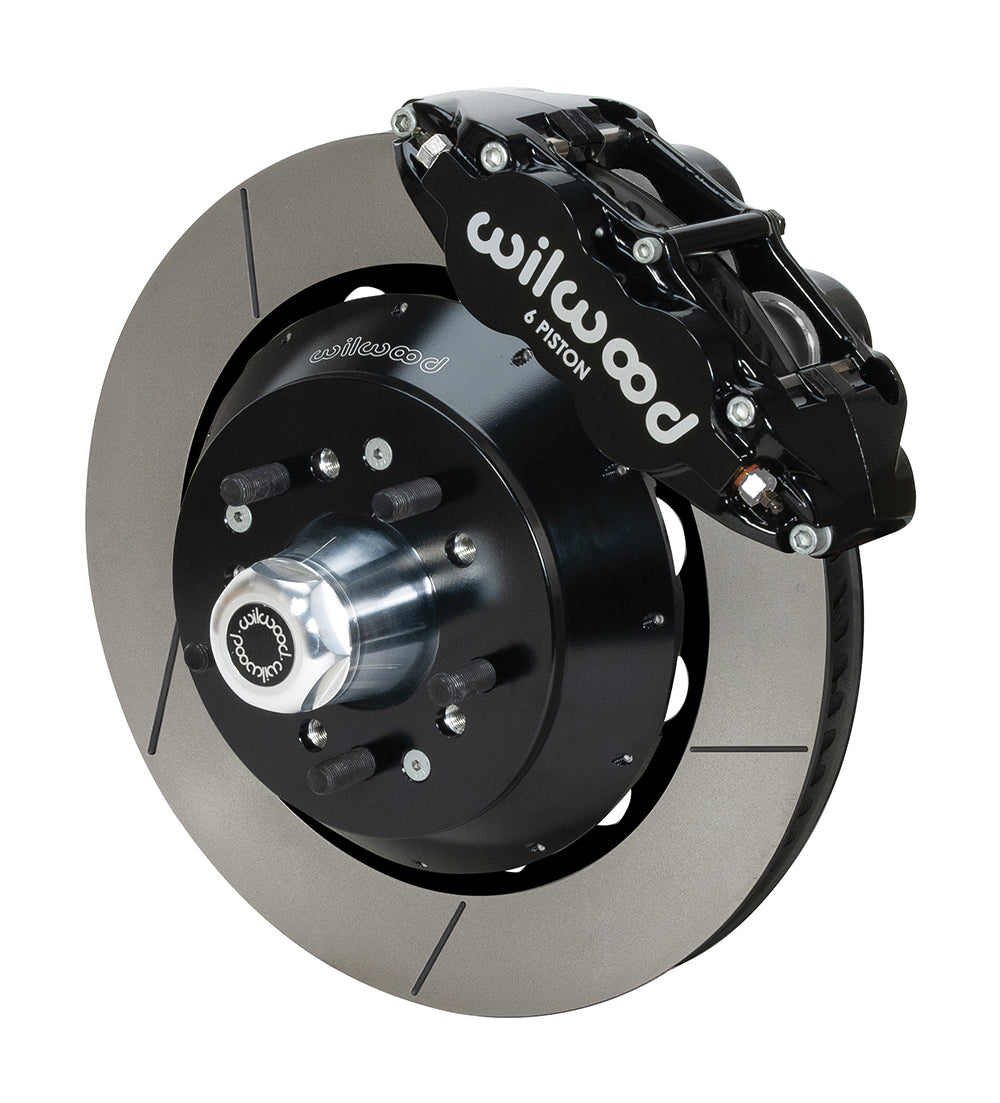

This Wilwood Superlite 6R kit is a front 14-inch hub conversion for Ford F-100 1957–1967 Drum-Spindle Trucks. Separate aluminum hubs and hats carry 14 x 1.10-inch rotors, paired with narrow six-piston Superlite calipers. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering develops disc brake systems for motorsport, street-performance and specialized applications. Its calipers, rotors, master cylinders, valves, fittings and brake lines must be selected as parts of a complete, matched braking system.

Technical Details

• Manufacturer part number: 140-14838.
• The friction discs measure 14.00 in; 355.6 mm across and 1.10 in; 27.94 mm thick; gt slotted surfaces are used on vented Spec-37 Iron rotors.
• Each caliper carries 6 pistons made from stainless. The Superlite 6R design uses forged aluminum, radial mounting and a Black Powder Coat finish.
• BP-20 pads are supplied; the listed bore dimensions are 1.62, 1.12, 1.12 inches.
• Connect the brake line to the specified 1/8-27 NPT inlet.
• Wheel mounting pattern(s) measure 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm. The associated wheel-stud thread is 1/2-20.
• The rotor rings attach to separate aluminum hats with a Black E-Coat finish.
• Supplied aluminum hubs provide the wheel mounting; verify the patterns and stud threads stated above.
• Start wheel selection at 18 in; 457.2 mm; the barrel and spokes still need checking against the caliper-clearance template.

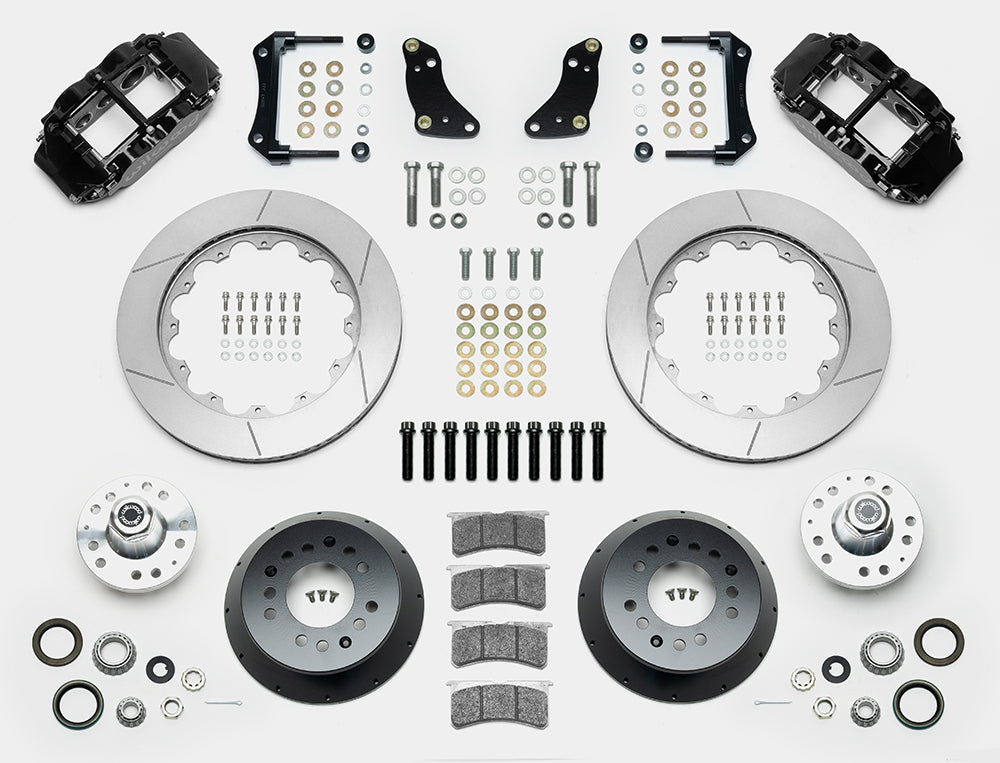

• This package includes its mounting fasteners. It excludes the spindles, master cylinder and booster.
• Order suitable flexlines separately; none are included. Match the chassis fittings and allow full steering/suspension travel. Separate reference: 220-11237.
• Sold as a complete kit for the specified front installation.

Fitment & Compatibility

Confirm the listed 1957–1967 F-100 factory drum spindle, with 4 x 2 specified for 1959–1967. Follow DS-1264 for bearing and bracket installation. The five-lug wheel patterns are 5 x 4.50 and 5 x 4.75 inches; the kit is distinct from the Classic Series 5 x 5.50-inch option. Models covered: F-100. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
