Wilwood Red Superlite 6R Front Brakes with 12.88-Inch Drilled/Slotted Rotors and Aluminum Hubs for 1957–1967 F-100

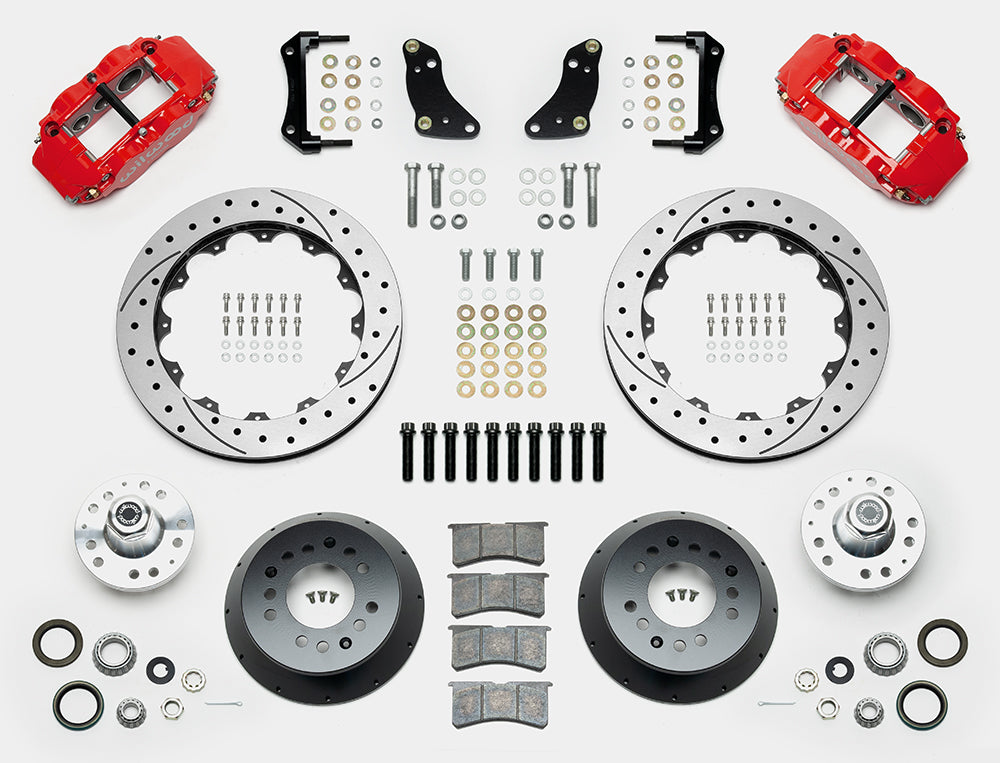

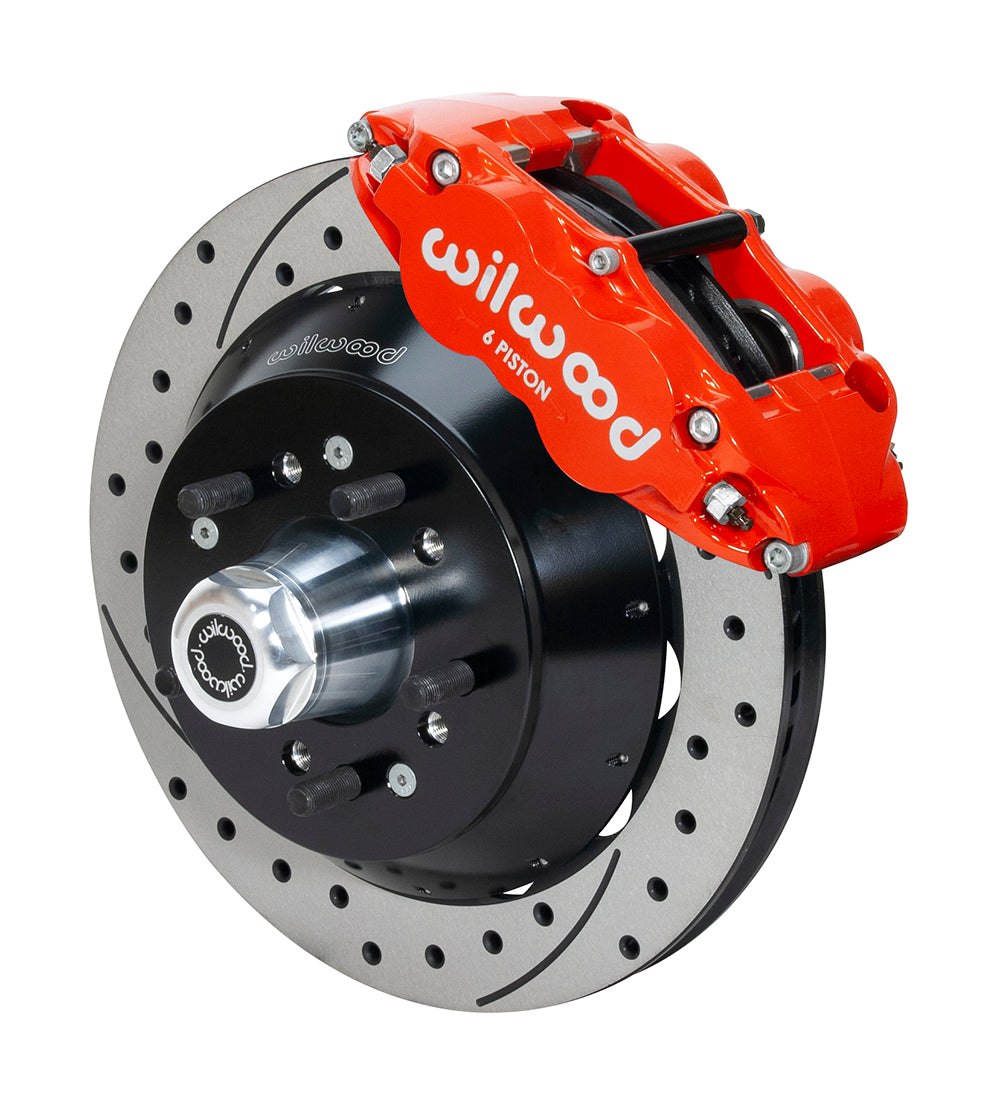

This Wilwood Superlite 6R kit is a front 12.88-inch hub brake conversion for 1957–1967 Ford F-100 Factory Drum Spindles. The hub kit supplies separate aluminum wheel hubs, rotor hats and 12.88-inch Spec-37 rotor rings with six-piston calipers. The kit belongs to Wilwood Engineering's range of disc brake systems and components for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California, and produces calipers, rotors, master cylinders, valves, fittings and brake lines for complete brake-system planning.

Technical Details

• Manufacturer part number: 140-14837-DR.
• The specified radial caliper is a Superlite 6R. It combines a Red Powder Coat forged aluminum body with 6 pistons per unit; the published piston material is stainless.
• Bores and friction material: 1.62, 1.12, 1.12 inches, with BP-10 pads supplied for the specified calipers.
• The vented discs have srp drilled & slotted friction surfaces and Spec-37 Iron construction. Nominal dimensions are 1.10 in; 27.94 mm through the braking section and 12.88 in; 327.15 mm at the outside edge.
• Aluminum hats with Black E-Coat finish complete the two-piece rotor assembly.
• Included wheel hubs use aluminum construction and the listed threaded-stud arrangement. They are separate from the friction discs.
• The wheel-stud thread is 1/2-20; the matching wheel mounting pattern(s) are 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm. These describe different aspects of the attachment.
• When planning the line connection, account for the 1/8-27 NPT caliper inlet.
• The supplied hardware mounts the specified brake package. It does not include replacement spindles, a brake booster or a master cylinder.
• The caliper package calls for at least the published 17 in; 431.8 mm wheel diameter, plus sufficient spoke and inner-barrel clearance.
• Flexlines are excluded from the brake package. Select the chassis-specific hoses and confirm safe clearance throughout travel. Separate reference: 220-11237.
• This is a kit listing; one package contains the brake components described above.

Fitment & Compatibility

Use the listed F-100 drum-spindle years; 1959–1967 entries specify 4 x 2. Match the factory spindle and DS-1263 bearing/locknut configuration. These hubs use 5 x 4.50/5 x 4.75-inch patterns, not the 5 x 5.50 pattern of the smaller one-piece Classic Series kit. Models covered: F-100. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

PMB Performance has more than 20 years of experience with parts and fitment. We can help review the specified kit against your vehicle's actual spindle, axle or existing brake components and wheel-clearance information.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
