Wilwood 1957–1967 F-100 Front Drilled Disc Conversion, Black Superlite Calipers, 12.88-Inch SRP Rotors and Separate Hubs

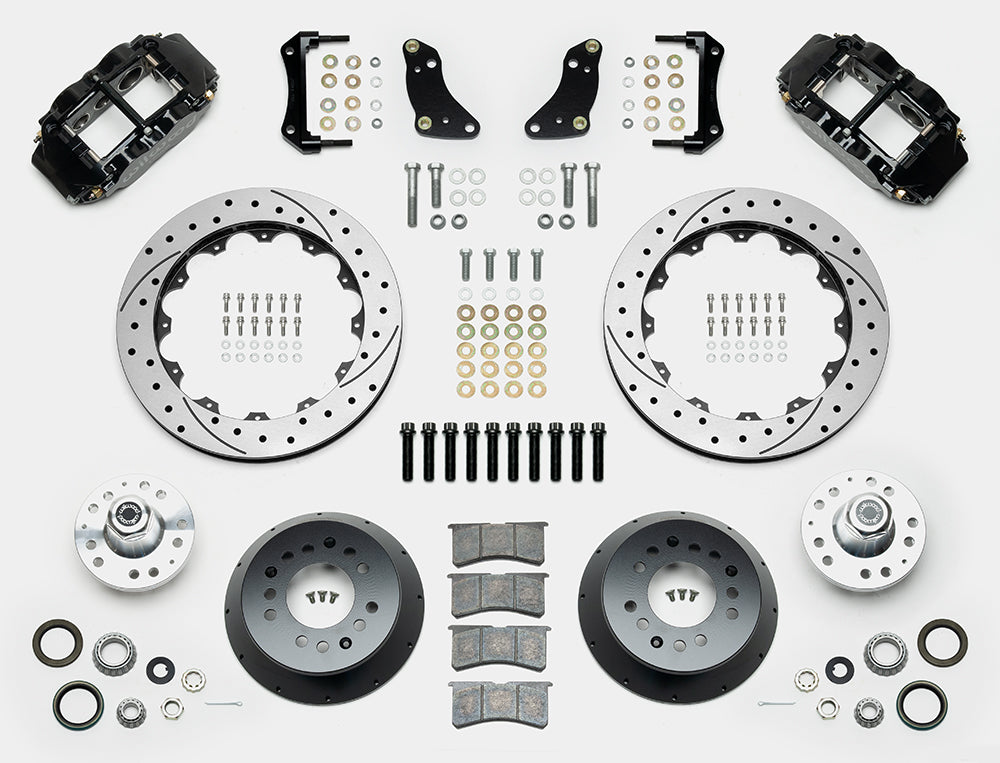

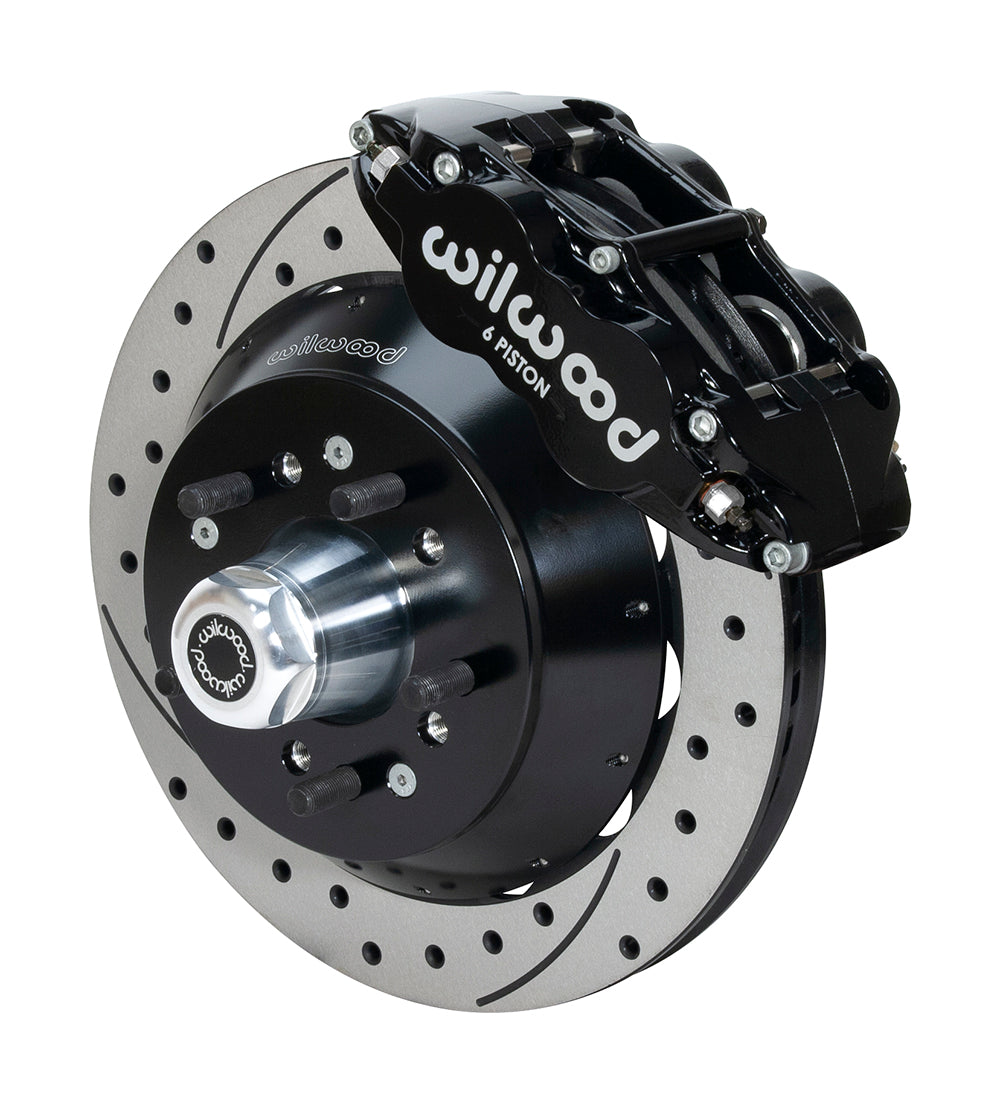

This Wilwood Superlite 6R kit is a front 12.88-inch hub brake conversion for 1957–1967 Ford F-100 Factory Drum Spindles. The hub kit supplies separate aluminum wheel hubs, rotor hats and 12.88-inch Spec-37 rotor rings with six-piston calipers. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. The manufacturer supplies disc brake systems for motorsport, street-performance and specialized applications, including calipers, rotors, master cylinders, valves, fittings and brake lines that must work together as a complete system.

Technical Details

• Manufacturer part number: 140-14837-D.
• Match the Superlite 6R caliper architecture when selecting related components: radial attachment, 6 stainless pistons, forged aluminum body and Black Powder Coat finish.
• Pad selection is BP-10; piston-bore measurements are 1.62, 1.12, 1.12 inches. Confirm those values for any system changes.
• For rotor replacement, match all four specifications: 12.88 in; 327.15 mm outside diameter, 1.10 in; 27.94 mm thickness, Spec-37 Iron and the srp drilled & slotted surface. Rotor construction: vented.
• For the rotor-to-hub interface, the kit supplies separate aluminum hats finished in Black E-Coat.
• Wheel mounting is through the included aluminum hubs; check their exact lug circles and stud threads before selecting wheels.
• Attachment dimensions to confirm are 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm for the wheel mounting pattern(s) and 1/2-20 for the wheel-stud thread.
• Use a compatible hose adapter for the caliper's 1/8-27 NPT inlet.
• Included installation parts cover the kit mounting hardware, with spindles, brake booster and master cylinder excluded.
• Before ordering wheels, check the full inside profile against the drawing and the published 17 in; 431.8 mm minimum diameter.
• Plan the hydraulic connection separately: this kit has no hoses. Check line length and end fittings against the vehicle. Separate reference: 220-11237.
• One brake kit is supplied for the specified application and axle position.

Fitment & Compatibility

Use the listed F-100 drum-spindle years; 1959–1967 entries specify 4 x 2. Match the factory spindle and DS-1263 bearing/locknut configuration. These hubs use 5 x 4.50/5 x 4.75-inch patterns, not the 5 x 5.50 pattern of the smaller one-piece Classic Series kit. Models covered: F-100. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

For fitment assistance, provide PMB Performance with the existing brake configuration and measured mounting/wheel details. Our 20+ years of parts experience support checking the complete assembly rather than relying only on a model name.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
