Wilwood Black Superlite 6R Front Hub Kit for 1957–1967 Ford F-100, 12.88-Inch GT Rotors and 5x4.50/4.75 Wheels

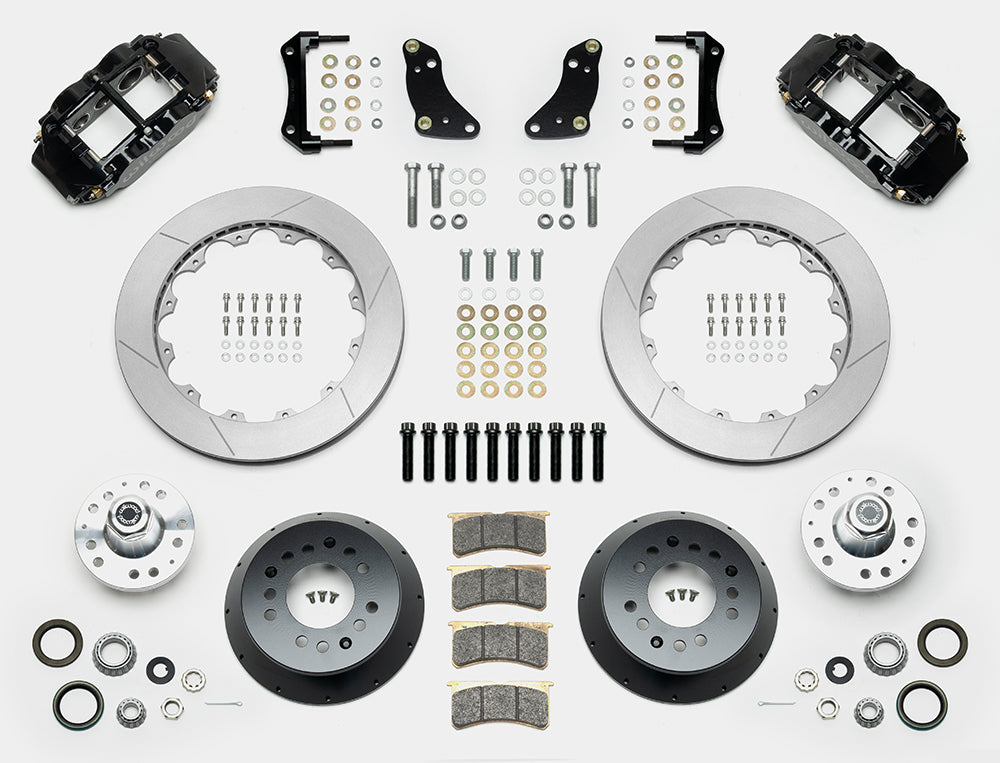

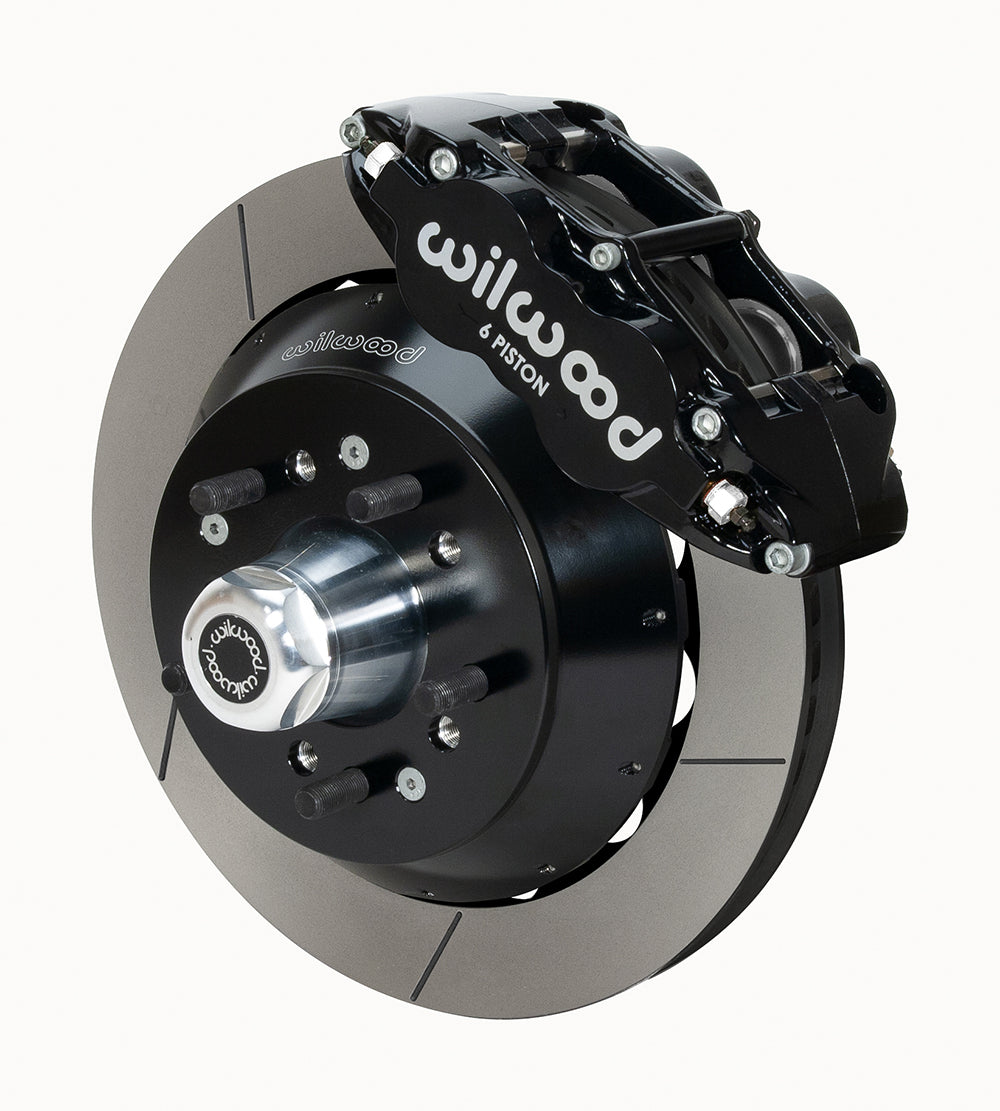

This Wilwood Superlite 6R kit is a front 12.88-inch hub brake conversion for 1957–1967 Ford F-100 Factory Drum Spindles. The hub kit supplies separate aluminum wheel hubs, rotor hats and 12.88-inch Spec-37 rotor rings with six-piston calipers. From its Camarillo, California base, Wilwood Engineering designs disc brake systems for motorsport, street-performance and specialized needs. Founded in 1977 by Bill Wood, its range covers calipers, rotors, master cylinders, valves, fittings and brake lines chosen to work within a complete brake system.

Technical Details

• Manufacturer part number: 140-14837.
• Caliper bodies are forged aluminum, with Black Powder Coat treatment. This is the radial-mounted Superlite 6R version, using 6 stainless pistons per caliper.
• This configuration uses BP-20 brake pads with caliper bores listed as 1.62, 1.12, 1.12 inches.
• Across the rotor face the measurement is 12.88 in; 327.15 mm; the braking section is 1.10 in; 27.94 mm thick. Both discs use the specified vented Spec-37 Iron design and gt slotted finish.
• The supplied aluminum hats are separate from the friction rings and carry a Black E-Coat finish.
• The package supplies separate aluminum hubs, rather than relying on the original hubs. Use the listed wheel patterns and thread specifications.
• For this kit the published wheel mounting pattern(s) are 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm. Check the specified 1/2-20 wheel-stud thread.
• Fluid enters through a 1/8-27 NPT caliper port; match the adapter accordingly.
• Mounting hardware accompanies the brake components; the vehicle's spindle, master cylinder and booster are separate items.
• The stated wheel requirement is 17 in; 431.8 mm. Nominal diameter alone does not establish clearance around the caliper and rotor.
• A suitable separately purchased line set is required, with compatible fittings and routing. Brake hoses are not supplied. Separate reference: 220-11237.
• The components are sold together as one kit for the stated installation.

Fitment & Compatibility

Use the listed F-100 drum-spindle years; 1959–1967 entries specify 4 x 2. Match the factory spindle and DS-1263 bearing/locknut configuration. These hubs use 5 x 4.50/5 x 4.75-inch patterns, not the 5 x 5.50 pattern of the smaller one-piece Classic Series kit. Models covered: F-100. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
