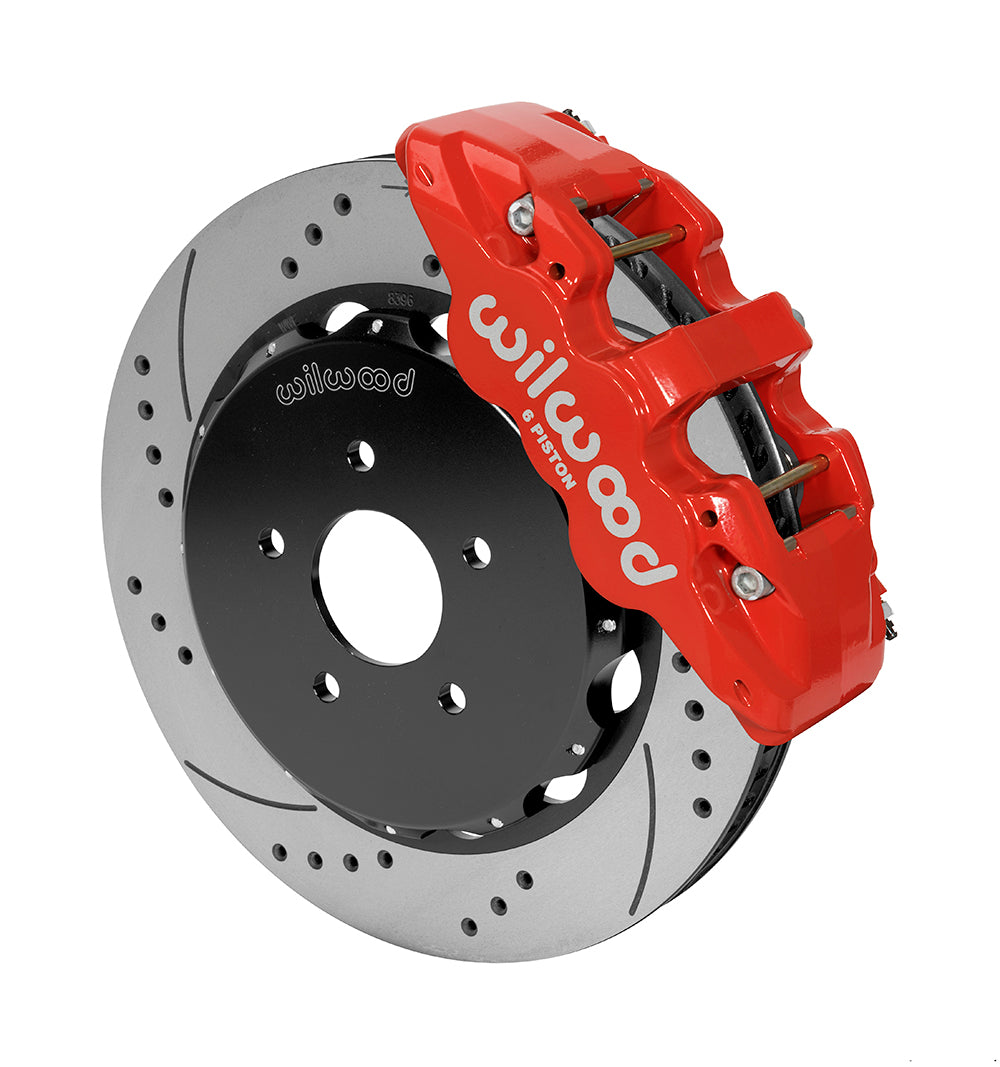

Wilwood 14-Inch Drilled Front Brake Conversion for Nissan 370Z, Infiniti G35 and G37, Red AERO6 Calipers

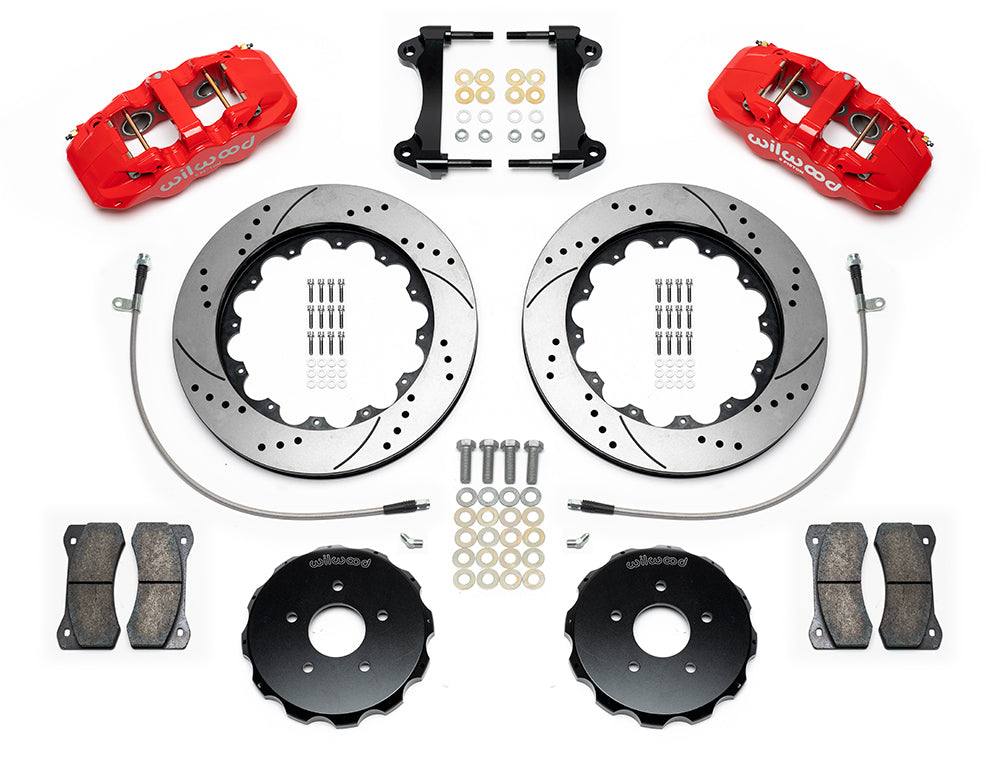

This Wilwood AERO6 kit is a front 14-inch disc upgrade for Nissan 370Z and Infiniti G35/G37. This generation-specific kit combines six-piston calipers, two-piece 14-inch rotors and supplied braided hoses. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering develops disc brake systems for motorsport, street-performance and specialized applications. Its calipers, rotors, master cylinders, valves, fittings and brake lines must be selected as parts of a complete, matched braking system.

Technical Details

• Manufacturer part number: 140-14819-DR.
• Match 5 x 4.5 in; 5 x 114.3 mm at the wheel mounting pattern(s) interface, with 0.520 in; 13.21 mm as the nominal hat stud-hole clearance diameter.
• The package excludes wheel hubs. Check the retained hubs against the specified mounting interface.
• Spec-37 Iron forms the vented rotors. Each disc has a srp drilled & slotted face, an outside diameter of 14.00 in; 355.6 mm and thickness of 1.25 in; 31.75 mm.
• Black E-Coat treatment covers the separate aluminum rotor hats.
• Red Powder Coat AERO6 calipers are supplied. Their forged aluminum bodies use the radial mounting arrangement with 6 stainless pistons in each caliper.
• Piston sizes listed by Wilwood are 1.62, 1.12, 1.12 inches, with BP-10 friction material in this kit.
• Hydraulic fitting interface on each caliper: 1/8-27 NPT.
• Published wheel minimum is 18 in; 457.2 mm, subject to the required inside-profile check. Rotor diameter is a separate measurement.
• The kit includes 220-11590 braided hydraulic lines, listed at 24.00 in. Verify the chassis connection on the actual application.
• Application-specific mounting hardware is supplied. Provide or retain the correct spindle, master cylinder and brake booster separately.
• Package quantity is one application-specific brake kit.

Fitment & Compatibility

Match 2009–2013 370Z with/without Sport Package, 2007 G35 four-door/2008 G35 front-caliper type, and each listed 2008–2013 G37 body/brake package. A model name alone does not resolve these distinctions. DS-1258 requires dust-shield cutting. Models covered: G35, G37 and 370Z. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

For fitment assistance, provide PMB Performance with the existing brake configuration and measured mounting/wheel details. Our 20+ years of parts experience support checking the complete assembly rather than relying only on a model name.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
