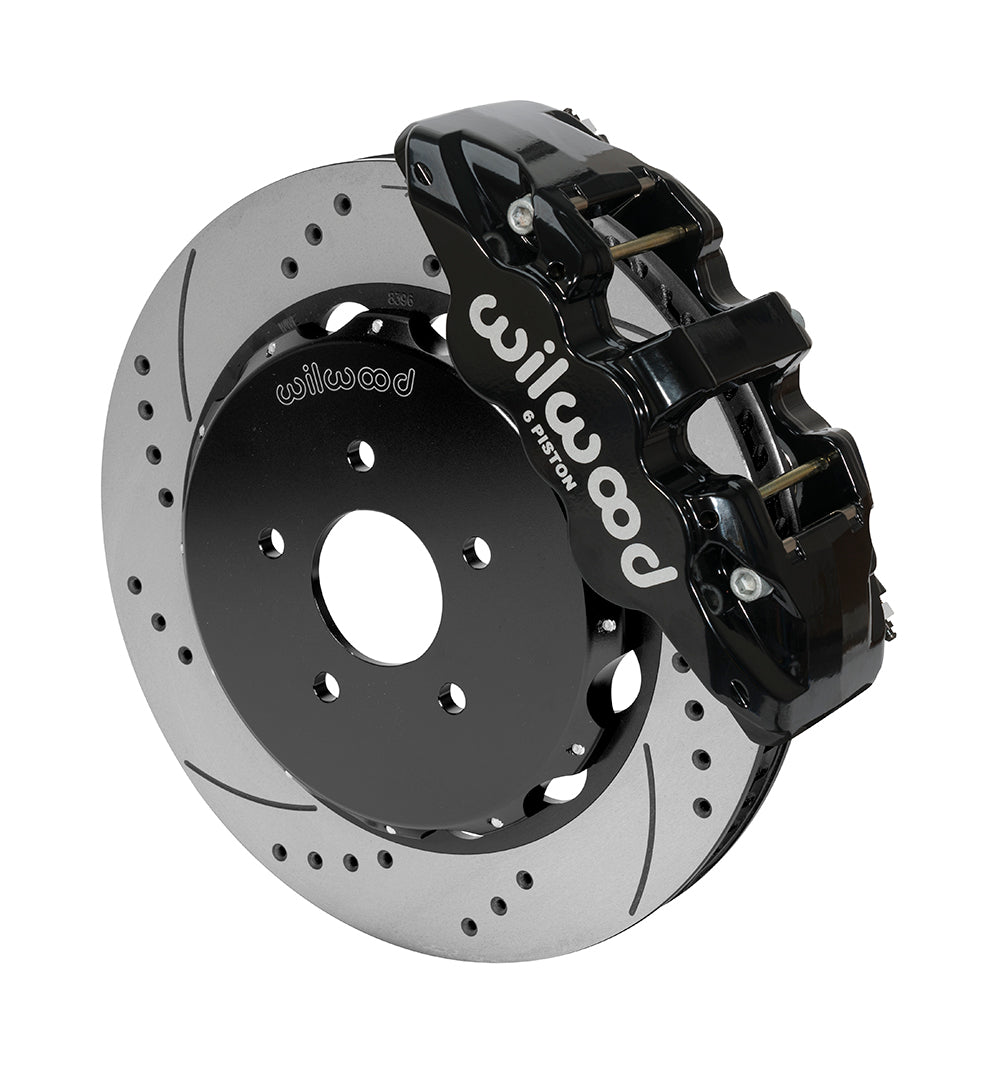

Wilwood Black AERO6 Front SRP Kit for Nissan 370Z/Infiniti G35/G37, 14-Inch Drilled/Slotted Rotors

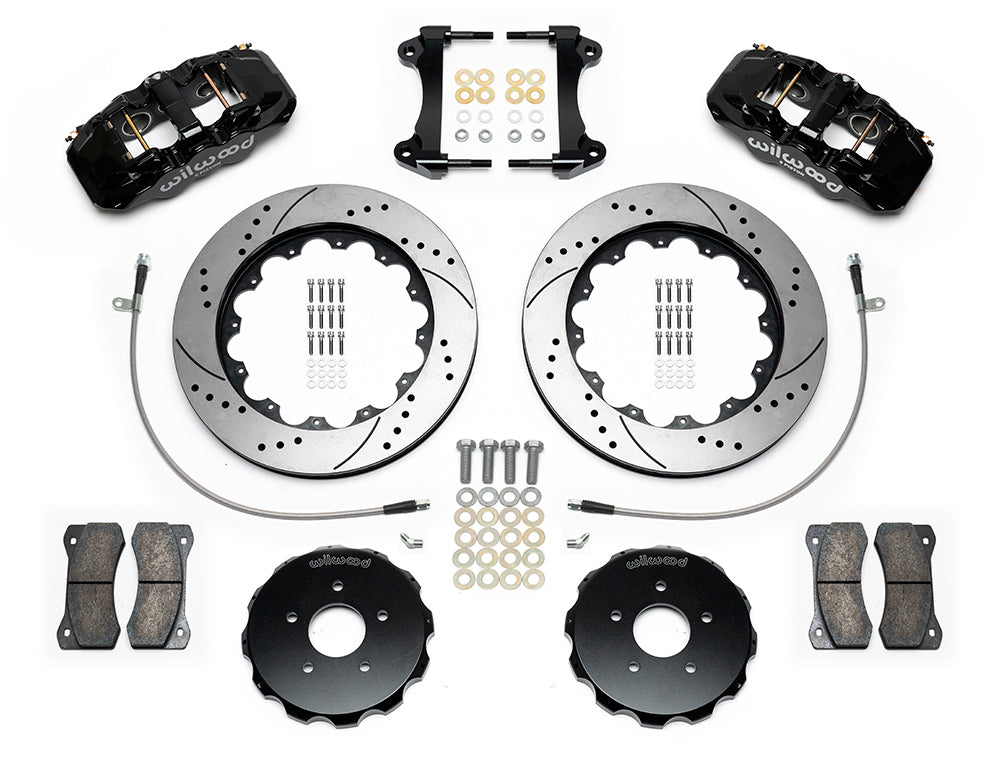

This Wilwood AERO6 kit is a front 14-inch disc upgrade for Nissan 370Z and Infiniti G35/G37. This generation-specific kit combines six-piston calipers, two-piece 14-inch rotors and supplied braided hoses. Wilwood Engineering designs complete disc brake systems as well as calipers, rotors, master cylinders, valves, fittings and brake lines. Established by Bill Wood in 1977 and based in Camarillo, California, it serves motorsport, street-performance and specialized applications; individual parts require a matched system.

Technical Details

• Manufacturer part number: 140-14819-D.
• Wheel mounting pattern(s) measure 5 x 4.5 in; 5 x 114.3 mm. The associated nominal hat stud-hole clearance diameter is 0.520 in; 13.21 mm.
• Retain the compatible existing wheel hubs, which are not included in this kit.
• The friction discs measure 14.00 in; 355.6 mm across and 1.25 in; 31.75 mm thick; srp drilled & slotted surfaces are used on vented Spec-37 Iron rotors.
• The rotor rings attach to separate aluminum hats with a Black E-Coat finish.
• Each caliper carries 6 pistons made from stainless. The AERO6 design uses forged aluminum, radial mounting and a Black Powder Coat finish.
• BP-10 pads are supplied; the listed bore dimensions are 1.62, 1.12, 1.12 inches.
• Connect the brake line to the specified 1/8-27 NPT inlet.
• Start wheel selection at 18 in; 457.2 mm; the barrel and spokes still need checking against the caliper-clearance template.
• Braided hose kit 220-11590 is supplied; the published line length is 24.00 in. Check chassis fittings and full-travel routing.
• This package includes its mounting fasteners. It excludes the spindles, master cylinder and booster.
• Sold as a complete kit for the specified front installation.

Fitment & Compatibility

Match 2009–2013 370Z with/without Sport Package, 2007 G35 four-door/2008 G35 front-caliper type, and each listed 2008–2013 G37 body/brake package. A model name alone does not resolve these distinctions. DS-1258 requires dust-shield cutting. Models covered: G35, G37 and 370Z. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
