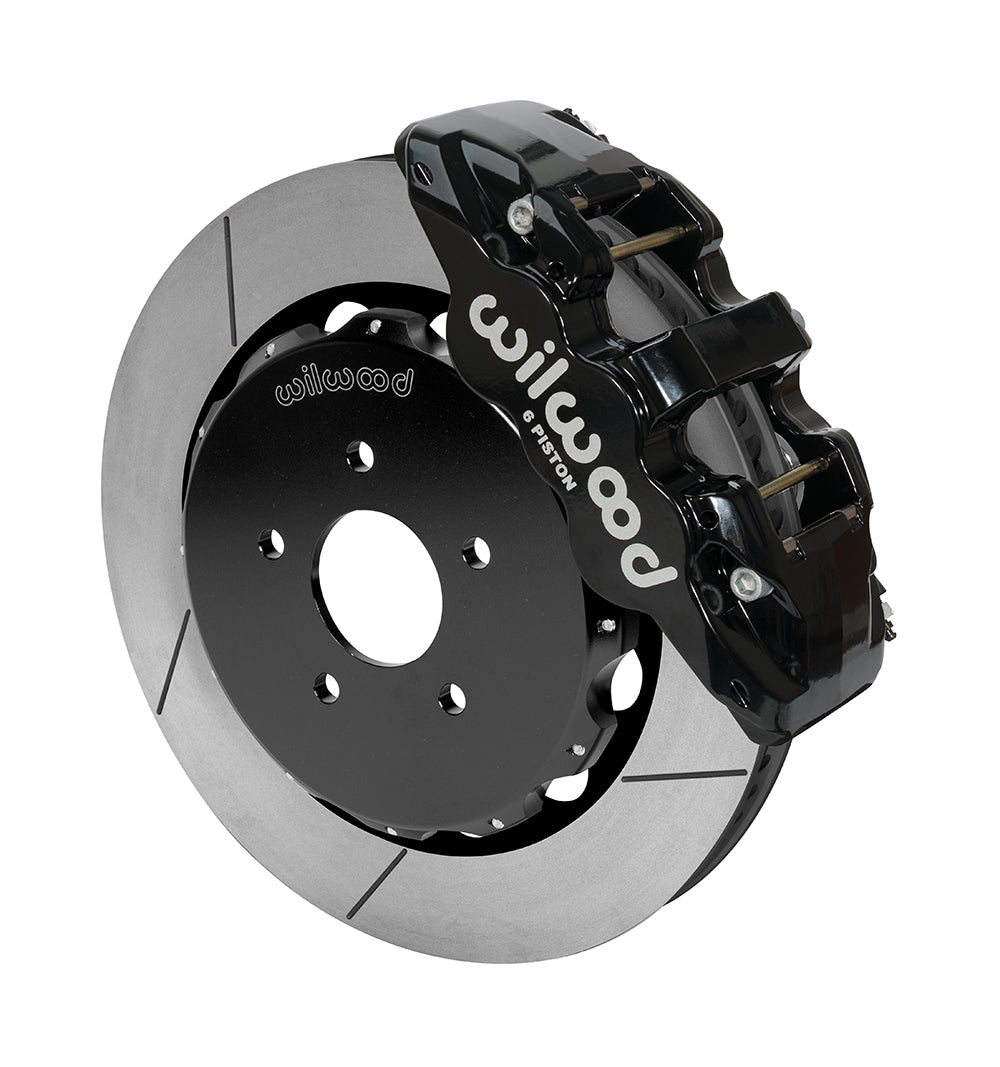

Wilwood Nissan 370Z and Infiniti G35/G37 Front Brake Upgrade, Black AERO6 Calipers with 14-Inch Slotted Rotors

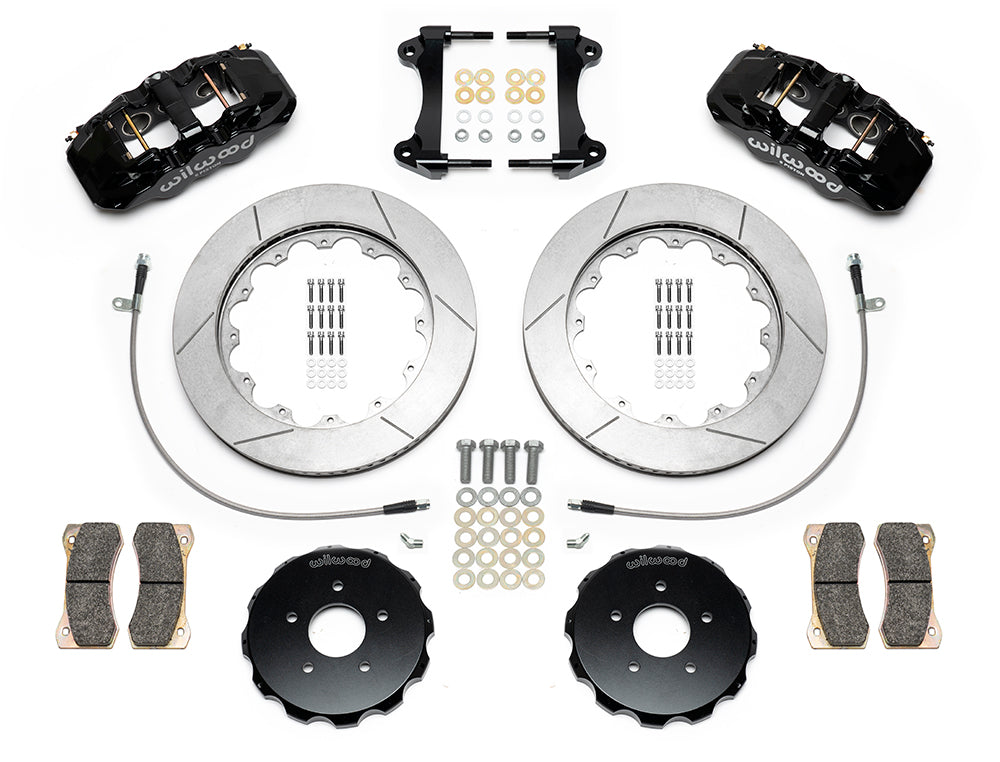

This Wilwood AERO6 kit is a front 14-inch disc upgrade for Nissan 370Z and Infiniti G35/G37. This generation-specific kit combines six-piston calipers, two-piece 14-inch rotors and supplied braided hoses. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake systems and components. Its motorsport, street-performance and specialized range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines, with compatibility assessed across the complete braking system.

Technical Details

• Manufacturer part number: 140-14819.
• Wheel mounting pattern(s): 5 x 4.5 in; 5 x 114.3 mm; nominal hat stud-hole clearance diameter: 0.520 in; 13.21 mm.
• No wheel hubs are supplied; use the documented existing hub arrangement.
• Rotor outside diameter: 14.00 in; 355.6 mm; thickness: 1.25 in; 31.75 mm. Construction is vented Spec-37 Iron, with gt slotted faces.
• Separate rotor hats: aluminum, finished in Black E-Coat.
• Caliper specification: AERO6; 6 stainless pistons per caliper, forged aluminum body and radial mounting. Finish: Black Powder Coat.
• Published piston bores: 1.62, 1.12, 1.12 inches. Supplied pad compound: BP-20.
• Caliper hydraulic inlet: 1/8-27 NPT.
• Minimum nominal wheel diameter: 18 in; 457.2 mm. The actual inner profile must pass the kit clearance drawing.
• Included braided flexlines: kit 220-11590, with 24.00 in hose length. Confirm fitting compatibility and routing.
• Mounting hardware is included; spindles, master cylinder and brake booster are not supplied.
• Quantity: one brake kit for the stated axle/application.

Fitment & Compatibility

Match 2009–2013 370Z with/without Sport Package, 2007 G35 four-door/2008 G35 front-caliper type, and each listed 2008–2013 G37 body/brake package. A model name alone does not resolve these distinctions. DS-1258 requires dust-shield cutting. Models covered: G35, G37 and 370Z. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

PMB Performance brings 20+ years of parts and fitment experience to brake-system selection. Share the actual spindle or axle details, existing brake package and wheel measurements if you need help confirming this configuration.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
