Wilwood Thermlock AERO6-ST Road-Race Front Kit for Nissan 350Z and Infiniti G35, 14-Inch Dynamic GT Discs

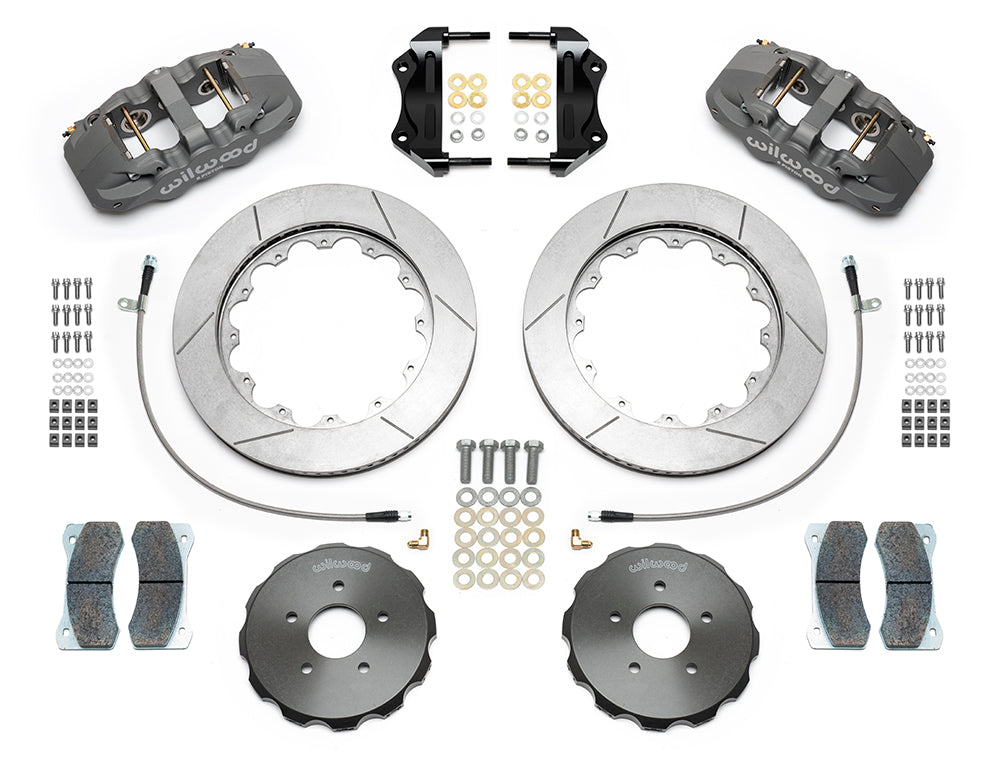

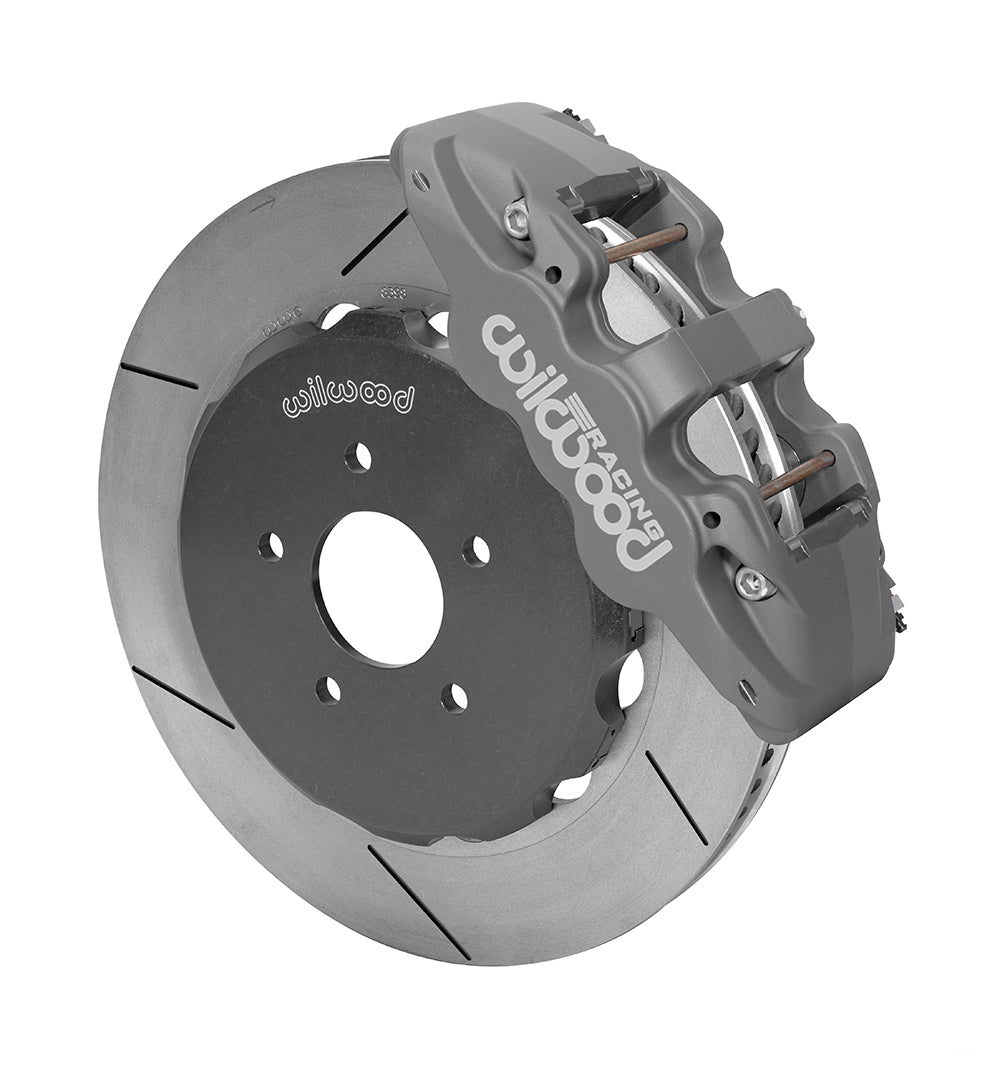

This Wilwood AERO6-ST kit is a front road-race conversion for Nissan 350Z and Infiniti G35 Race Cars. Thermlock pistons, 20 mm BP-35 race pads and dynamic-mount 14-inch GT rotors are selected for sustained circuit temperatures. The kit belongs to Wilwood Engineering's range of disc brake systems and components for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California, and produces calipers, rotors, master cylinders, valves, fittings and brake lines for complete brake-system planning.

Technical Details

• Manufacturer part number: 140-14816.
• The specified radial caliper is an AERO6-ST. It combines a Type III Anodize forged aluminum body with 6 pistons per unit; the published piston material is Thermlock.
• When planning the line connection, account for the 1/8-27 NPT caliper inlet.
• Bores and friction material: 1.62, 1.12, 1.12 inches, with BP-35 pads supplied for the specified calipers.
• The vented discs have gt slotted friction surfaces and Spec-37 Iron construction. Nominal dimensions are 1.25 in; 31.75 mm through the braking section and 14.00 in; 355.6 mm at the outside edge.
• Aluminum hats with Type III Anodize finish complete the two-piece rotor assembly.
• The nominal hat stud-hole clearance diameter is 0.520 in; 13.21 mm; the matching wheel mounting pattern(s) are 5 x 4.5 in; 5 x 114.3 mm. These describe different aspects of the attachment.
• Use the specified original or compatible existing hubs. The kit contains no wheel hubs.
• The supplied hardware mounts the specified brake package. It does not include replacement spindles, a brake booster or a master cylinder.
• Supplied line kit 220-9196 provides the braided brake hoses; the stated length is 23.00 in. Verify both ends and clearance through full travel.
• The caliper package calls for at least the published 18 in; 457.2 mm wheel diameter, plus sufficient spoke and inner-barrel clearance.
• This is a kit listing; one package contains the brake components described above.

Fitment & Compatibility

Confirm the listed 2003–2009 350Z brake option or G35 year/RWD/body configuration before ordering. DS-1257 requires dust-shield cutting. Some 18-inch wheels may fit, but check the exact drawing rather than treating the nominal diameter as clearance approval. Models covered: G35 and 350Z. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

Use the included high-temperature race pads for circuit conditions; extended low-temperature operation causes premature rotor and pad wear.

Kit may fit some 18" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

PMB Performance has more than 20 years of experience with parts and fitment. We can help review the specified kit against your vehicle's actual spindle, axle or existing brake components and wheel-clearance information.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
