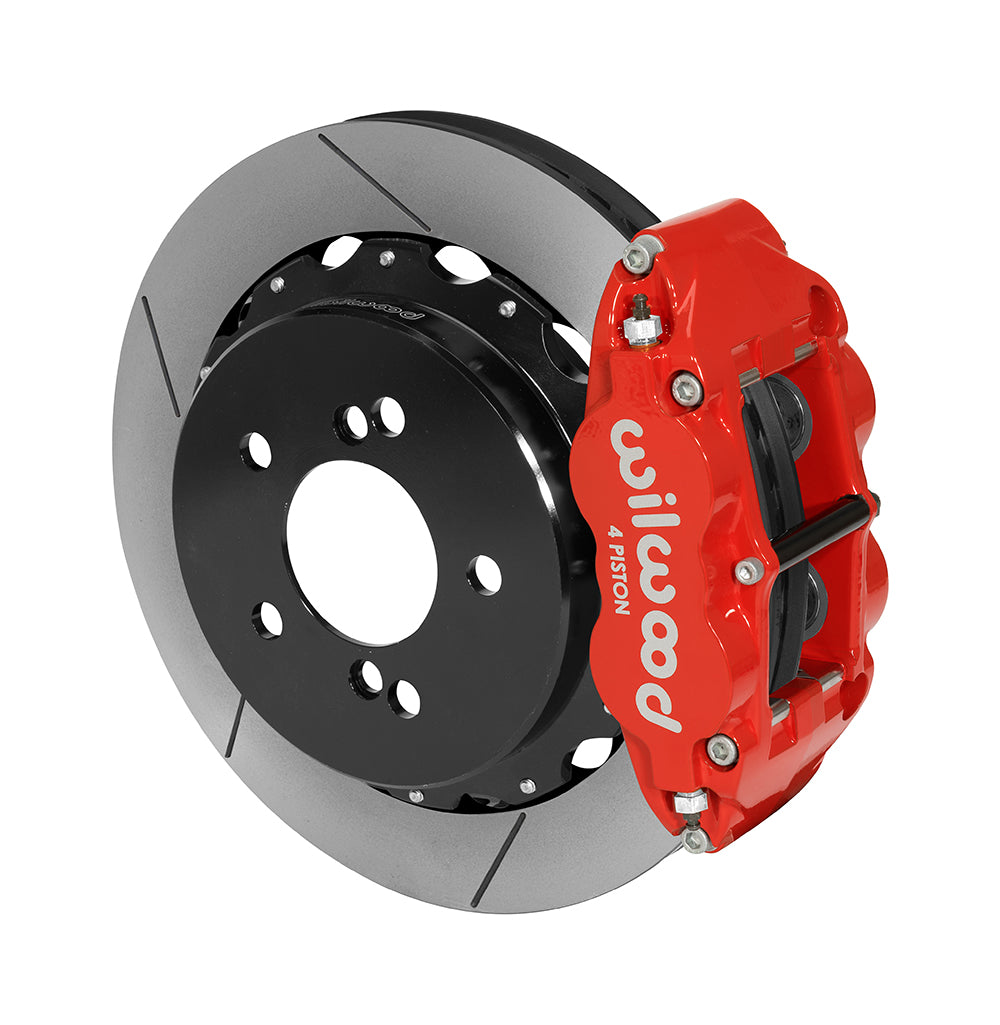

Wilwood Rear GT-Slotted Rotor Package with Red Superlite 4R Calipers for BMW E46 M3 (2001–2006), Factory Parking Retained

This Wilwood Superlite 4R kit is a rear disc upgrade retaining factory parking brakes for BMW M3 E46 2001–2006. Four-piston Superlite 4R calipers and 12.88-inch rotors use parking-brake hats designed around the existing BMW mechanism. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake systems and components. Its motorsport, street-performance and specialized range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines, with compatibility assessed across the complete braking system.

Technical Details

• Manufacturer part number: 140-14752-R.
• Rotor outside diameter: 12.88 in; 327.15 mm; thickness: 1.10 in; 27.94 mm. Construction is vented Spec-37 Iron, with gt slotted faces.
• Caliper specification: Superlite 4R; 4 stainless pistons per caliper, forged aluminum body and radial mounting. Finish: Red Powder Coat.
• Published piston bores: 1.25, 1.25 inches. Supplied pad compound: BP-20.
• Caliper hydraulic inlet: 1/8-27 NPT.
• Wheel mounting pattern(s): 5 X 4.72 in; 5 X 119.89 mm; nominal hat stud-hole clearance diameter: 0.610 in; 15.49 mm.
• Separate rotor hats: aluminum, finished in Black E-Coat.
• No wheel hubs are supplied; use the documented existing hub arrangement.
• Minimum nominal wheel diameter: 17 in; 431.8 mm. The actual inner profile must pass the kit clearance drawing.

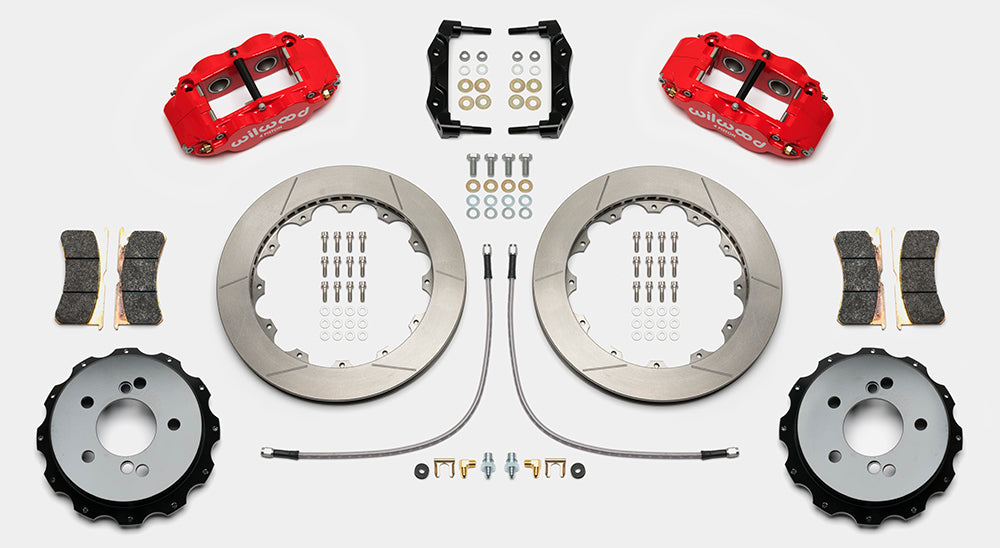

• Mounting hardware is included; spindles, master cylinder and brake booster are not supplied.
• Included braided flexlines: kit 220-14759, with 20.00 in hose length. Confirm fitting compatibility and routing.
• Quantity: one brake kit for the stated axle/application.

Fitment & Compatibility

Match the listed 2001–2006 E46 M3 rear assembly. The original parking brake, OE master-cylinder output and ABS functions are retained for the documented installation. DS-1252 requires dust-shield trimming and bracket-bolt clearance notches; existing parking shoes/cables remain in service. Models covered: M3. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

PMB Performance brings 20+ years of parts and fitment experience to brake-system selection. Share the actual spindle or axle details, existing brake package and wheel measurements if you need help confirming this configuration.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
