Wilwood Red Superlite Rear Brakes for BMW M3 E46 (2001–2006), SRP Rotors & Included Braided Hoses

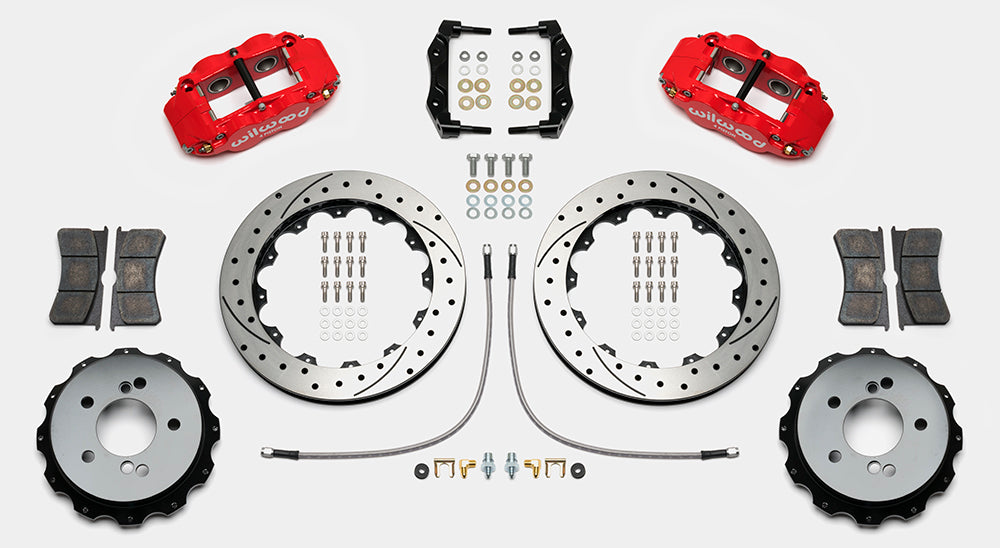

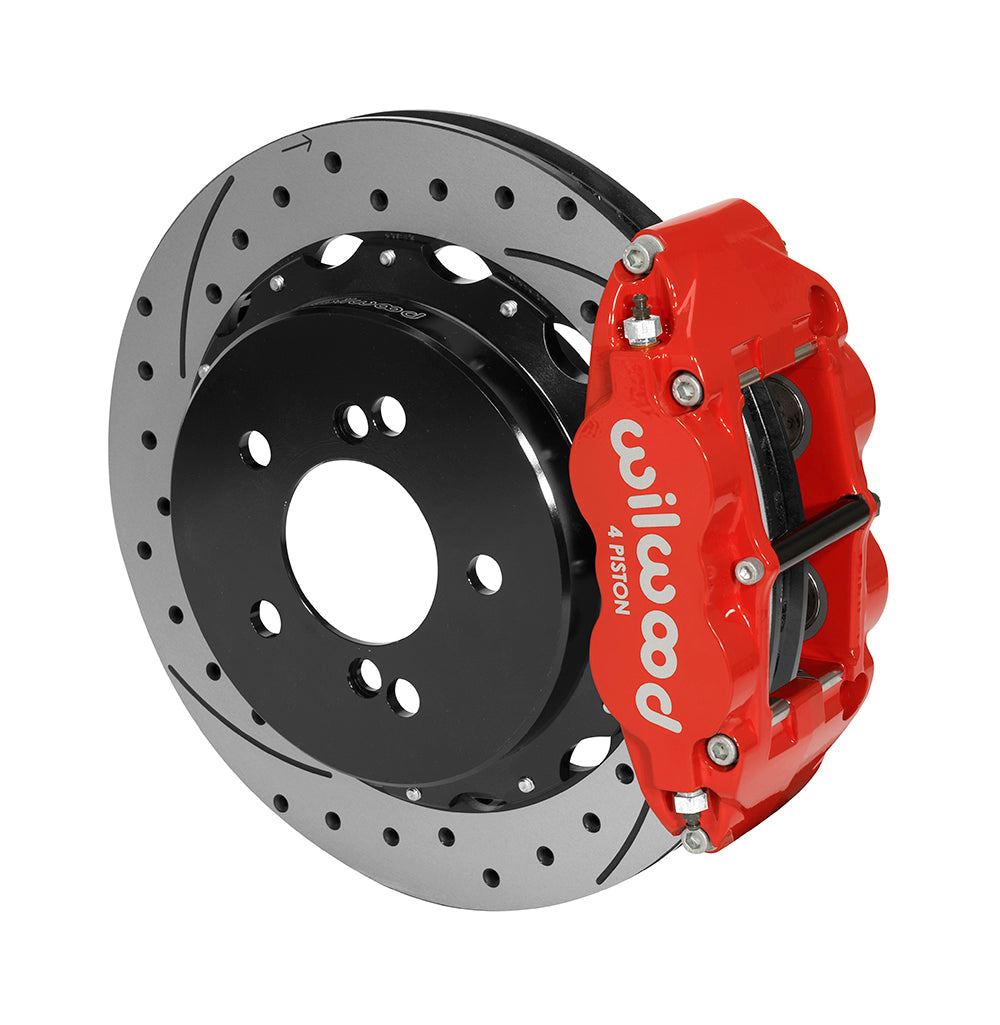

This Wilwood Superlite 4R kit is a rear disc upgrade retaining factory parking brakes for BMW M3 E46 2001–2006. Four-piston Superlite 4R calipers and 12.88-inch rotors use parking-brake hats designed around the existing BMW mechanism. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. The manufacturer supplies disc brake systems for motorsport, street-performance and specialized applications, including calipers, rotors, master cylinders, valves, fittings and brake lines that must work together as a complete system.

Technical Details

• Manufacturer part number: 140-14752-DR.
• The specified radial caliper is a Superlite 4R. It combines a Red Powder Coat forged aluminum body with 4 pistons per unit; the published piston material is stainless.
• Bores and friction material: 1.25, 1.25 inches, with BP-10 pads supplied for the specified calipers.
• The vented discs have srp drilled & slotted friction surfaces and Spec-37 Iron construction. Nominal dimensions are 1.10 in; 27.94 mm through the braking section and 12.88 in; 327.15 mm at the outside edge.
• Aluminum hats with Black E-Coat finish complete the two-piece rotor assembly.
• Use the specified original or compatible existing hubs. The kit contains no wheel hubs.
• The nominal hat stud-hole clearance diameter is 0.610 in; 15.49 mm; the matching wheel mounting pattern(s) are 5 X 4.72 in; 5 X 119.89 mm. These describe different aspects of the attachment.
• When planning the line connection, account for the 1/8-27 NPT caliper inlet.
• The supplied hardware mounts the specified brake package. It does not include replacement spindles, a brake booster or a master cylinder.
• The caliper package calls for at least the published 17 in; 431.8 mm wheel diameter, plus sufficient spoke and inner-barrel clearance.
• Supplied line kit 220-14759 provides the braided brake hoses; the stated length is 20.00 in. Verify both ends and clearance through full travel.
• This is a kit listing; one package contains the brake components described above.

Fitment & Compatibility

Match the listed 2001–2006 E46 M3 rear assembly. The original parking brake, OE master-cylinder output and ABS functions are retained for the documented installation. DS-1252 requires dust-shield trimming and bracket-bolt clearance notches; existing parking shoes/cables remain in service. Models covered: M3. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

PMB Performance has more than 20 years of experience with parts and fitment. We can help review the specified kit against your vehicle's actual spindle, axle or existing brake components and wheel-clearance information.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
