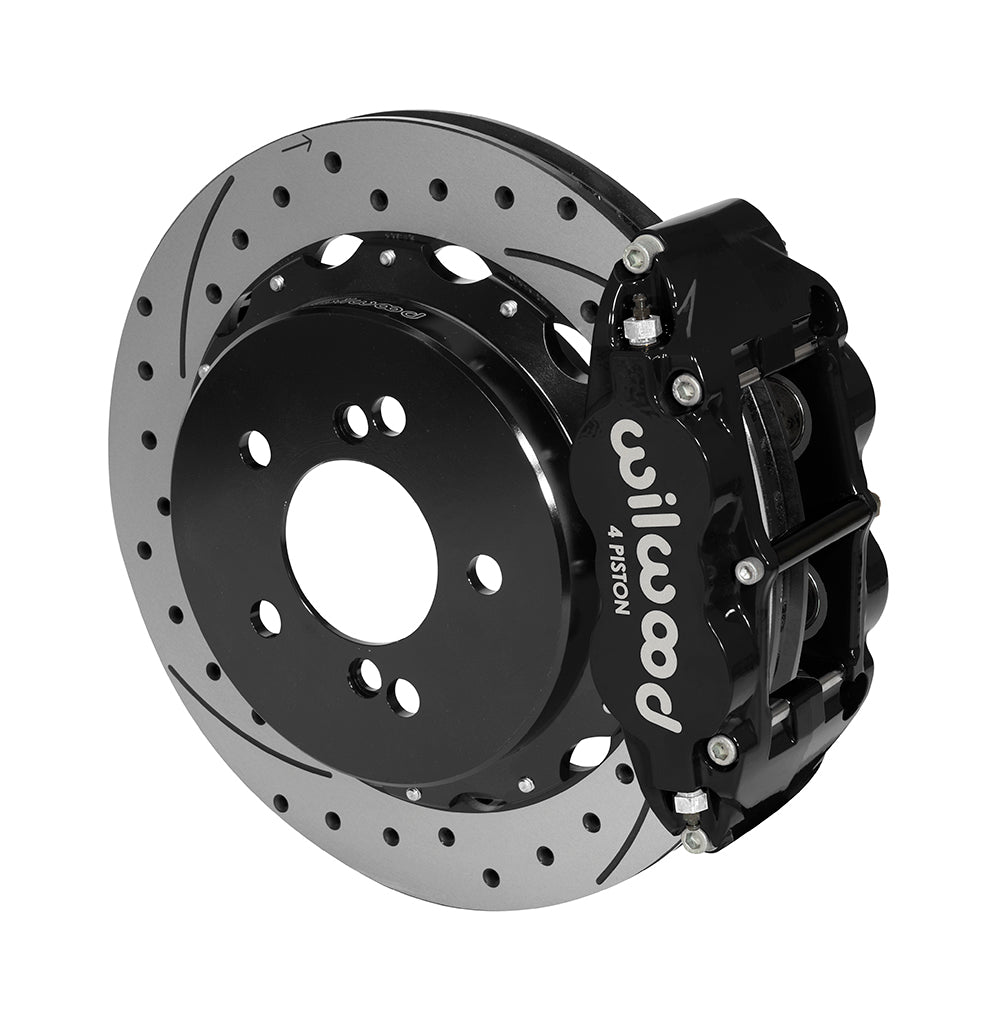

Wilwood 12.88-Inch Drilled Rear Brake Conversion for 2001–2006 BMW M3 E46 with Black Superlite Calipers

This Wilwood Superlite 4R kit is a rear disc upgrade retaining factory parking brakes for BMW M3 E46 2001–2006. Four-piston Superlite 4R calipers and 12.88-inch rotors use parking-brake hats designed around the existing BMW mechanism. From its Camarillo, California base, Wilwood Engineering designs disc brake systems for motorsport, street-performance and specialized needs. Founded in 1977 by Bill Wood, its range covers calipers, rotors, master cylinders, valves, fittings and brake lines chosen to work within a complete brake system.

Technical Details

• Manufacturer part number: 140-14752-D.
• Match the Superlite 4R caliper architecture when selecting related components: radial attachment, 4 stainless pistons, forged aluminum body and Black Powder Coat finish.
• Pad selection is BP-10; piston-bore measurements are 1.25, 1.25 inches. Confirm those values for any system changes.
• For rotor replacement, match all four specifications: 12.88 in; 327.15 mm outside diameter, 1.10 in; 27.94 mm thickness, Spec-37 Iron and the srp drilled & slotted surface. Rotor construction: vented.
• For the rotor-to-hub interface, the kit supplies separate aluminum hats finished in Black E-Coat.
• The kit does not supply replacement hubs; confirm the dimensions of those already installed.
• Attachment dimensions to confirm are 5 X 4.72 in; 5 X 119.89 mm for the wheel mounting pattern(s) and 0.610 in; 15.49 mm for the nominal hat stud-hole clearance diameter.
• Use a compatible hose adapter for the caliper's 1/8-27 NPT inlet.

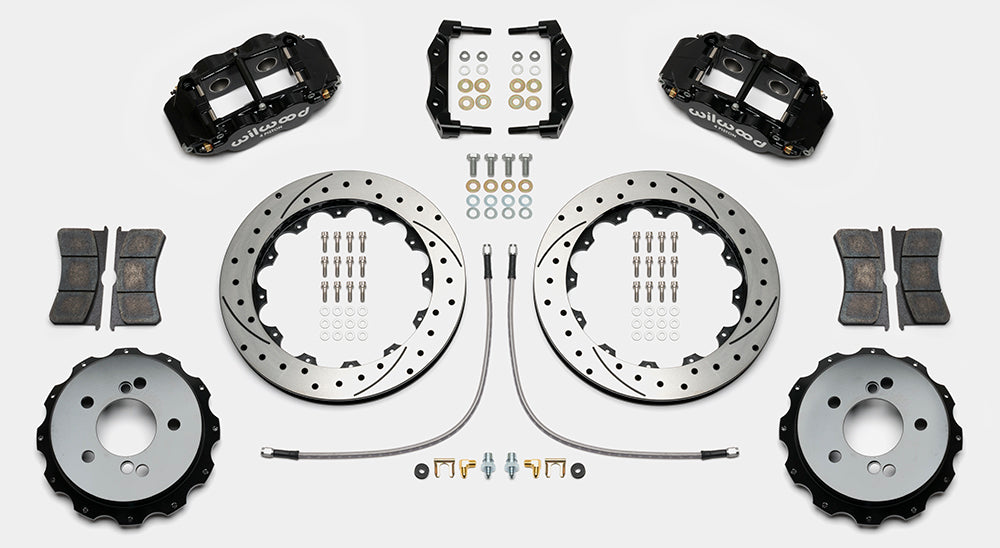

• Included installation parts cover the kit mounting hardware, with spindles, brake booster and master cylinder excluded.
• Before ordering wheels, check the full inside profile against the drawing and the published 17 in; 431.8 mm minimum diameter.
• The braided flexline package is 220-14759, supplied in a listed 20.00 in length. Inspect end connections and routing before use.
• One brake kit is supplied for the specified application and axle position.

Fitment & Compatibility

Match the listed 2001–2006 E46 M3 rear assembly. The original parking brake, OE master-cylinder output and ABS functions are retained for the documented installation. DS-1252 requires dust-shield trimming and bracket-bolt clearance notches; existing parking shoes/cables remain in service. Models covered: M3. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

For fitment assistance, provide PMB Performance with the existing brake configuration and measured mounting/wheel details. Our 20+ years of parts experience support checking the complete assembly rather than relying only on a model name.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
