Wilwood Front GT-Slotted 14-Inch Brake Package for 2001–2006 BMW E46 M3 with Red Calipers & BP-20 Pads

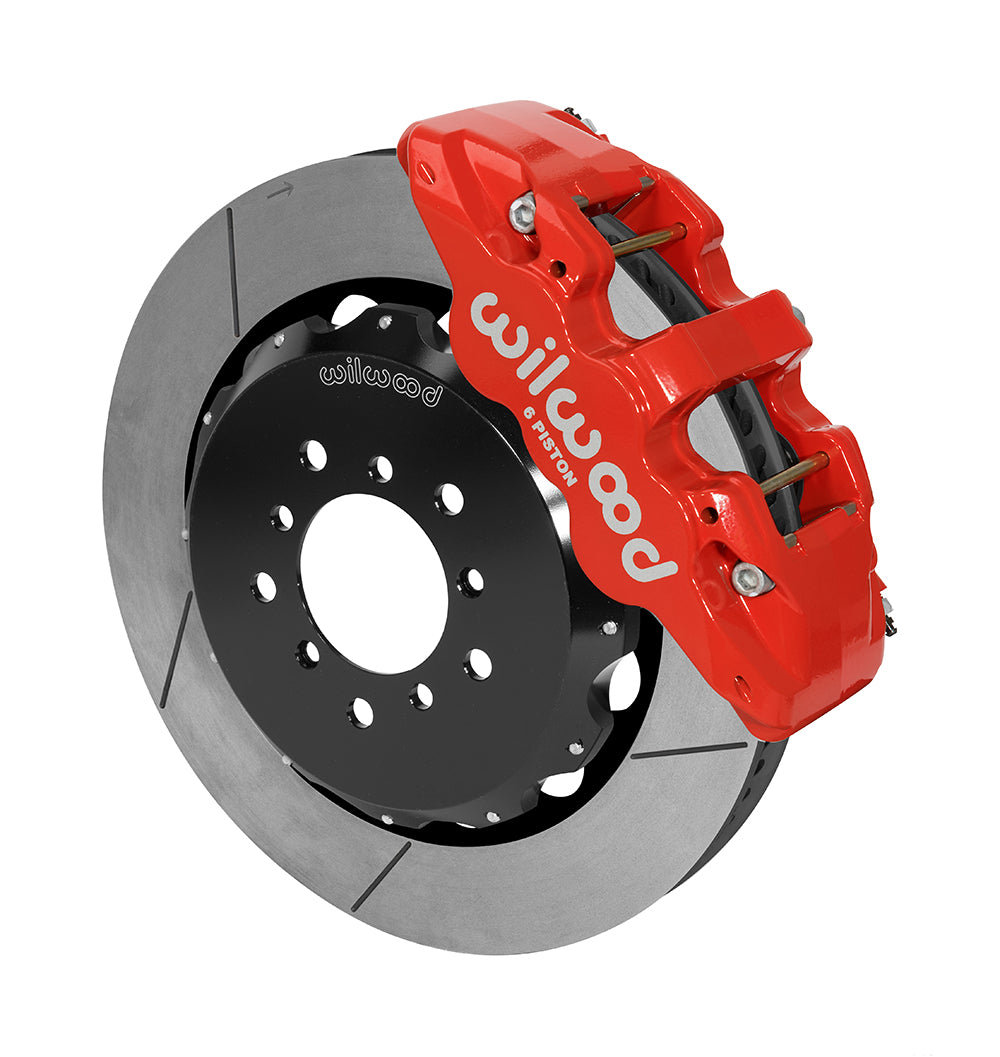

This Wilwood AERO6 kit is a front disc upgrade for 2001–2006 BMW E46 M3. Six-piston AERO6 calipers, 14-inch Spec-37 rotor rings and application-specific aluminum hats retain the verified factory brake-system interfaces. Wilwood Engineering began in 1977 with founder Bill Wood and is based in Camarillo, California. It designs disc brake systems and components for racing, performance-road and specialized use, from calipers and rotors to master cylinders, valves, fittings and brake lines; the complete system determines component selection.

Technical Details

• Manufacturer part number: 140-14751-R.
• At each caliper, the AERO6 configuration provides 6 pistons in stainless, housed in forged aluminum. The caliper attaches by radial mounting and is finished in Red Powder Coat.
• For hydraulic matching, use the published 1.62, 1.12, 1.12-inch piston bores. Pads are the BP-20 compound.
• This version supplies gt slotted rotors in Spec-37 Iron. Their 14.00 in; 355.6 mm diameter and 1.25 in; 31.75 mm section are matched to the listed vented brake package.
• Rotor hats are individual aluminum components with Black E-Coat protection.
• Hub compatibility is required for installation. No new wheel hubs are included.
• The mounting interface uses 5 X 4.72 in; 5 X 119.89 mm; verify the nominal hat stud-hole clearance diameter of 0.520 in; 13.21 mm separately from the bolt circle.
• Inlet-port specification for hose/fitting selection is 1/8-27 NPT.

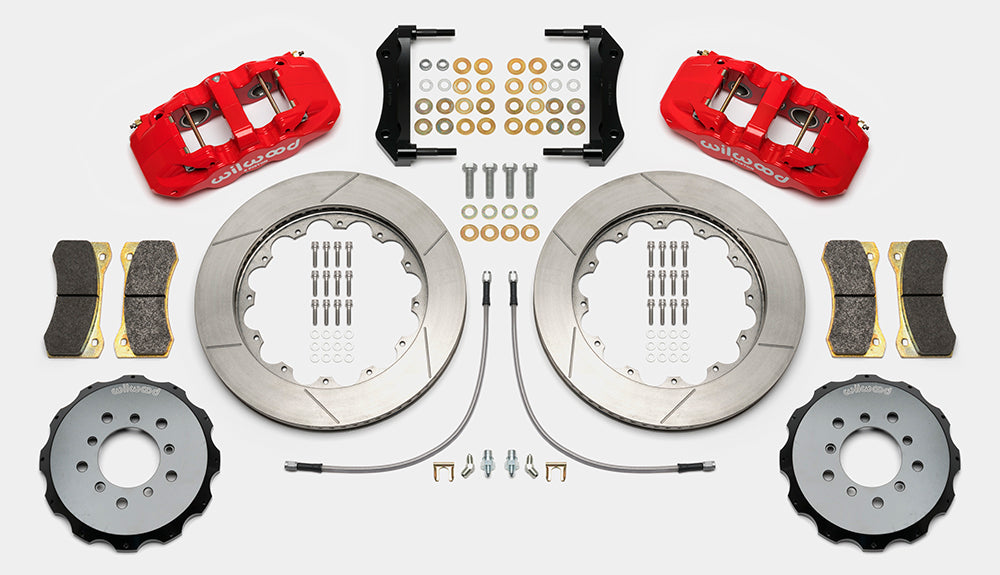

• The listed brackets and fasteners belong to the kit. Spindles and the master-cylinder/booster assembly are outside the package.
• Wheel clearance must be measured using the installation template; the manufacturer lists 18 in; 457.2 mm as the nominal minimum.
• For the hydraulic connection, supplied braided set 220-11983 has an 18.00-inch published hose length. Match the end fittings to the vehicle.
• Order quantity refers to one brake conversion kit, not an individual loose rotor or caliper.

Fitment & Compatibility

For the listed 2001–2006 E46 M3, match the original hub, register and factory spindle. DS-1251 requires front dust-shield cutting to clear the larger rotor. This kit does not establish fitment for other E46 models or generations. Models covered: M3. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

PMB Performance brings 20+ years of parts and fitment experience to brake-system selection. Share the actual spindle or axle details, existing brake package and wheel measurements if you need help confirming this configuration.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
