Wilwood Red AERO6 Front Brakes with SRP Rotors & Included Lines for BMW M3 E46 (2001–2006)

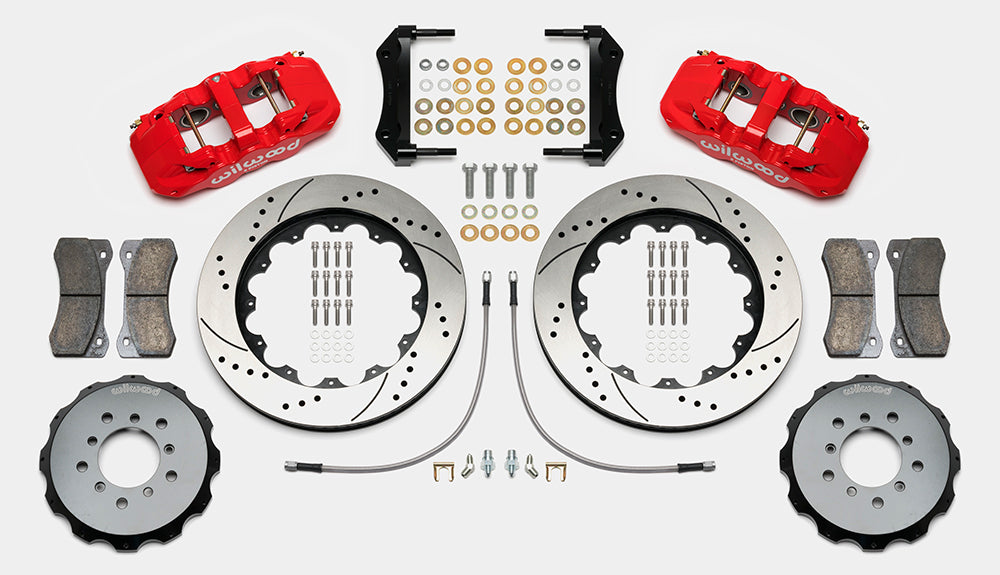

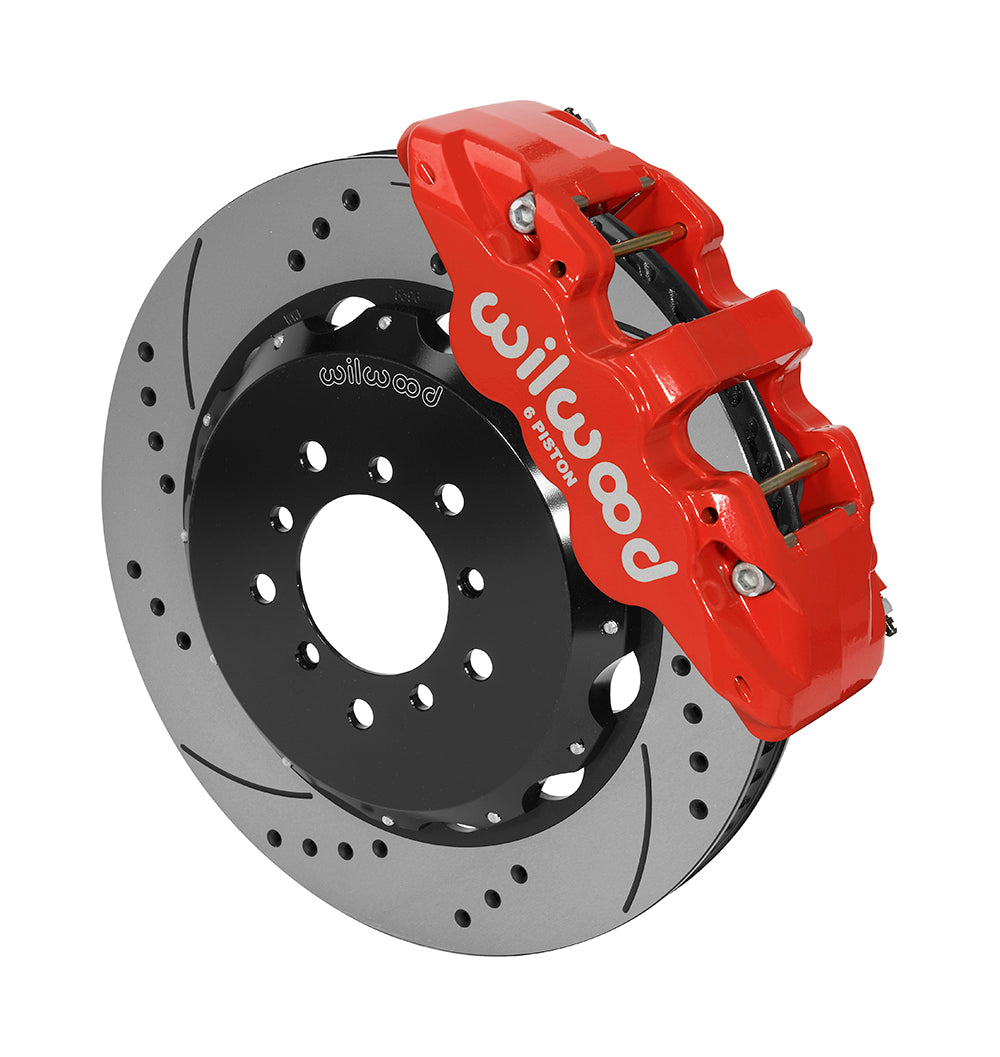

Give the documented E46 M3 front installation the red-caliper, drilled-and-slotted AERO6 configuration. Its 14.00-inch rotor diameter and 1.25-inch section are combined with separate aluminum hats, radial six-piston calipers and BP-10 pads. This SRP version differs from the slotted GT kit's pad selection; verify the components supplied for this exact configuration. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering develops disc brake systems for motorsport, street-performance and specialized applications. Its calipers, rotors, master cylinders, valves, fittings and brake lines must be selected as parts of a complete, matched braking system.

Technical Details

• Manufacturer part number: 140-14751-DR.
• 5 X 4.72 in; 5 X 119.89 mm is the listed wheel mounting pattern(s) dimension. Nominal hat stud-hole clearance diameter: 0.520 in; 13.21 mm.
• Existing verified wheel hubs remain in service; replacement hubs are not supplied.
• Friction surface and size: srp drilled & slotted; 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thickness. The rotor material is Spec-37 Iron in a vented design.
• This is a two-piece disc arrangement using aluminum hats in Black E-Coat.
• The calipers are AERO6 units with a Red Powder Coat exterior. A forged aluminum body locates 6 stainless pistons; attachment is radial mount.
• The matched pads use BP-10. Manufacturer bore figures for the caliper are 1.62, 1.12, 1.12 inches.
• The caliper accepts the listed 1/8-27 NPT hydraulic connection.
• Wheel minimum: 18 in; 457.2 mm. Confirm the complete wheel shape and mounting hardware clear the brake drawing.
• Flexible lines are provided as kit 220-11983; length is 18.00 in. Route them clear of suspension, wheels and rotors.
• No spindle, booster or master cylinder is included; the kit does contain mounting hardware for the stated installation.
• This listing supplies one kit for the documented brake configuration.

Fitment & Compatibility

Use this front kit on the listed 2001–2006 BMW E46 M3 hub and factory spindle. Retain the original hub, confirm its center register and lug-bolt clearances, and compare the chosen wheel with DS-1251 before ordering. The dust shield must be cut for the larger disc, preferably after removal as Wilwood instructs. This M3-specific application does not extend to other E46 chassis variants. Models covered: M3. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

PMB Performance has more than 20 years of experience with parts and fitment. We can help review the specified kit against your vehicle's actual spindle, axle or existing brake components and wheel-clearance information.
