Wilwood Front AERO6 Brake Kit for BMW E46 M3 (2001–2006), Black Calipers, 14-Inch GT Rotors & Braided Lines

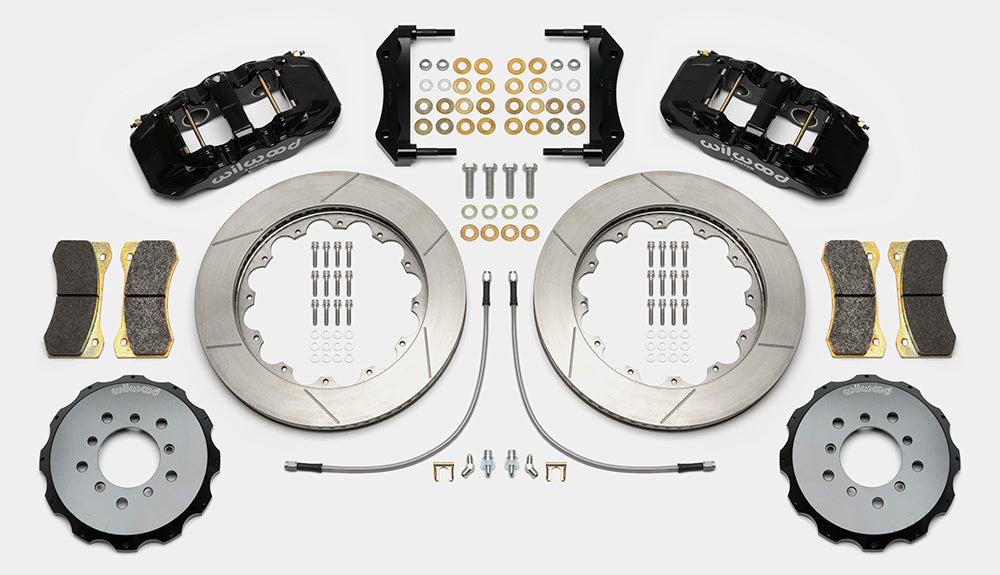

This Wilwood AERO6 kit is a front disc upgrade for 2001–2006 BMW E46 M3. Six-piston AERO6 calipers, 14-inch Spec-37 rotor rings and application-specific aluminum hats retain the verified factory brake-system interfaces. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake systems and components. Its motorsport, street-performance and specialized range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines, with compatibility assessed across the complete braking system.

Technical Details

• Manufacturer part number: 140-14751.
• Wheel mounting pattern(s) measure 5 X 4.72 in; 5 X 119.89 mm. The associated nominal hat stud-hole clearance diameter is 0.520 in; 13.21 mm.
• Retain the compatible existing wheel hubs, which are not included in this kit.
• The friction discs measure 14.00 in; 355.6 mm across and 1.25 in; 31.75 mm thick; gt slotted surfaces are used on vented Spec-37 Iron rotors.
• The rotor rings attach to separate aluminum hats with a Black E-Coat finish.

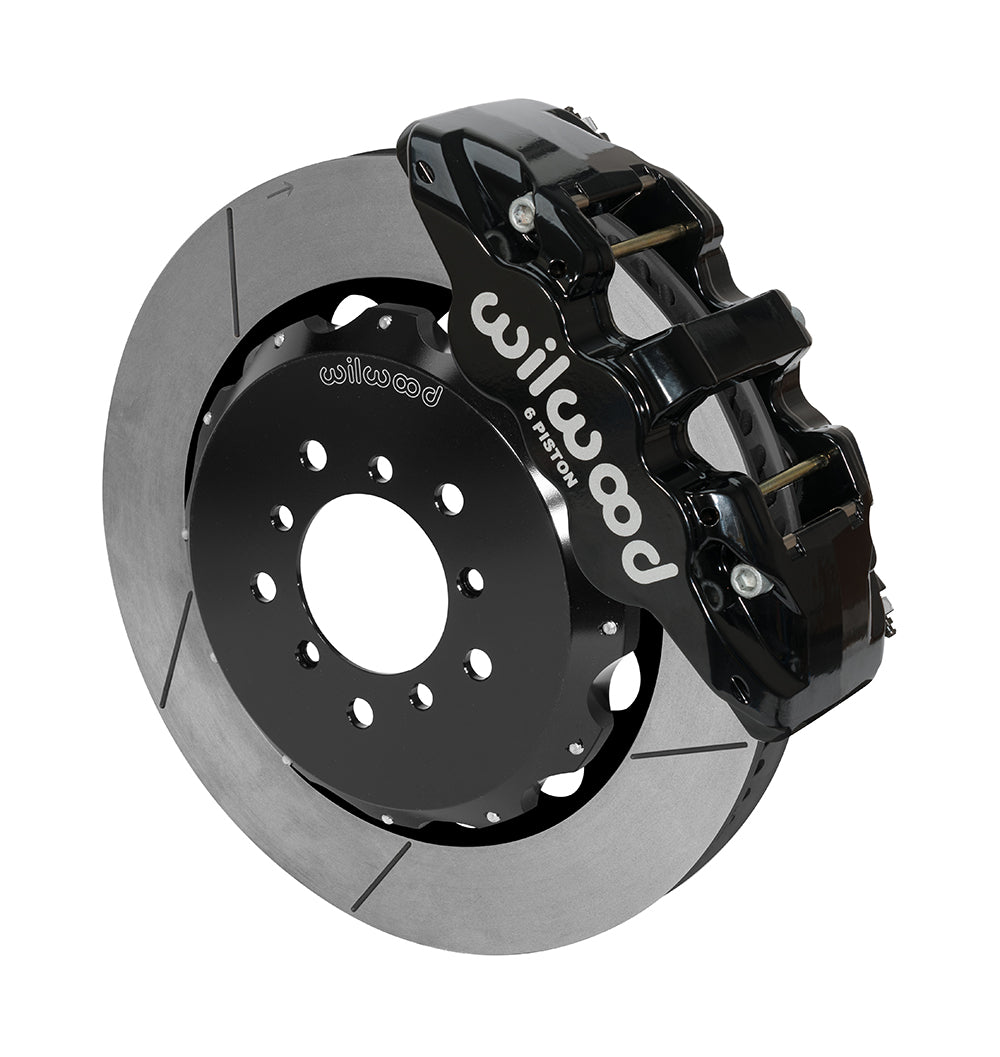

• Each caliper carries 6 pistons made from stainless. The AERO6 design uses forged aluminum, radial mounting and a Black Powder Coat finish.
• BP-20 pads are supplied; the listed bore dimensions are 1.62, 1.12, 1.12 inches.
• Connect the brake line to the specified 1/8-27 NPT inlet.
• Start wheel selection at 18 in; 457.2 mm; the barrel and spokes still need checking against the caliper-clearance template.
• Braided hose kit 220-11983 is supplied; the published line length is 18.00 in. Check chassis fittings and full-travel routing.
• This package includes its mounting fasteners. It excludes the spindles, master cylinder and booster.
• Sold as a complete kit for the specified front installation.

Fitment & Compatibility

For the listed 2001–2006 E46 M3, match the original hub, register and factory spindle. DS-1251 requires front dust-shield cutting to clear the larger rotor. This kit does not establish fitment for other E46 models or generations. Models covered: M3. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
