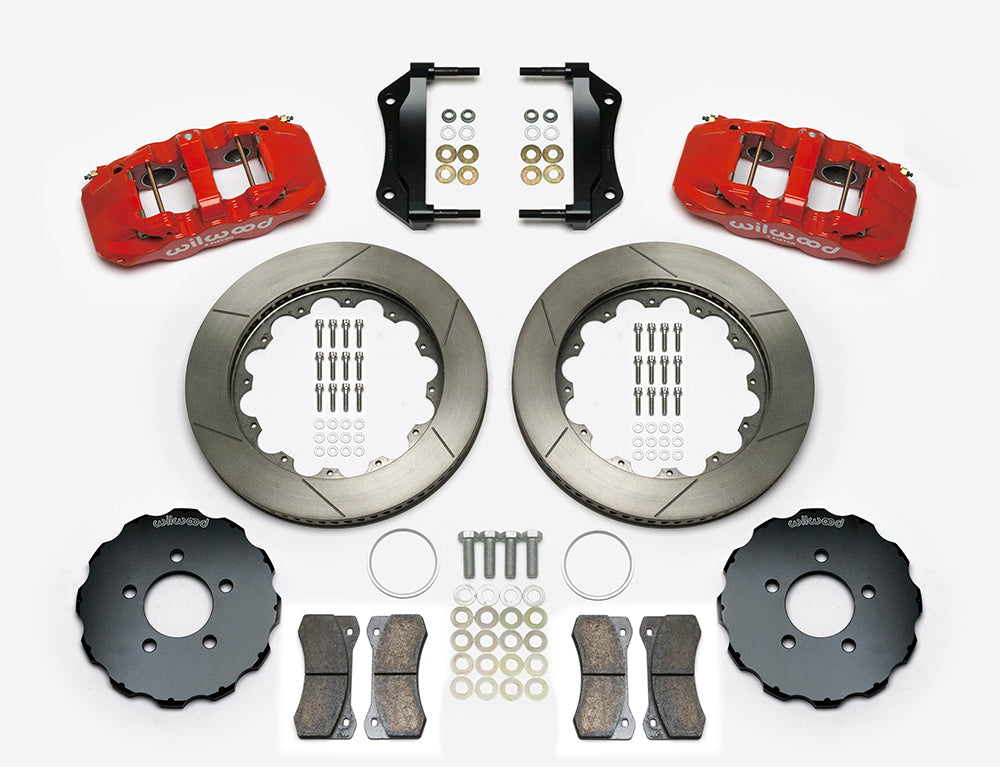

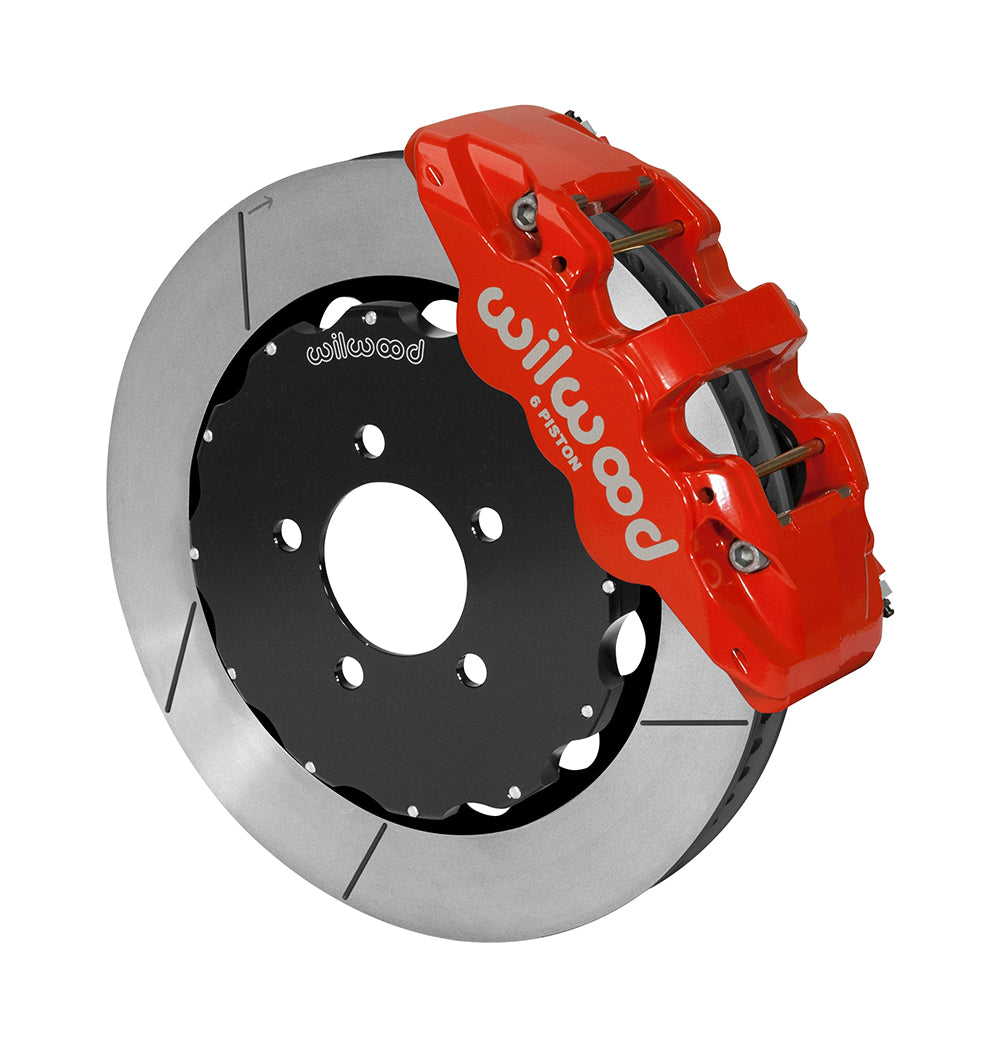

Wilwood Front Slotted-Rotor Package for Marauder, Grand Marquis, Crown Victoria & Town Car with Red Six-Piston AERO6 Calipers

This Wilwood AERO6 kit is a front 14-inch AERO6 upgrade for Crown Victoria/Town Car/Grand Marquis/Marauder. AERO6 calipers use the larger listed piston bores with 14 x 1.25-inch Spec-37 rotors. The kit belongs to Wilwood Engineering's range of disc brake systems and components for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California, and produces calipers, rotors, master cylinders, valves, fittings and brake lines for complete brake-system planning.

Technical Details

• Manufacturer part number: 140-14682-R.
• Wheel mounting pattern(s): 5 x 4.5 in; 5 x 114.3 mm; nominal hat stud-hole clearance diameter: 0.580 in; 14.73 mm.
• No wheel hubs are supplied; use the documented existing hub arrangement.
• Rotor outside diameter: 14.00 in; 355.6 mm; thickness: 1.25 in; 31.75 mm. Construction is vented Spec-37 Iron, with gt slotted faces.
• Separate rotor hats: aluminum, finished in Black E-Coat.
• Caliper specification: AERO6; 6 stainless pistons per caliper, forged aluminum body and radial mounting. Finish: Red Powder Coat.
• Published piston bores: 1.75, 1.38, 1.38 inches. Supplied pad compound: BP-10.
• Caliper hydraulic inlet: 1/8-27 NPT.
• Minimum nominal wheel diameter: 18 in; 457.2 mm. The actual inner profile must pass the kit clearance drawing.
• Hydraulic hoses are not included. Confirm the separate line kit, fitting sizes, length and routing. Separate reference: 220-14690.
• Mounting hardware is included; spindles, master cylinder and brake booster are not supplied.
• Quantity: one brake kit for the stated axle/application.

Fitment & Compatibility

For the listed 2003–2011 Crown Victoria, Lincoln Town Car and Mercury Grand Marquis, or 2003–2004 Marauder, verify the exact option/wheelbase row. DS-1242 calls out separate hose 220-14690 only for Crown Victoria. Confirm the correct lines for other models and check all wheel/spindle interfaces before purchase. Models covered: Crown Victoria, Town Car, Grand Marquis and Marauder. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

PMB Performance brings 20+ years of parts and fitment experience to brake-system selection. Share the actual spindle or axle details, existing brake package and wheel measurements if you need help confirming this configuration.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
